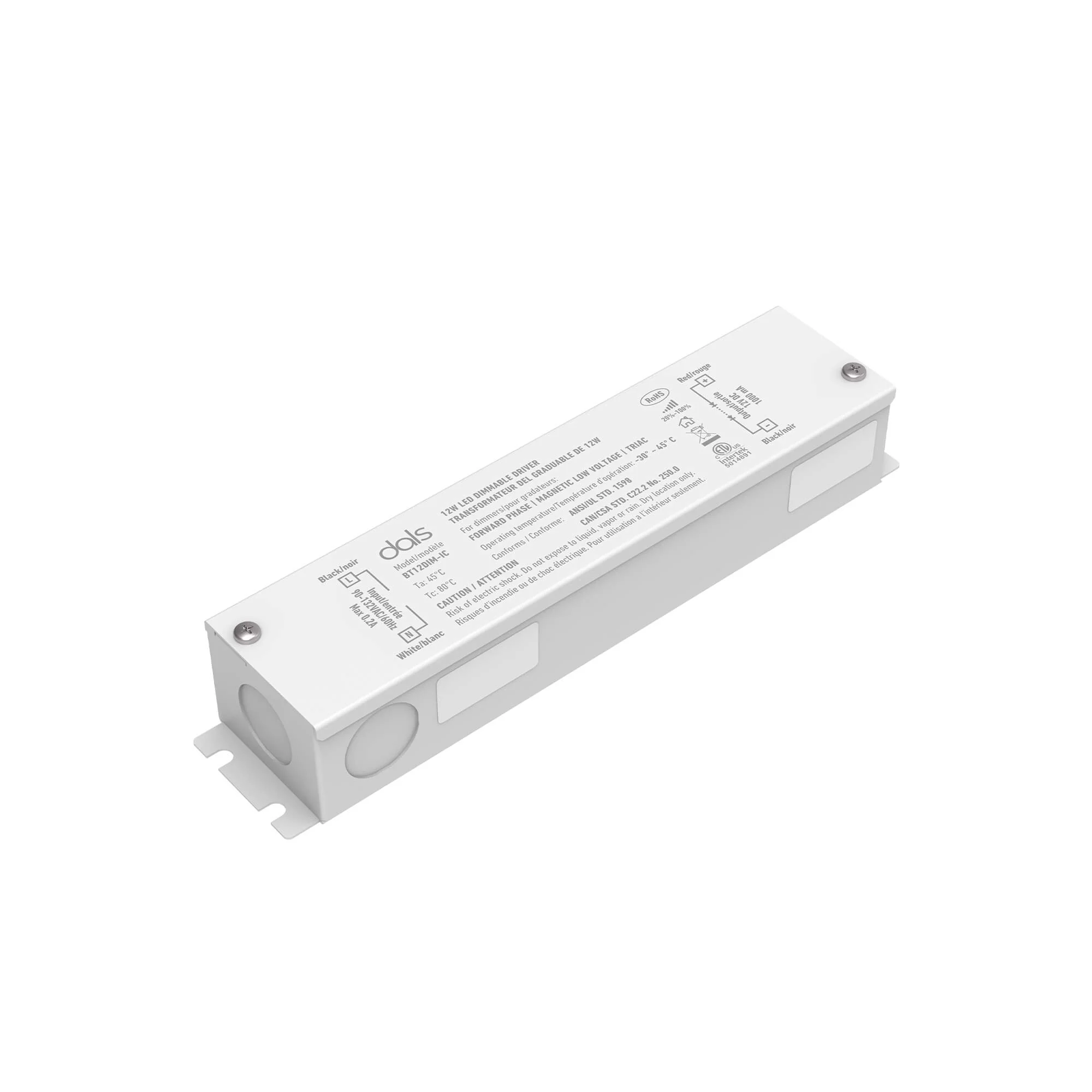

DALS Lighting 12W 12V DC Dimmable LED Hardwire driver, Model BT12DIM-IC*

Description

Dimming is made easy with our LED Dimmable Driver series. These products will allow you to find just the right amount of light based on the time of day your lighting fixtures are being used.

Compatible with the following products: SM-DIMSW, LINU12, SWIVLED12, SWIVLEDHP, 4001, 4001HP, 4002, 4002HP, 4005FR, 4005HP, 4006, 4006SQ and LEDRDP18

Features

• Constant voltage mode power supply
• AC-dimming supply (with TRIAC or ELV dimmer)
• Protection: short circuit / Over voltage
• Integrated junction box for hard wire installation
• Fully isolated metal case – Cooling by air convection
• 5 years warranty
• ETL certification
• Optimal dimming when used at 50% or more of total load
• Input voltage: 100VAC-230VAC, 50/60Hz
• Output voltage: 12V DC
• Load Range: 50% to 100%
• Operating temperature: -30°C to 45°C

Technical Information

Voltage: 120V - 12V
Driver Wattage: 12w
Dimming: ELV, Triac
Recommended Dimmers: Dals SM-DIMSW, Leviton DSM10, Lutron CTCL-153P, Lutron DVCL-153P, Lutron DVSCCL-153P
Wiring: Hardwired

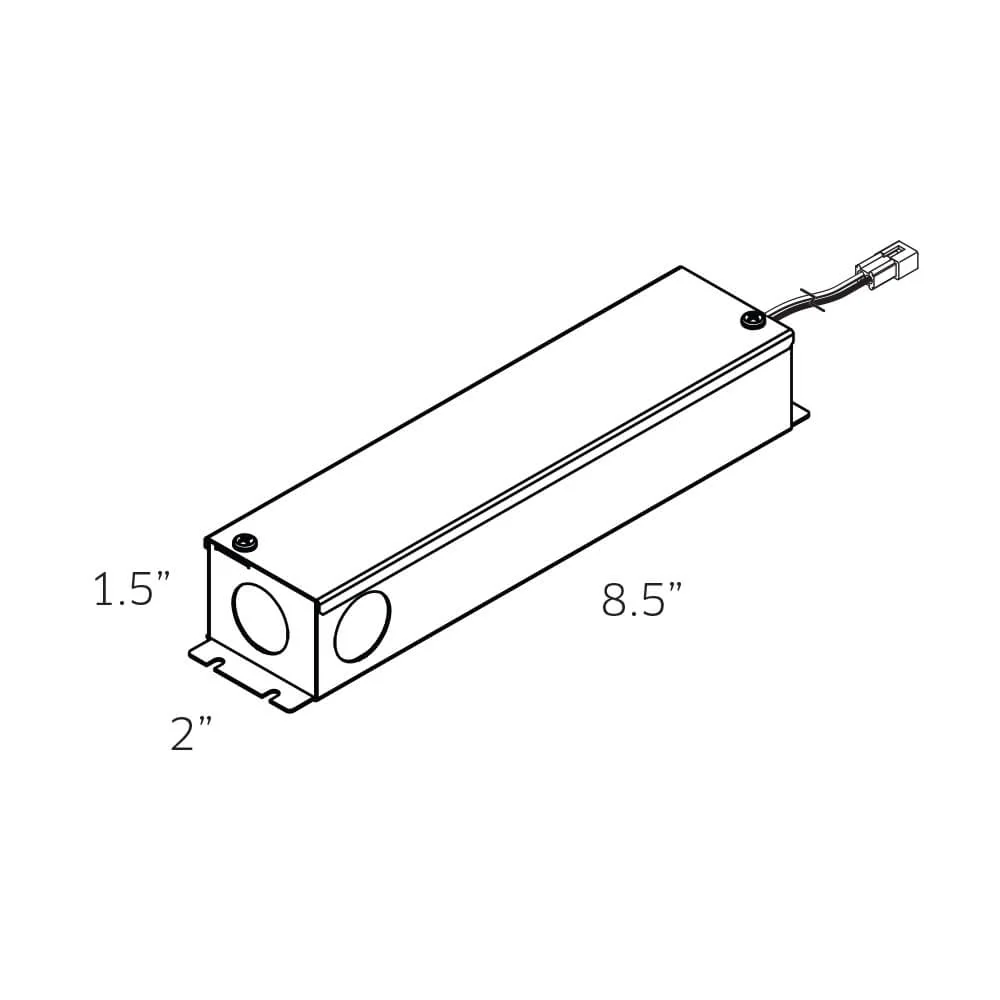

Length: 8.5 in
Width: 2in
Height: 1.5 in
Compatible with the following products: SM-DIMSW, LINU12, SWIVLED12, SWIVLEDHP, 4001, 4001HP, 4002, 4002HP, 4005FR, 4005HP, 4006, 4006SQ and LEDRDP18
