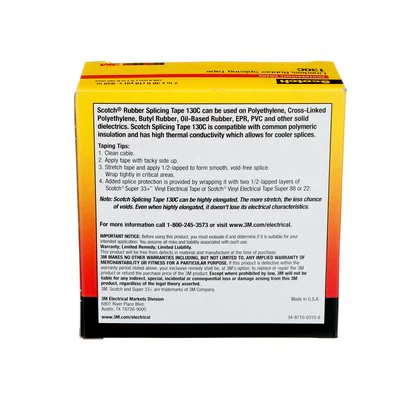

3M 2" wide Scotch Linerless Rubber Splicing Tape, Black, Model 130C-2x30
Description
The Scotch® Linerless Rubber Splicing Tape is a linerless, premium-grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194°F (90°C) with emergency overload up to 266°F (130°C). The tape has excellent electrical and mechanical properties to provide moisture-seal protection.
Scotch® Linerless Rubber Splicing Tape is a highly conformable tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and a self-fusing, ethylene propylene backing. The tape provides primary insulation for solid, dielectric insulated cables rated through 69 kV. This tape is designed for low and high voltage, bus bar insulation, end sealing of cables, and jacket repair applications. It has outstanding mechanical and electrical properties that offer moisture seal and void-free buildups. This tape is ASTM Approved and RoHS 2011/65/EU Compliant.
Features
- Highly conformable, rubber resin adhesive and the self-fusing, ethylene propylene rubber backing provides UV resistance
- Provides an excellent thermal dissipation of splice heat
- Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
- Colour: Black
- Withstands temperatures up to 194°F (90°C)
Technical Information
Adhesive Type: Rubber resin
Applications: Insulation
Backing (Carrier) Material: Ethylene Rubber
Brand: Scotch®
Colour Family: Black
Dielectric Strength: 750.0 V/mil
Elongation at Break: 850.0 %
ETIM Class 8.0: EC000128
Features: UV-resistant, Vulcanizing & Self-sticking
Maximum Operating Temperature (Celsius): 90.0 °C
Maximum Operating Temperature (Fahrenheit): 194.0 °F
Overall Length (Imperial): 30.0 ft
Overall Length (Metric): 9.1 m
Overall Width (Imperial): 2 in
Overall Width (Metric): 50.8 mm
Product Colour: Black
Specifications Met: ASTM D-4388 Type 1, 2 & 3, ASTM D-4325, HH-I-553C
Tape Grade: Professional
Tensile Strength (Imperial): 250.0 lb/in
Tensile Strength (metric): 1723.0 kPa
Units per Case: 12
Voltage Rating: 69 kV
