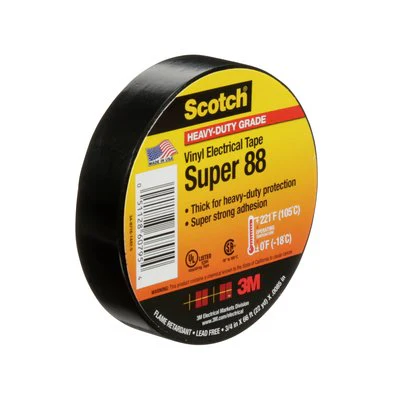

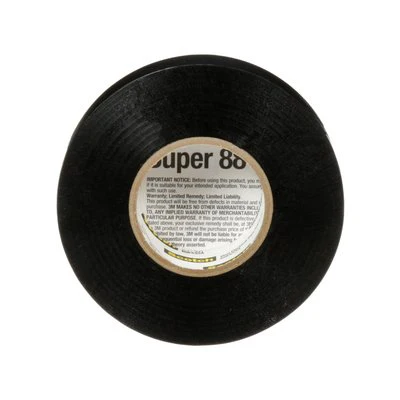

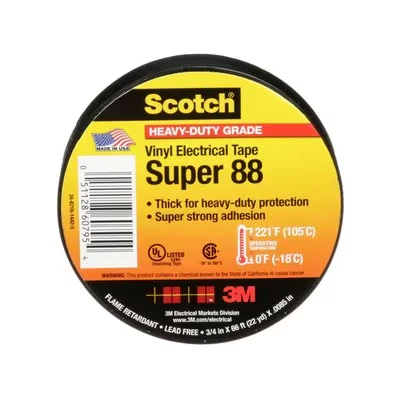

3M Canada Scotch Vinyl Electrical Tape Super 88, Black, Heavy Duty, 8.5 mil (0.22mm) 3/4in x 66 ft, Model SUPER88-3/4X66
3M Canada Scotch Vinyl Electrical Tape Super 88, Black, Heavy Duty, 8.5 mil (0.22mm) 3/4in x 66 ft, Model SUPER88-3/4X66
Description
The Scotch® Vinyl Electrical Tape Super 88 is an 8.5 mil (0.22 mm) thick, premium-grade, all-weather, vinyl electrical tape that is designed to provide a protective jacket and primary electrical insulation for splices up to 600V. The flame-retardant tape withstands a temperature range of 0°F to 221°F (-18°C to 105°C).
The Scotch® Vinyl Electrical Tape Super 88 is an abrasion resistant tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and an elastic PVC backing. This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion, and varying weather conditions. It is designed to provide a protective jacket for low and high voltage bus applications. The tape is compatible with solid dielectric cable insulations, as well as epoxy and polyurethane resins. UL Listed, CSA Certified, and RoHS 2002/95/EC.
Features
- The combination of the pressure-sensitive, rubber resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Made of black durable PVC
- Operating temperature range of 0° to 220°F (-18° to 105°C) exceeds most commercial-grade specifications
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
- UL Listed, CSA Certified and RoHS 2002/95/EC
Technical Information
Adhesive Type: Rubber
Applications: Electrical Maintenance
Backing (Carrier) Material: PVC
Brand: Scotch®
Elongation at Break: 250.0 %
Insulation Resistance: > 10^6 megohms
Maximum Operating Temperature (Celsius): 105 °C
Maximum Operating Temperature (Fahrenheit): 220 °F
Minimum Operating Temperature (Celsius): -18 °C
Overall Length (Imperial): 66 ft
Overall Length (Metric): 20.1 m
Overall Width (Imperial): 0.75 in
Overall Width (Metric): 19 mm
Product Colour: Black
Shelf Life: 1825 Days
Smallest Saleable Unit*: Roll
Specifications Met: CSA Certified, UL 510, UL Listed
Tape Grade: Professional
Tensile Strength (metric): 35 N/10mm
Total Tape Thickness without Liner (Imperial): 8.5 mil
Total Tape Thickness without Liner (metric): 0.22 mm
Voltage Rating: 600 V
Original: $9.90
-65%$9.90
$3.46
Description
Description
The Scotch® Vinyl Electrical Tape Super 88 is an 8.5 mil (0.22 mm) thick, premium-grade, all-weather, vinyl electrical tape that is designed to provide a protective jacket and primary electrical insulation for splices up to 600V. The flame-retardant tape withstands a temperature range of 0°F to 221°F (-18°C to 105°C).
The Scotch® Vinyl Electrical Tape Super 88 is an abrasion resistant tape that provides electrical and mechanical protection with the combination of an aggressive rubber resin adhesive and an elastic PVC backing. This tape is highly resistant to UV rays, moisture, alkalis, acids, corrosion, and varying weather conditions. It is designed to provide a protective jacket for low and high voltage bus applications. The tape is compatible with solid dielectric cable insulations, as well as epoxy and polyurethane resins. UL Listed, CSA Certified, and RoHS 2002/95/EC.
Features
- The combination of the pressure-sensitive, rubber resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Made of black durable PVC
- Operating temperature range of 0° to 220°F (-18° to 105°C) exceeds most commercial-grade specifications
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- Withstands a temperature range of 0 to 221 °F (-18 to 105 °C)
- UL Listed, CSA Certified and RoHS 2002/95/EC
Technical Information
Adhesive Type: Rubber
Applications: Electrical Maintenance
Backing (Carrier) Material: PVC
Brand: Scotch®
Elongation at Break: 250.0 %
Insulation Resistance: > 10^6 megohms
Maximum Operating Temperature (Celsius): 105 °C
Maximum Operating Temperature (Fahrenheit): 220 °F
Minimum Operating Temperature (Celsius): -18 °C
Overall Length (Imperial): 66 ft
Overall Length (Metric): 20.1 m
Overall Width (Imperial): 0.75 in
Overall Width (Metric): 19 mm
Product Colour: Black
Shelf Life: 1825 Days
Smallest Saleable Unit*: Roll
Specifications Met: CSA Certified, UL 510, UL Listed
Tape Grade: Professional
Tensile Strength (metric): 35 N/10mm
Total Tape Thickness without Liner (Imperial): 8.5 mil
Total Tape Thickness without Liner (metric): 0.22 mm
Voltage Rating: 600 V
