3M Heat Shrink Thin-Wall Tubing, Black, 3/8in X 100 ft, Model FPSM301-3/8X100BK

3M Heat Shrink Thin-Wall Tubing, Black, 3/8in X 100 ft, Model FPSM301-3/8X100BK

Description

3M™ Heat Shrink Thin-Wall Tubing is a heat-shrinkable, flexible polyolefin tubing that offers an outstanding balance of electrical, physical and chemical properties for a wide variety of industrial and military applications.

3M™ Heat Shrink Thin-Wall Tubing is typically used as a shrink-fit electrical insulation over cable splices and terminations. It is also used for lightweight wire harness covering, wire marking, wire bundling, component packaging and fire resistant covering. The tubing is split resistant, mechanically tough, easily marked and resists cold flow. This product meets the requirements of SAE-AMS-DTL-23053/5, Class 1, Class 2 (clear) AMS-3636, AMS-3637, is Underwriters Laboratories (UL) Recognized, File E-39100, at 600 volts maximum at 125°C and is CSA Certified, CSA LR38227, at 600 volts maximum at 125°C.

Features

  • Rated for 135°C (275° F) continuous operation
  • Designed to withstand elevated temperatures to 300°C (572°F) for short periods of time
  • 2:1 shrink ratio
  • Flexible and split resistant
  • Rated for 600V applications
  • Flame-retardant tubing is rated for 600V applications

Technical information

Additional Flammability Rating: 23053/5 class1
Agency Approvals: UL Recognized, CSA Certified, ABS, and AMS 3636 & 3637
Applicable SAE-AMS-DTL-23053 Specifications: 23053/5 class 1
Brand: 3M™
Elongation: 400.0 %
Expanded Inner Diameter: 0.375 in
Expanded Inner Diameter (metric): 9.53 mm
Flame Retardant: Yes
Flammability Rating: UL 224 All Tubing Flame Test
Inner Diameter After Shrink (Imperial): 0.187 in
Inner Diameter After Shrink (Metric): 4.75 mm
Inner Diameter Before Shrink (Imperial): 0.375 in
Inner Diameter Before Shrink (Metric): 9.53 mm
Material: Flexible Polyolefin
Maximum Operating Temperature (Celsius): 135.0 °C
Maximum Operating Temperature (Fahrenheit): 275.0 °F
Mil Spec: AMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.: 3.0 in
Minimum Shrink Temperature (Celsius): 100.0 °C
Non-Corrosive: Yes
Operating Temperature (Celsius): -55 to 135 Degrees Celsius
Operating Temperature (Fahrenheit): -67 °F to 275 °F
Operating Temperature Range (Celsius): -55 °C to +135 °C
Operating Temperature Range (Fahrenheit): -67 °F to 275 °F
Overall Length (Imperial): 100.0 ft
Overall Length (Metric): 30.5 m
Product Colour: Black
Recovered Inner Diameter: 3.0 in
Recovered Inner Diameter (metric): 4.7498 mm
RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
Shelf Life: 120 Months
Shrink Ratio: 2:1
Solution for: Access Network: FTTH/FTTB/CATV, Wireless Network: Backhaul, Wireless Network: Infrastructure Accessories, Longhaul/Metro Loop Network: Outdoor, Access Network: xDSL, Longhaul/Metro Loop Network: CO/POP
Tensile Strength (Imperial): 2400 Pound-Force Per Square Inch
Tubing Type: Single Wall (Thin)
UL Approval: Yes
UL File Number: E-39100
With Inner Glue: No


$117.09
3M Heat Shrink Thin-Wall Tubing, Black, 3/8in X 100 ft, Model FPSM301-3/8X100BK—
$117.09
Product image 1
Product image 2

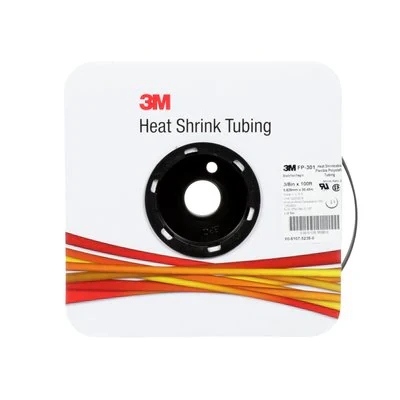

Product image 3
