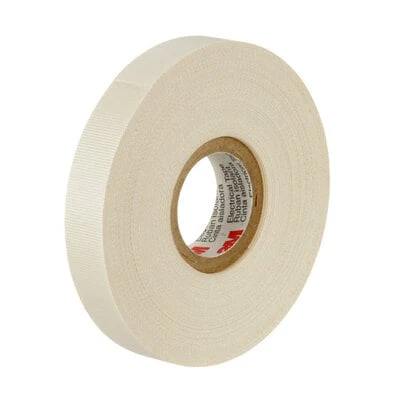

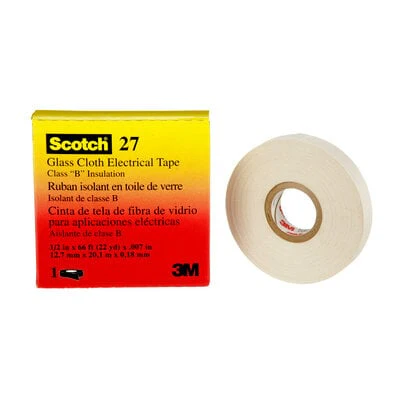

3M Scotch Glass Cloth Electrical Tape, White, 1/2in x 66ft, Rubber Thermosetting Adhesive, Model 27-1/2X66

3M Scotch Glass Cloth Electrical Tape, White, 1/2in x 66ft, Rubber Thermosetting Adhesive, Model 27-1/2X66

Description

Scotch® 27 Glass Cloth Electrical Tape is a 7 mil insulating glass cloth tape with a pressure-sensitive, rubber thermosetting adhesive. It is used for heat-stable insulation for furnace and oven controls, motor leads, switches and is an ideal solution for electrical maintenance applications.

Scotch® 27 Glass Cloth Electrical Tape is edge-tear resistant, conformable and abrasion resistant. It is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The glass cloth is specially treated and prepared to provide corrosion-free protection. Scotch® 27 Glass Cloth Electrical Tape is UL Recognized (file E17385) and CSA certified (file LR93411).

Features

  • High temperature rubber thermosetting adhesive
  • Mechanical and abrasion protection
  • Will not shrink, rot or burn
  • High tensile strength
  • Printable
  • Pressure-sensitive adhesive
  • UL Recognized

Technical Information

Adhesive Type: Rubber
Applications: Electrical Maintenance, Backing (Carrier) Material, Glass cloth
Brand: 3M™
Dielectric Strength: 3000.0 V
Electrolytic Corrosion Factor: 0.9
Elongation at Break: 5.0 %
Insulation Resistance: 4.8 x 10^4 megohms
Maximum Operating Temperature (Celsius): 80.0 °C
Maximum Operating Temperature (Fahrenheit): 302.0 °F
Minimum Operating Temperature (Celsius): 0.0 °C
Minimum Operating Temperature (Fahrenheit): 32.0 °F
Overall Length (Imperial): 66.0 ft
Overall Length (Metric): 20.1 m
Overall Width (Imperial): 0.5 in
Overall Width (Metric): 12.7 mm
Product Colour: White
Specifications Met: UL Recognized, CSA Certified

Total Tape Thickness without Liner (Imperial): 7.0 mil
Total Tape Thickness without Liner (metric): 0.178 mm
