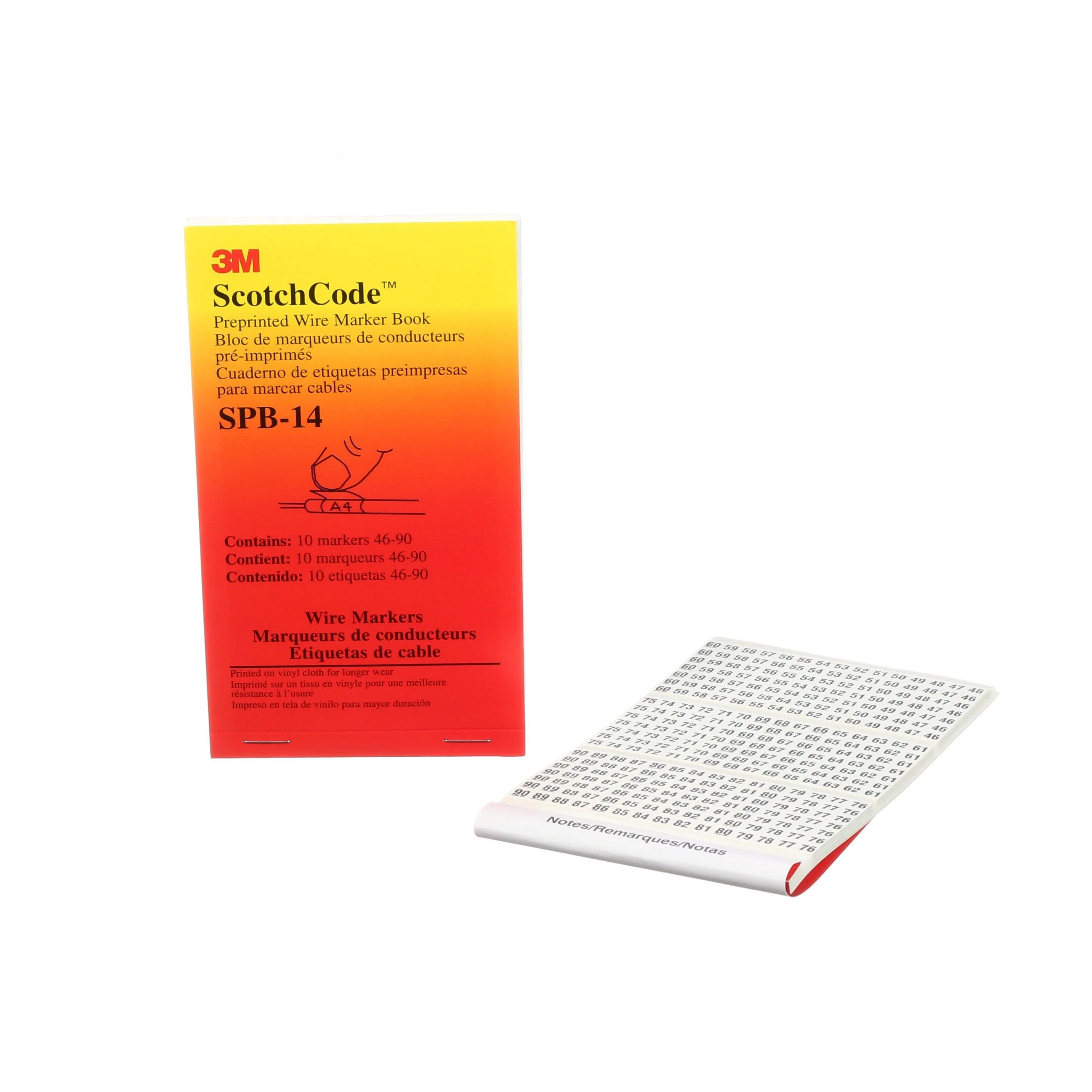

3M ScotchCode™ Pre-Printed Wire Marker Book, Numbers 46 - 90, Model SPB-14

Description

3M™ ScotchCode™ Pre-Printed Wire Marker Books contain printed vinyl cloth wire and terminal markers with clearly printed letters, numbers, symbols, and industry-standard legends in black ink on a white background. The markers can withstand temperatures of 32 to 150 degrees Fahrenheit (0 to 66 degrees Celsius). The individual character markers that are bound in the bi-fold book are perforated in the center to minimize thickness on smaller gauge wires. This book includes 10 of each 46 through 90 numeric markers.

Features

• Convenient and easy to use
• Suitable to mark electrical wires and terminal strips quickly
• Individual character markers bound in the bi-fold book, are perforated in the center to decrease thickness on smaller gauge wires
• Includes one pad of Post-It® Notes
• Pocket-sized
• RoHS 2011/65/EU Compliant‎
• Black print on a white background highlights the characters
• Marker has a vinyl impregnated cloth film with a top coat and natural rubber adhesive

Technical Information

Adhesive Material: Natural Rubber
Colour Family: White
Disclaimer: Marker tapes are not intended for use as electrical insulation
Kit Includes: 10 ea 46-90
Marker ID Style: Pre-printed
Marker Size: 1.37 x 0.22 in (34,8 x 5,6 mm)
Marker Type: Books
Material: Vinyl Impregnated Cloth Film
Maximum Cable Diameter (Imperial): 0.47 in
Maximum Cable Diameter (Metric): 11.9 mm
Maximum Operating Temperature (Celsius): 66.0 °C
Maximum Operating Temperature (Fahrenheit): 150.0 °F
Maximum Outside Diameter: 0.47 in (11,9 mm)
Printed Text Type: Numbers
Product Colour: White
Product Type: Identification
