Broan 50-80-110 Selectable CFM Ventilation Fan, <0.3-0.4-0.9 Sones, Model AE50110DC
Description

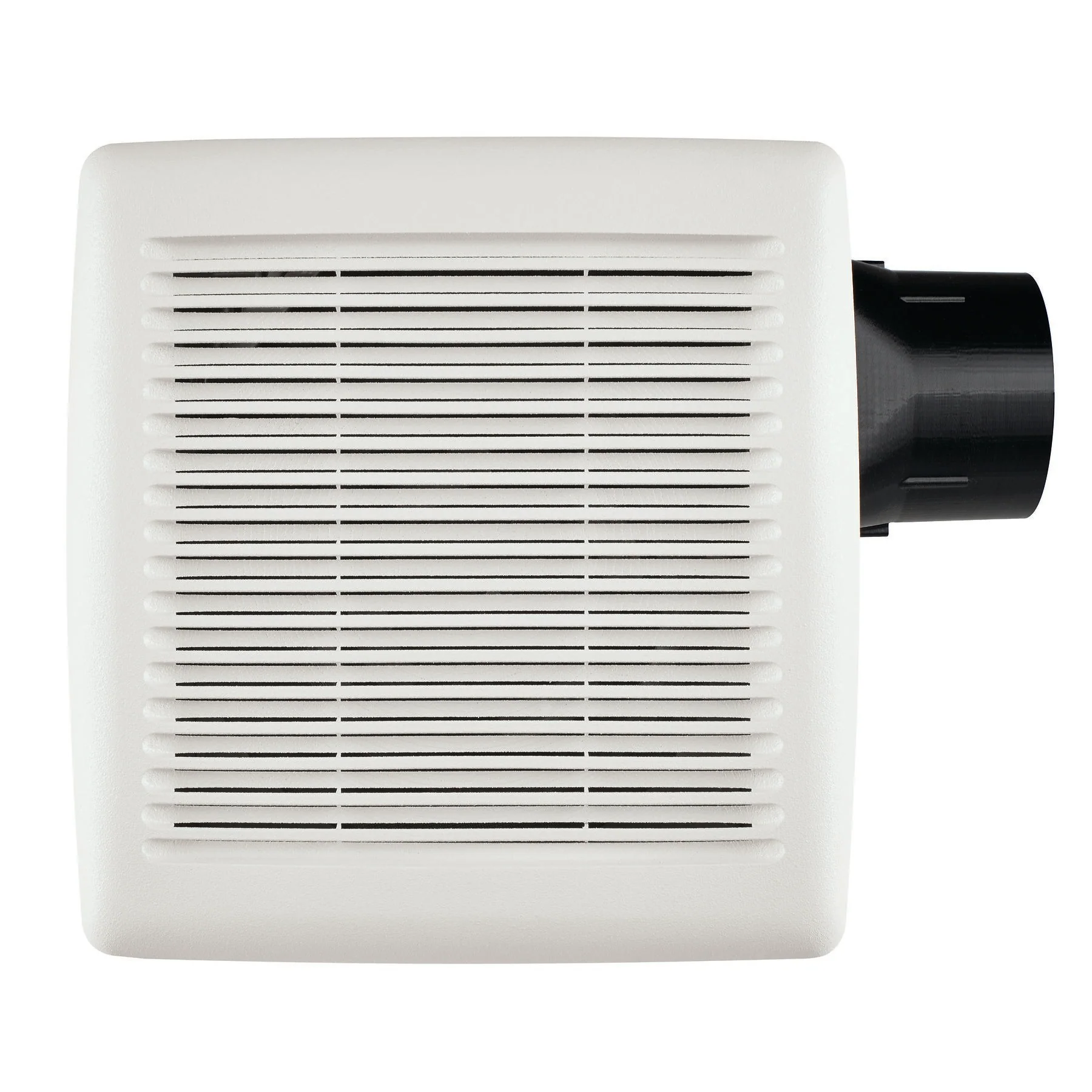

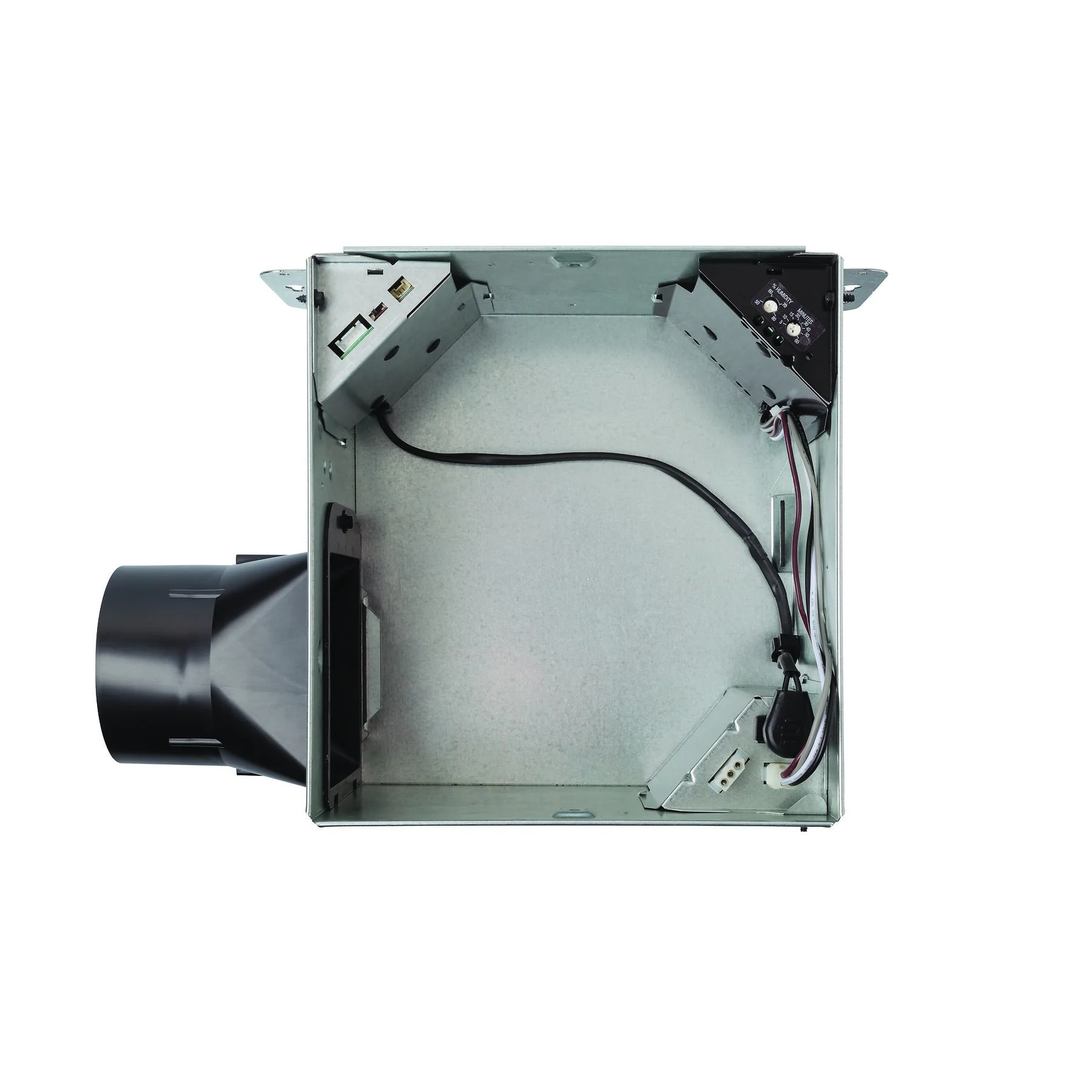

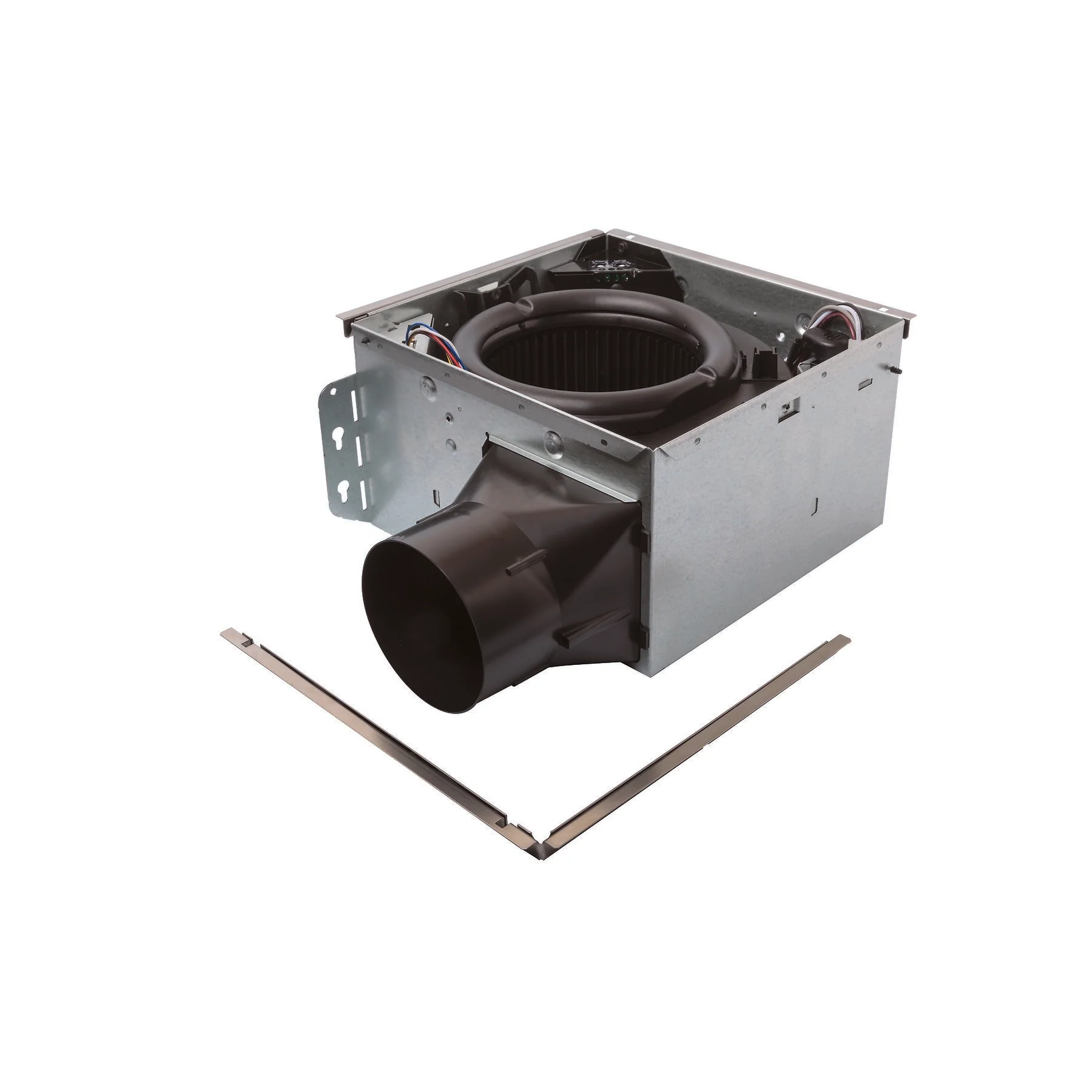

Broan® AE50-110DC Flex DC™ Series 80 CFM Exhaust Bath Fan, ENERGY STAR® offers easy, room side installation, with “No Attic Access Required”. Ceiling mounted ventilation fan features foldable mounting ears and EZ Duct connector for easy installation. New duct damper technology provides a tighter seal, resulting in reduced warm and cold air backdrafts. This energy efficient fan operates at a selectable CFM range of 50-80-110 at a quiet operation of <0.3-0.4-0.9 sones.
Features
- FlexFlow™ technology, select between 50, 80 or 110 CFM
- Quiet operation at <0.3-0.4-0.9 sones
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
- Flex DC fans reduce air leakage by up to 50% compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- Plug in, permanently lubricated, brushless DC motor – engineered for continuous operation
- Can be installed in a wall if mounted 8-ft. or more above the floor
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- ENERGY STAR® certified product
Technical Information
CFM: 50-80-110
Color Finish: White
Duct Size: 4
ENERGY STAR® certified: Yes
Grille Length: 11.5
Grille Width: 12

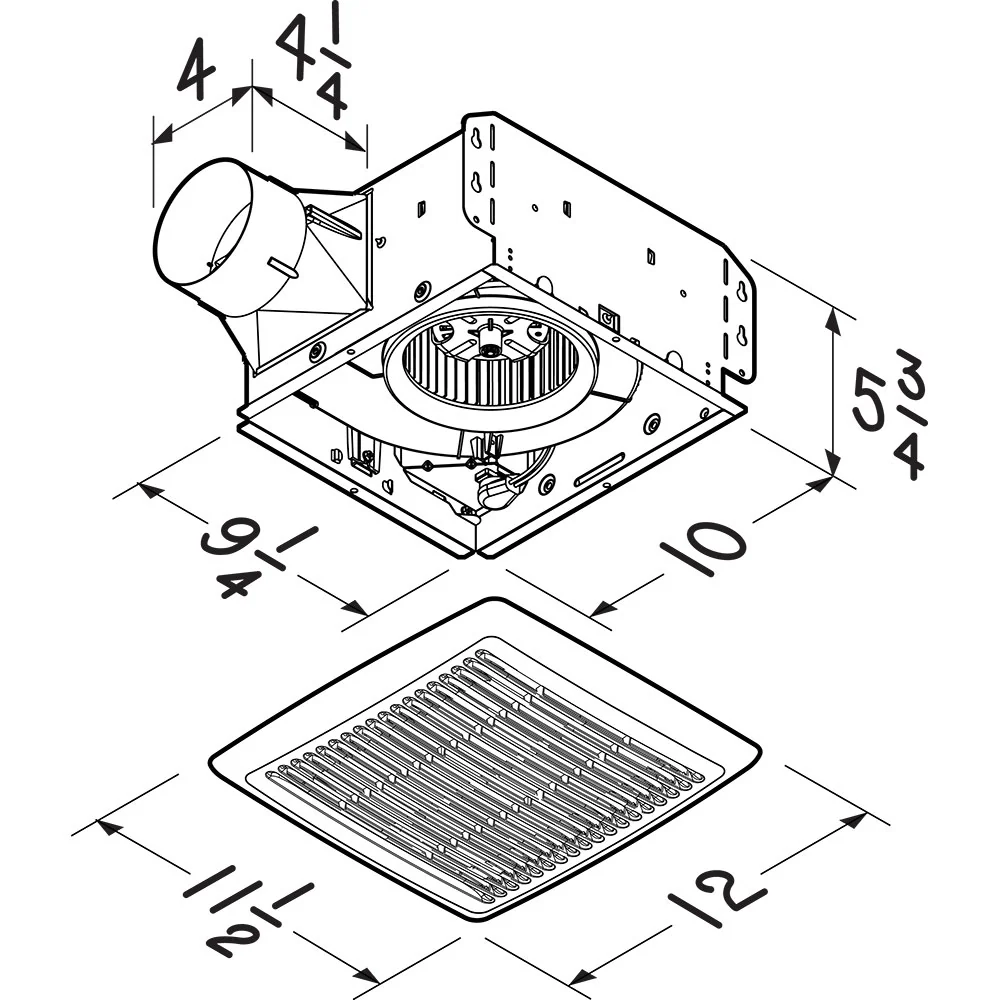

Housing Dimensions: 9-1/4" x 10" x 5-3/4"
Sound Level (Sones): 0.3
UL Listed: No
Grille Finish: White
Humidity Sensing: No
Motion Sensing: No
Motor Engineered For Continuous Operation: No
Night Light: No
Radiation Damper Available: Yes
Room Side Installation: Yes
UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
Heater Wattage: 0
Recommended Room Size (Sq Ft): 105
Rated Amps: 0.3
Voltage: 120
Can Be Used To Comply With Title 24: No
Minimum Construction Space Required: 2" x 6"
Manufacturer Warranty: 3 years
High Efficiency Luminaire: No
