Broan 80 CFM Ventilation Fan, Model LP80*
Description
The LP80 LoProfile fan is designed for installations where conventional ventilation simply won't fit. When a multi-family application requires it, the LoProfile fan is narrow enough to be installed in a wall between 2 x 4 studs. When plumbing or electrical obstructions are found behind the drywall in ceiling remodel applications. The LoProfile fan can still fit without having to move anything, and that means most any room with space constraints can have powerful, quiet, efficient ventilation.
Features
- 80 CFM, Effective ventilation to remove moisture and reduce the risk of mold or mildew in most full baths
- 1.0 Sones for Ultra quiet performance, you might not notice it's on
- Plug-in, permanently lubricated motor - engineered for continuous operation
- Fits in 2x4 ceiling or wall construction
- ENERGY STAR® Certified efficient operation for lower utility bills
- UL listed for use over bathtubs and showers when connected to a GFCI protected branch circuit (ceiling mount only)
- Powerful enough for rooms up to 75 sq. ft.
Technical Information
CFM: 80
Color Finish: White
Duct Size: 4
ENERGY STAR® certified: Yes
Grille Length: 13
Grille Width: 13.75

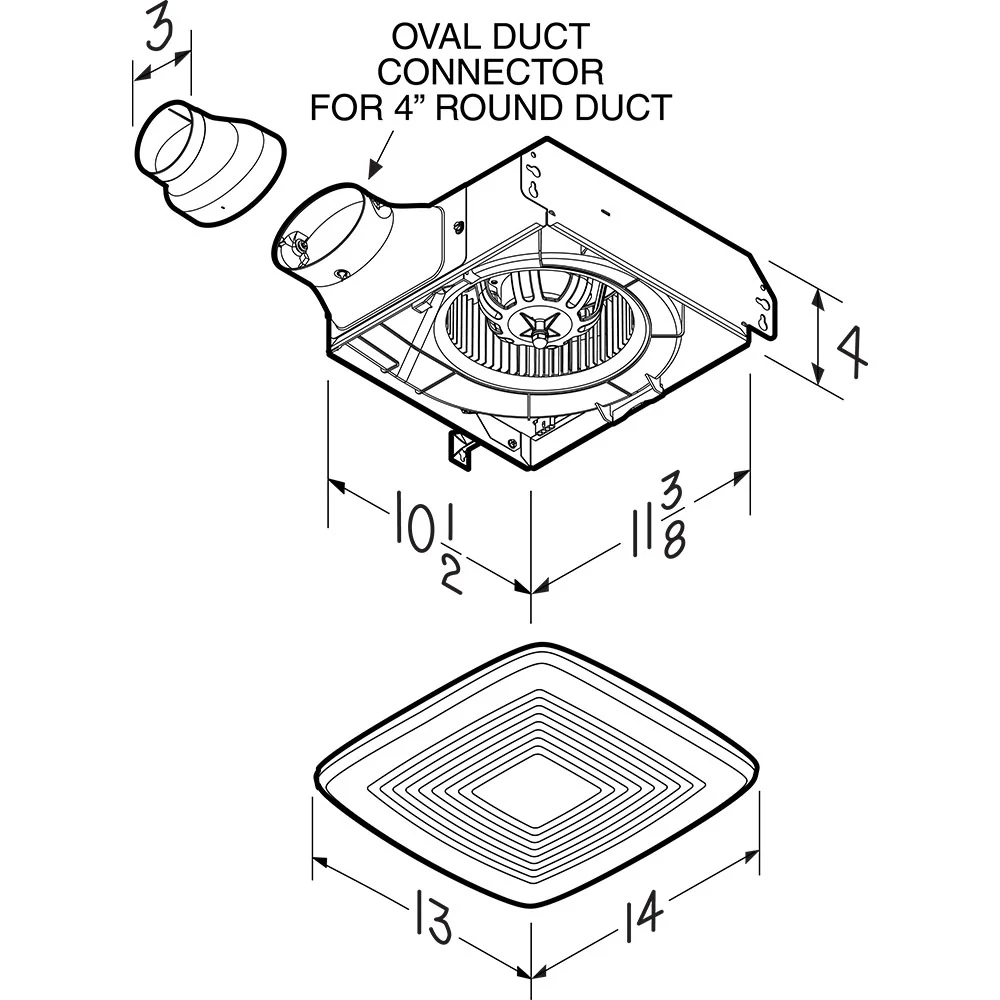

Housing Dimensions: 10-1/2" x 11-3/8" x 4"
Sound Level (Sones): 1
UL Listed: No
Grille Finish: White
Humidity Sensing: No
Motion Sensing: No
Motor Engineered For Continuous Operation: No
Night Light: No
Radiation Damper Available: Yes
Room Side Installation: No
UL Listed for use over bathtubs or showers when connected to a GFCI circuit: Yes
Heater Wattage: 0
Recommended Room Size (Sq Ft): 75
Rated Amps: 0.3
Voltage: 120
Can Be Used To Comply With Title 24: No
Minimum Construction Space Required: 2" x 4"
Manufacturer Warranty: 1 year
High Efficiency Luminaire: No
