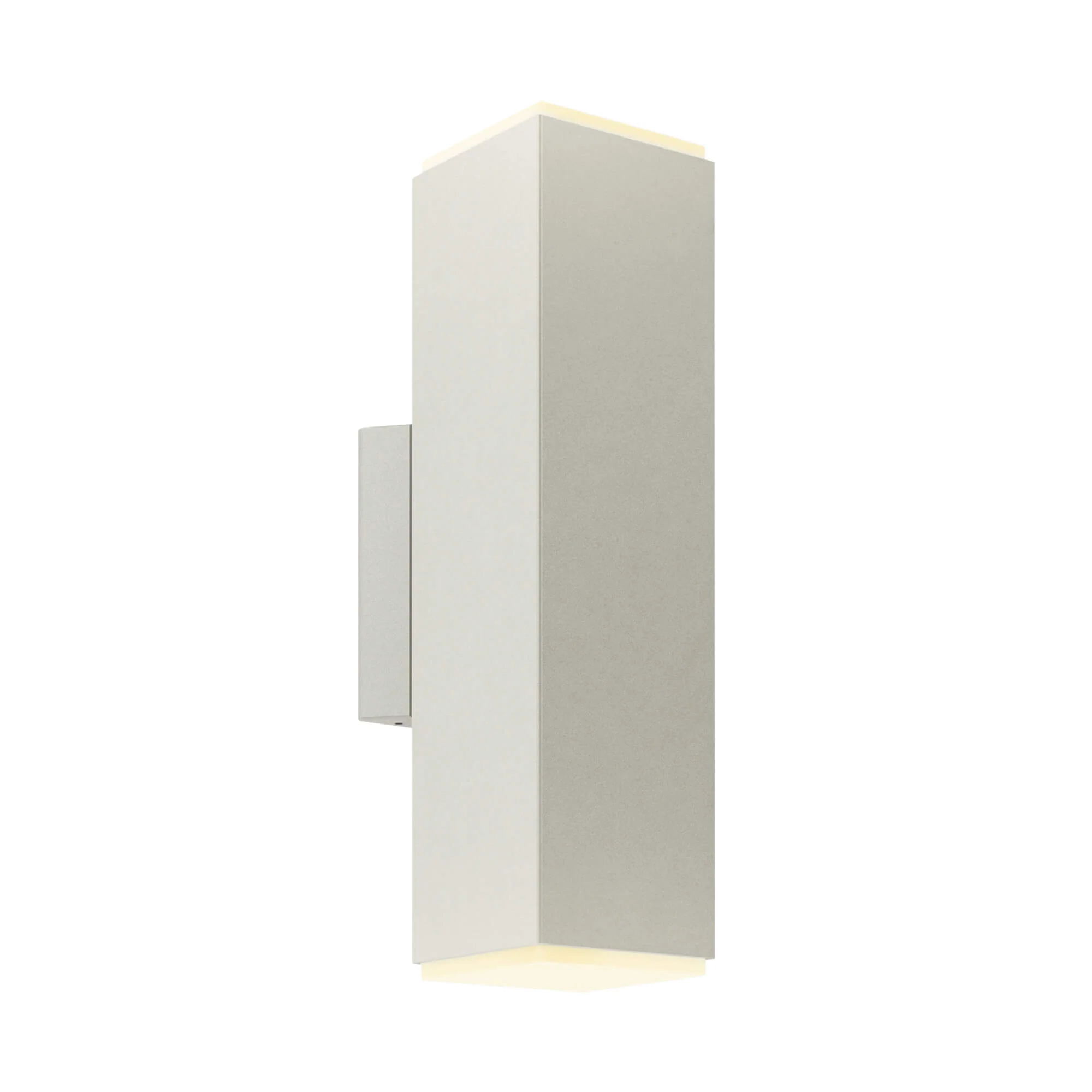

DALS Lighting Silver Grey 4 Inch Square Adjustable LED Cylinder Sconce, Model LEDWALL-B-SG*

Description

The key design element of Dals' new LED cylinder is the removable lens. This feature allows for three distinctive styles during installation.

Note: Not compatible with shallow electrical box, deep octagonal box recommended for new installation.

Features

• Square housing made of extruded aluminum
• Fixture canopy made of die-cast aluminum
• LED module mounted on an aluminum heat sink to maximize heat dissipation and extend product life
• The square wall mount comes with 3 optical options:
  – Bright aluminum reflector that provides a 45° beam spread
  –  Frosted glass lens to allow a wider beam spread
  –  Die-cast aluminum cap to allow a down light only version
• Compatible with TRIAC, ELV and 0-10 V dimmers
• The LED board is sealed with a clear tempered glass lens to ensure weatherproof operation
• Baked powder paint coat for a highly durable finish
• Suitable for wet locations
• JA8 certified
• Ideal operating temperature: -20° to 40° C
• 5-year warranty

Technical Information

Finish: Silver Grey
Wiring: Hardwire
Smart: No
Dimming: 0-10V, ELV, TRIAC
Recommended Dimmers: Dals SM-DIMSW, Leviton IPE04-1LZ, Leviton VPE06-1LZ, Lutron DVELV-300P, Lutron DVSTV(0-10V), LUTRON SELV-300P
Watts: 29W
Delivered Lumen: 2100lm
LED Lumens: 2260lm
CRI: 90+
Color Temperature: 3000K
Voltage: 120V
Rating: Wet
Location: Indoor/Outdoor
IP Rating: IP65

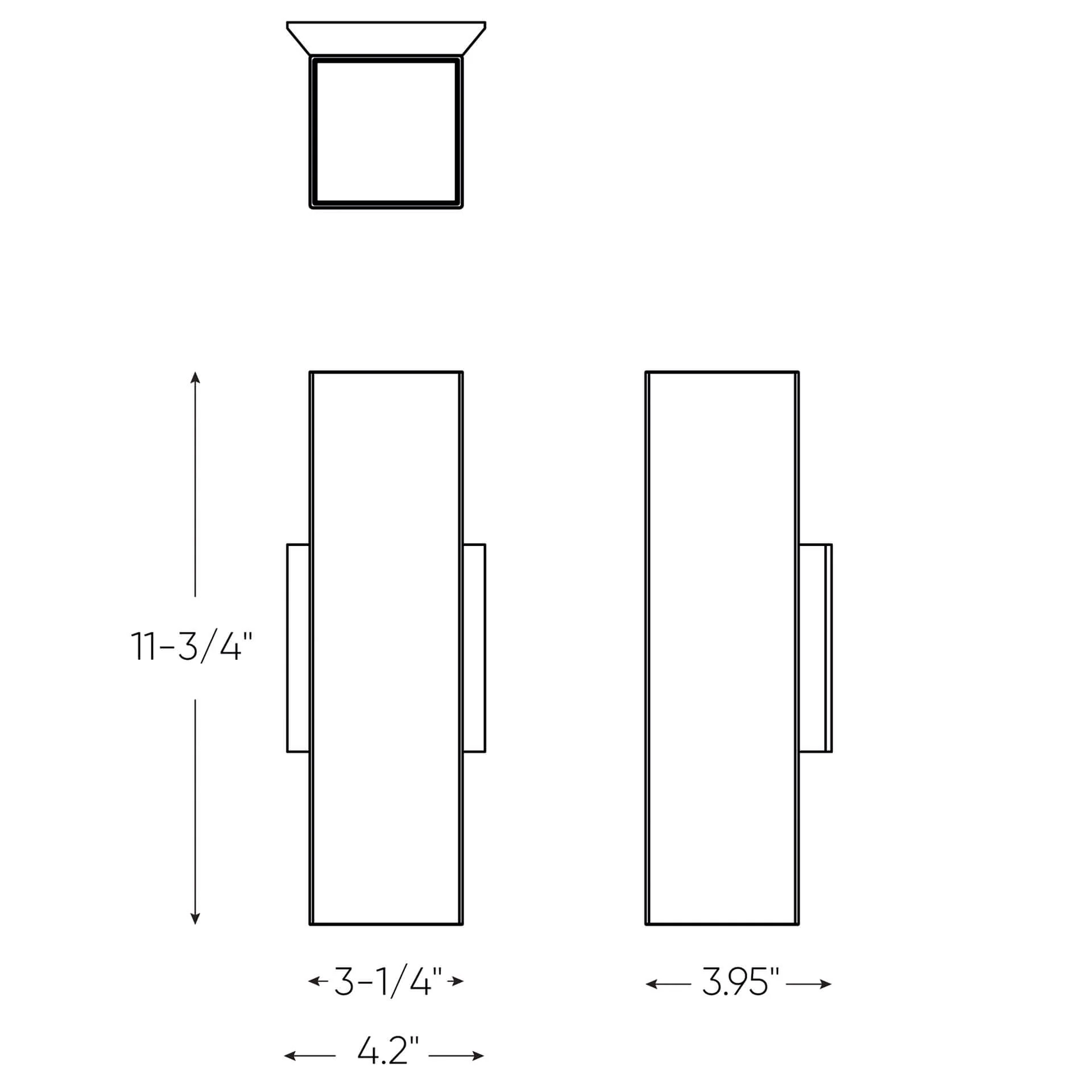

Dimensions: 11.75'' x 4.2'' x 3.95''
Lifetime: 50000H
Warranty: 5 Year Limited
