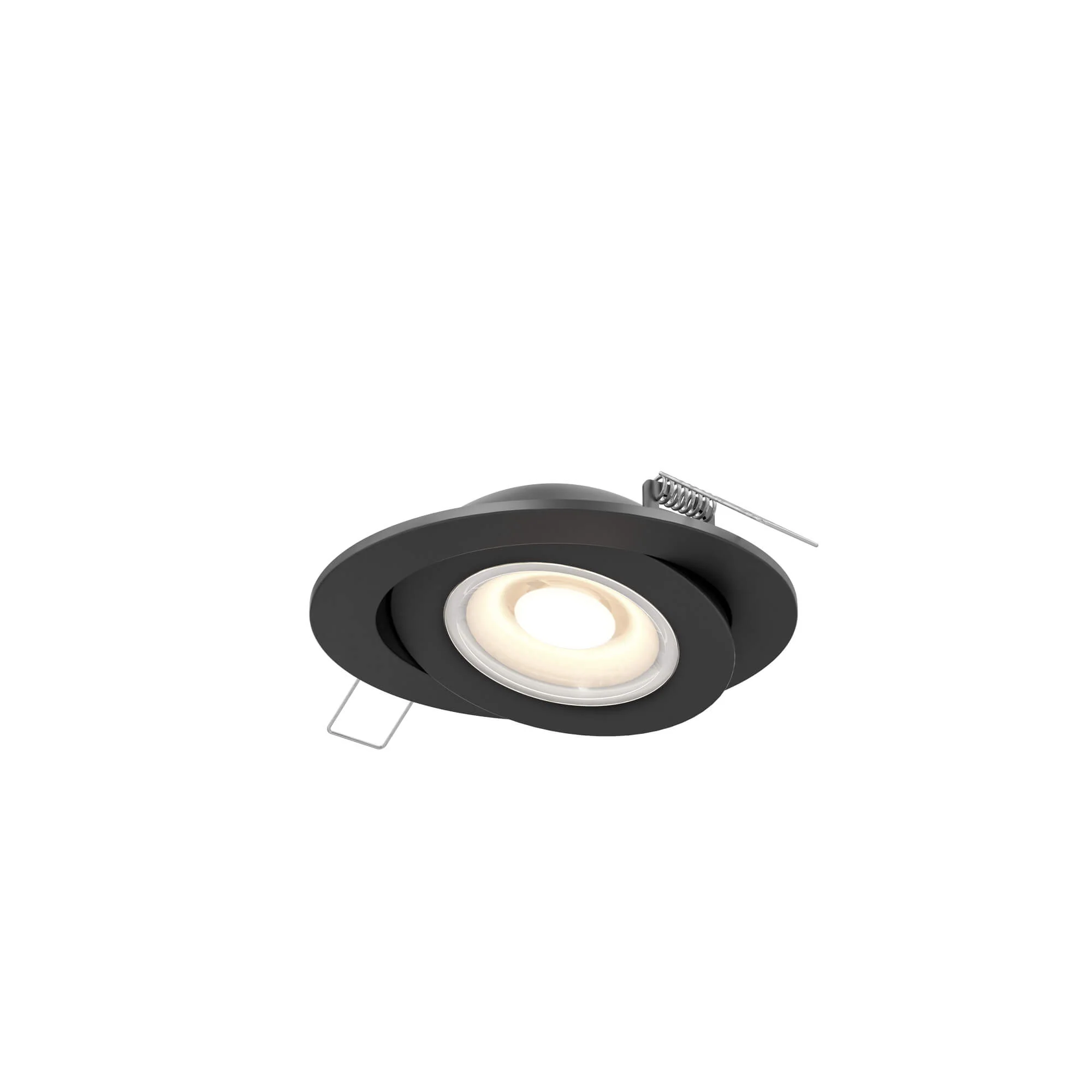

Dals Lighting Black 4" Color Selectable Flat Gimbal Recessed, Model FGM4-CC-BK*

Description

When searching for lighting flexibility, look no further than Dals 4” flat gimbal LED downlights. With powerful lumen output and the ability to direct light with a 360° rotation and a 90° tilt angle, this product will meet your every need.

Features

• Every fixture includes a junction box with integrated dimmable driver
• Can be daisy chained
• Superior LED performance and lifespan
• 90° tilting, 360° rotation
• Minimal heat emission
• Aluminum construction
• Switch-selectable CCT: 2700K/3000 K/3500 K/4000 K/5000 K
• Low profile
• 40° beam spread
• IC certification (suitable for direct contact with insulation)
• Air-tight certified as per ASTM E283-04
• Suitable for wet locations
• Ideal operating temperature: -20° to 40° C
• 5-year warranty

Technical Information

Recommended Dimmers	See spec sheet in downloads tab for recommended dimmers
Watts	9W
Delivered Lumen	800lm
LED Lumens	850lm
CRI	90+
Color Temperature	2700K, 3000K, 3500K, 4000K, 5000K, 5CCT
Voltage	120V
Dimming	0-10V, ELV, TRIAC
Cutout size	Ø4-1⁄4"

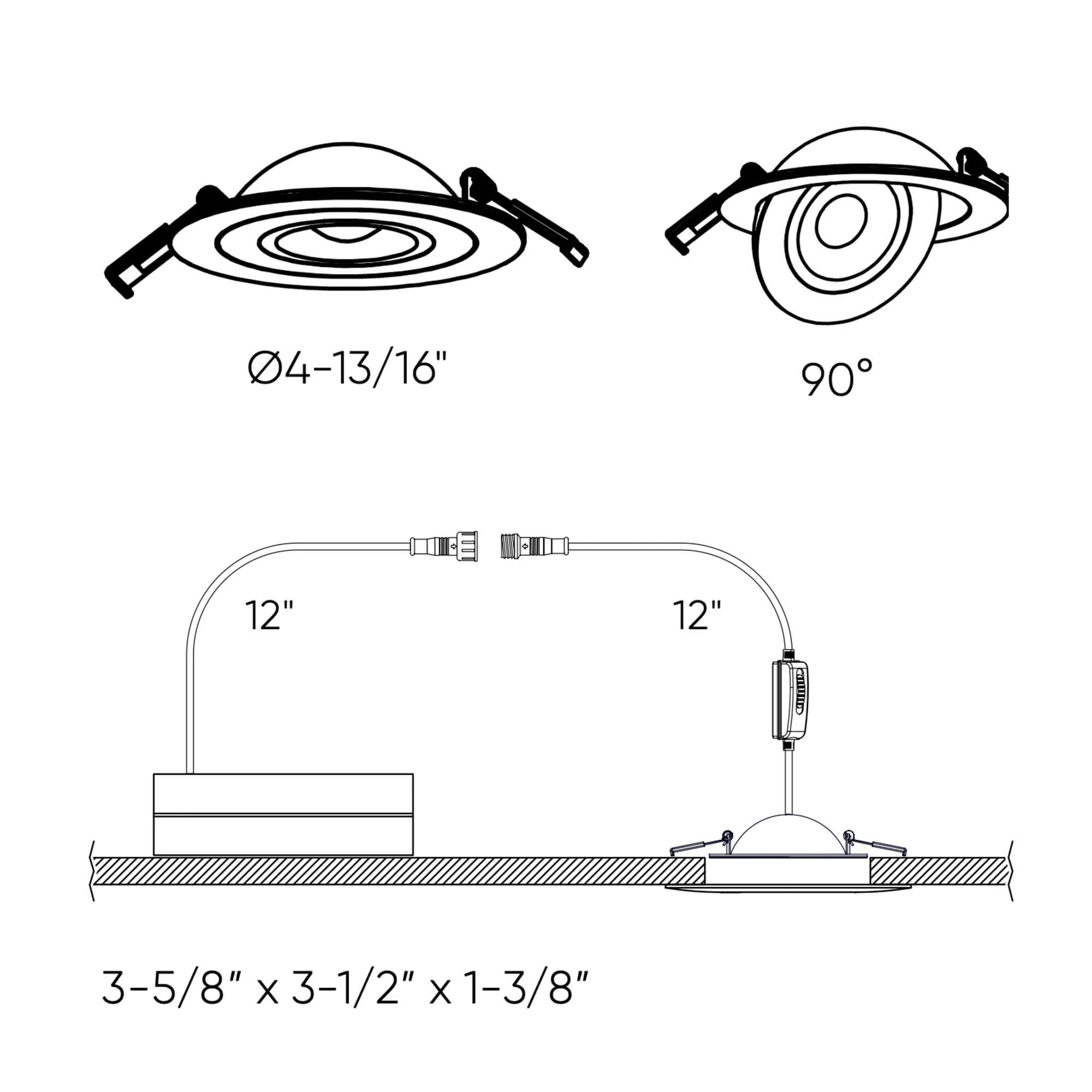

Dimensions	Ø4-13/16" x 1-5/16"
Lifetime	50000H
