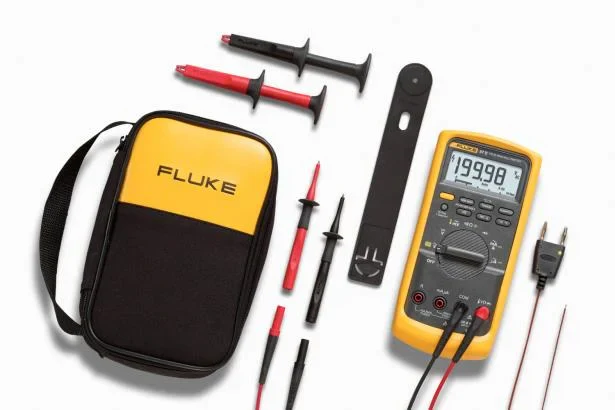

Fluke Industrial Electrician Combo Kit, Model 87V/E2*

Description

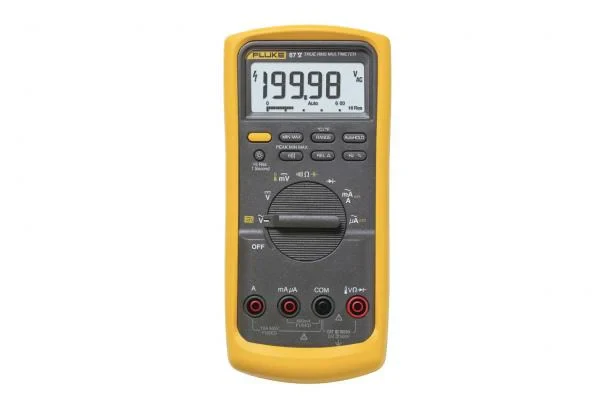

Ideal for electricians, this combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world and includes essential accessories to make you even more productive. This kit offers 15% savings compared with the individual price of all the accessories. Plus you'll be working with the most trusted tools in the world.

The Fluke 87V/E2 Industrial Electrician Combo Kit is designed and assembled in the USA. The 87V multimeter is backed by a limited lifetime warranty, so you can rely on your DMM every time you take it out of your tool box.

Working on VSDs/VFDs: Take accurate voltage, current and frequency measurements on the output side of the drive at either the drive itself or at the motor terminals.

Industrial troubleshooting: Get the resolution and accuracy you need to solve more problems on motor drives, in-plant automation, power distribution, and electromechanical equipment.

Checking power quality: Capture glitches and spikes as short as 250 μs. Identify irregular signals.

Features

• Fully insulated 3 mm exposed metal test probes for electricians working in high energy environments
• C35 Soft Carrying Case holds meter, test leads and other accessories
• TPAK magnetic hanging strap lets you attach the meter to any ferrous surface, such as cabinets and iron pipes.

Advanced measurement functions

• True-rms ac measurements
• 0.05% dc accuracy
• 6,000 counts, 3-3/4 digit resolution, or 20,000 counts, 4-1/2 digit—resolution
• 10 A ac or dc (with test leads and current jacks) with 0.1 μA resolution
• Temperature measurements up to 1090 °C with included thermocouple probe
• Provides 10,000 µF capacitance range for components and motor caps
• Provides peak capture and Min/Max/Avg recording to capture intermittent as short as 250 µS
• Easy access door for fast battery changes without breaking the calibration seal
• Fits into an optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
• Presents a large digit display with bright, two-level backlight for easier reading in low light
• Includes an analog bar graph for fast changing or unstable signals
• Auto and manual ranging for maximum flexibility
• Relative mode to calculate and display difference between two readings
• Holds readings on display for safe viewing after removing probes using Touch Hold technology

Technical Information

Specifications
Voltage DC	Maximum Voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum Resolution	10 µV
Voltage AC	Maximum Voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC Bandwidth	20 kHz with low pass filter; 3 db @ 1 kHz
	Maximum Resolution	0.1 mV
Current DC	Maximum Amps	10 A (20 A for 30 seconds maximum)
	Amps Accuracy	±(0.2% + 2)
	Maximum Resolution	0.01 µA
Current AC	Maximum Amps	10 A (20 A for 30 seconds maximum)
	Amps Accuracy	±(1.0% + 2) True RMS
	Maximum Resolution	0.1 µA
Resistance	Maximum Resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum Resolution	0.1Ω
Capacitance	Maximum Capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Maximum Resolution	0.01 nF
Frequency	Maximum Frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum Resolution	0.01 Hz
Duty Cycle	Maximum Duty Cycle	99.9%
	Accuracy	±(0.2% per khz +0.1%)
	Maximum Resolution	0.1%
Temperature Measurement	-200.0°C - 1090°C -328.0°F - 1994.0°F excluding probe
80 BK Temperature Probe	-40.0°C - 260°C -40.0°F - 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum Conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum Resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty Cycle Range	Accuracy	Within ±(02% per kHz +0.1%)
Environmental Specifications
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +60°C
Humidity (Without Condensation)	0% - 90% (0°C - 35°C) 0% - 70% (35°C - 55°C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010-1 to 1000 V CAT III, 600V CAT IV
Agency Approvals	UL, CSA, TÜV, VDE listed
Mechanical and General Specifications
Size	201 x 98 x 52 mm (with holster)
Weight	355 g 624 g - with holster
Display	Digital	6000 counts updates 4/sec. 19,999 counts in high-resolution mode
	Analog	32 segments, updates 40/sec.
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010-1:2001
Vibration	Per MIL-PRF-28800 for a Class 2 instrument
