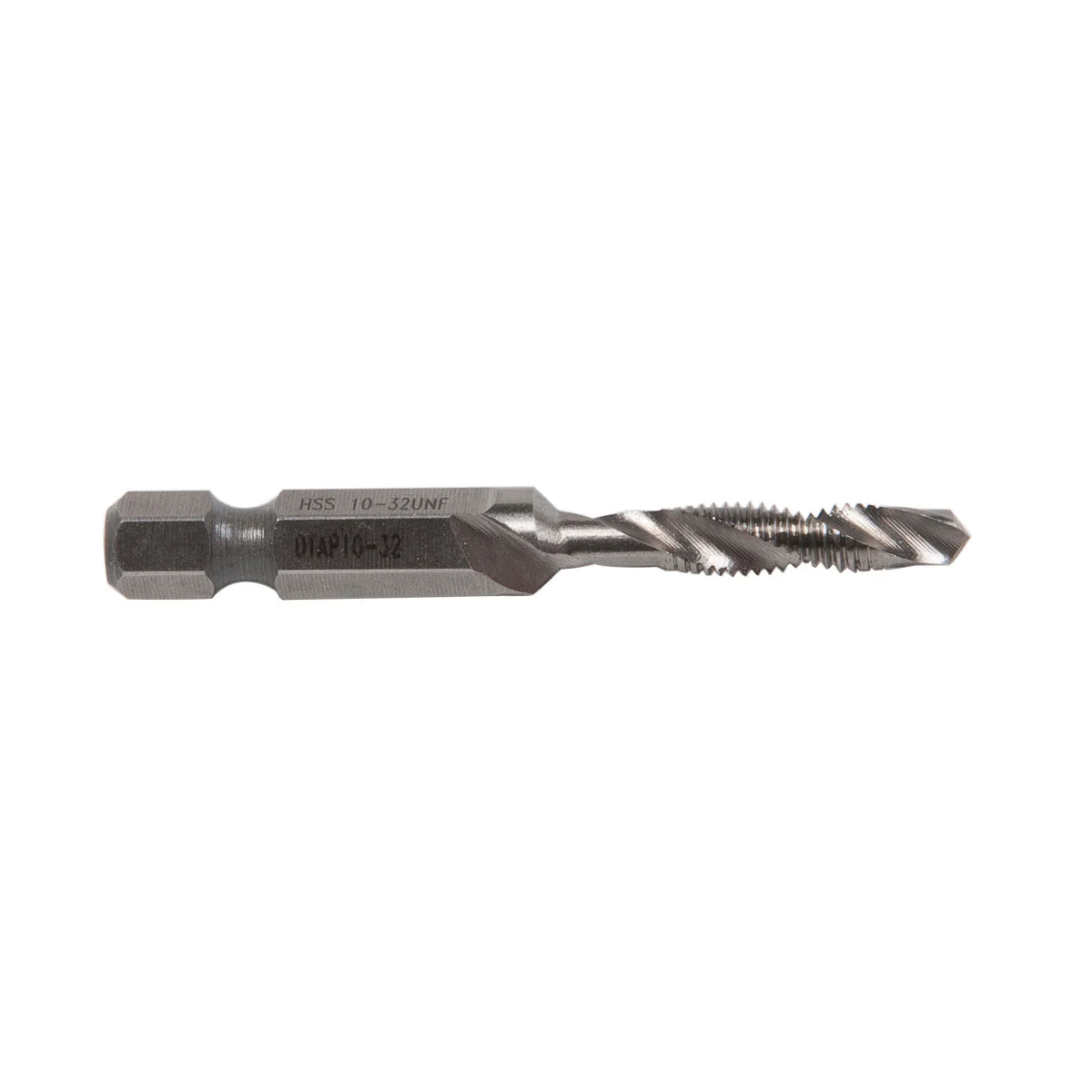

Greenlee 10-32NF Drill/Tap Bit, Model DTAP10-32

Description

Combination Drill/Tap Bits. 10-32NF. Complete hole drilling, tapping and deburring/countersinking in one operation with power drill saves labor and time. Back tapered beyond tap to prevent thread damage from over-drilling. Deburr/countersink also provided on bit beyond back taper. Made from hardened high-speed steel vs. carbon steel for longer life. High quality hex shank to ensure strong connection to drill chuck. Designed to tap up to 10-gauge metal. Quick change adaptor included in both metric and standard kits.

Features



Complete hole drilling, tapping and deburring/countersinking in one operation with power drill saves labor and time

Back tapered beyond tap to prevent thread damage from over-drilling

Deburr/countersink also provided on bit beyond back taper

Made from hardened high-speed steel vs. carbon steel for longer life

High quality hex shank to ensure strong connection to drill chuck

Designed to tap up to 10-gauge metal

Quick change adaptor included in both metric and standard kits



Technical Information

Material: High Speed Steel
Material thickness: Up to 10 GA
Material type: Mild Steel, Copper, Brass, Aluminum
Point Type: Split Point With Web Thinning
Shank: 1/4 IN Quick Change Hex
Size: #10
Thread Per Inch: 32 TPI
Thread Type: NF
