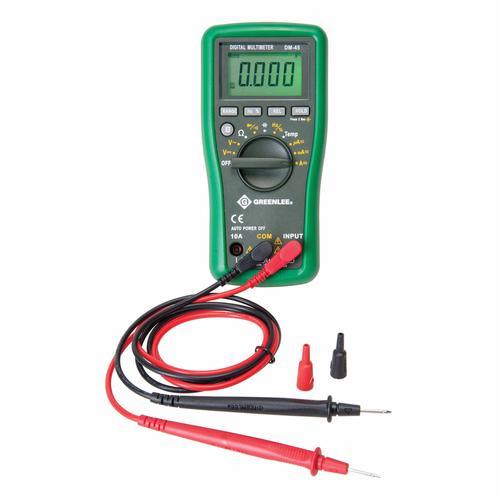

Greenlee Auto Ranging Digital Multimeter (CATIII 600V), Model DM-45*

Description

Designed for efficiency this product features a CATIII 600V safety rating with ETL and CE approval. Measures voltage, current, resistance, temperature, frequency, duty cycle, and capacitance, as well as perform diode and audible continuity tests. Features manual and auto-ranging with a relative offset mode that allows you to view changes in measurements.

Benefits

• Measures AC/DC voltage, AC/DC current, resistance, temperature, frequency, duty cycle and capacitance
• Diode and audible continuity tests
• Relative offset mode to see changes in measurements
• Data hold
• Manual and auto-ranging
• Replaceable fuses for easy field repair
• Large, easy-to-read displays
• Backlit, 4000 count LCD
• Designed to increase efficiency on the job
• CATIII 600V safety ratings
• ETL and CE approved
• Lifetime Warranty

Technical Information

Brand: Greenlee
Display: Digital
AC Volts: 600
DC Volts: 600
Resistance: 40M Ohms
Continuity/Diode Tests: Yes/Yes
Frequency: Yes
Duty Cycle: 5%~95%
Capacitance: 200uF
Temperature (Type K): Yes
Counts: 4000
Hold: Yes
Reactive: Yes
Backlight: Yes
Automatic Power Off (APO): Yesel



Documents

Instruction Manual
