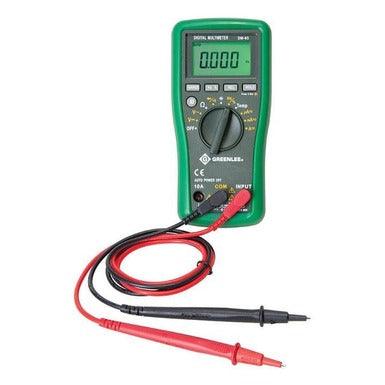

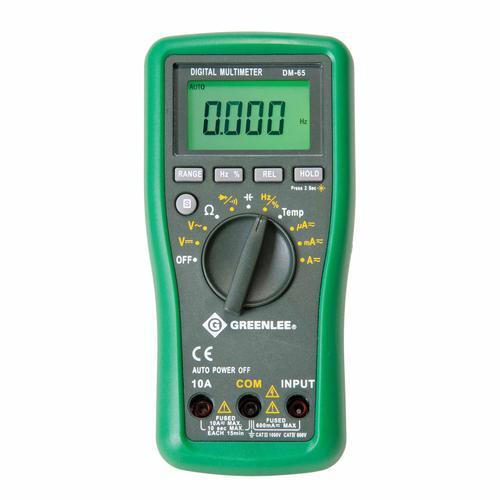

Greenlee Auto Ranging Digital Multimeter (CATIII 1000V), Model DM-65*

Description

Designed for efficiency this product features a CATIII 1000V safety rating with ETL and CE approval. Measures voltage, current, resistance, temperature, frequency, duty cycle, and capacitance, as well as perform diode and audible continuity tests. Features manual and auto-ranging with a relative offset mode that allows you to view changes in measurements.

Benefits

• Equipped for voltage, current, frequency, capacitance and temperature
• Auto and manual ranging design
• Large digital display with analog bar graph
• Fuses are field-replaceable
• Offers battery test and duty cycle
• Frequency, capacitance, duty cycle, temperature, battery test and analog bar graph are just some of the features available on these meters

Technical Information

Brand: Greenlee
Display: Digital with Bar Graph
AC Volts: 1000
DC Volts: 1000
Resistance: 60M Ohms
Continuity/Diode Tests: Yes/Yes
Frequency: Yes
Duty Cycle: 5%~95%
Capacitance: 400uF
Temperature (Type K): Yes
Counts: 6000
Hold: Yes
Relative: Yes
Backlight: Yes
Automatic Power Off (APO): Yes

Documents

Datasheet
