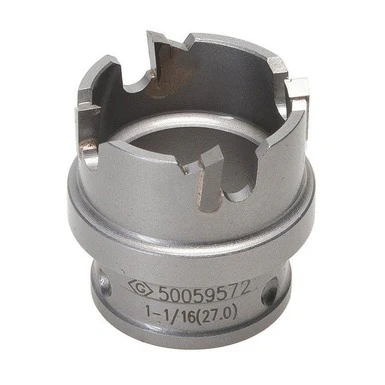

Greenlee Quick Change Stainless Steel Carbide-Tipped Hole Cutter, 1-1/16 Inch, Model 645-1-1/16*

Description

Quick Change Carbide Tipped Hole Cutter 1-1/16" (27.0 mm). Cuts stainless steel quickly and easily. Quick Change arbor allows you to change cutter heads with a simple push and a turn. Use the same arbor for different size cutting heads. Removable cutter heads available in sizes from 5/8" through 3". Flange stop prevents over-drilling. Ejector spring on all sizes above 3/4" makes removal of slug easier. Replaceable, cobalt-steel pilot drill with split-point tip to prevent walking. Precision carbide teeth for optimum performance and durability. Minimum chuck size of 3/8".

** 645-011 arbor sold separately

Features



• Switch quickly between cutter sizes without re-chucking, with a simple push and turn connection
• Split-Point Cobalt Steel Pilot Drill with step design – for fast, accurate metal cutting with less force
• Tungsten Carbide Teeth – optimized design for fast, easy cutting and maximum life in stainless steel – no oil required
• Flange Stop – eliminates over-drilling
• Slug Ejector Spring – quick, easy slug removal
• This metal cutter tool produces round, burr-free holes



Technical Information

Application: Stainless steel, mild steel, aluminum, copper, brass, fiberglass and plastics
Type: Carbide-Tipped Hole Cutter
Hole Size:  1-1/16" (27.0 mm)
Shank Size: 645-011 arbor sold separately (3/8" shank)
Maximum Cutting Size: 8 ga
Cutting Edge: Tungsten Carbide Teeth
Pilot Drill Replacement: 645-001 sold separately
Pilot Drill Size: 1/4" x 2-1/2" (6 mm x 64 mm)
