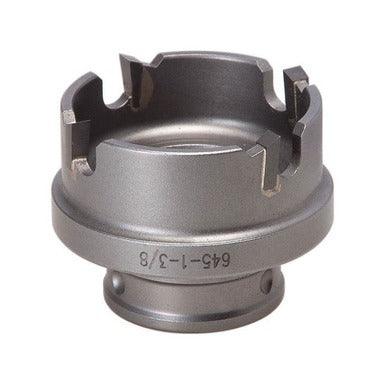

Greenlee Quick Change Stainless Steel Carbide-Tipped Hole Cutter, 1-3/8-Inch, Model 645-1-3/8*

Description

It's easy to drill holes into steel when you have the Greenlee 645-1-3/8 Quick-Change Carbide-Tipped Hole Cutter. It features a design that allows for fast cutter head changes, and the flange stop helps prevent over-drilling from occurring.

** 645-011 arbor sold separately

Benefits

• Switch quickly between cutter sizes without re-chucking, with a simple push and turn connection
• Split-Point Cobalt Steel Pilot Drill with step design – for fast, accurate cutting with less force
• Tungsten Carbide Teeth – optimized design for fast, easy cutting and maximum life in stainless steel – no oil required
• Flange Stop – eliminates over-drilling
• Slug Ejector Spring – quick, easy slug removal
• Cuts round, burr-free holes
• Works well on 1" (2.54 cm) conduit

Technical Information

Brand: Greenlee
Application: Stainless steel, mild steel, aluminum, copper, brass, fiberglass and plastics
Hole Size: 1-3/8" (34.9 mm) for 1" conduit
Type: Carbide-Tipped Hole Cutter
Max Cutting Depth: 8 ga
Cutting Edge: Tungsten Carbide Teeth
Pilot Drill: Replacement 645-001 sold separately
Pilot Drill Size: 1/4" x 2-1/2" (6 mm x 64 mm)

Documents

Brochure

Instruction Manual
