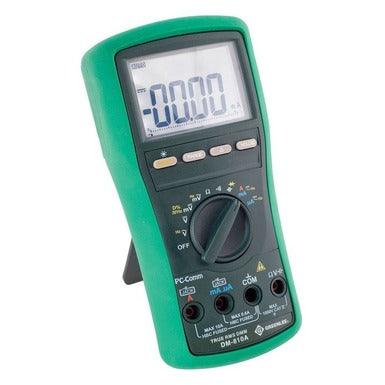

Greenlee True RMS Digital Multimeter, Model DM-810A*

Description

Conduct all your measurements using the Greenlee DM-810A AC/DC Digital Multimeter. Whether you need to check the current, voltage, temperature, frequency, resistance or capacitance, this meter has you covered. It's built with a backlit LCD and comes with test leads.

Benefits

• True RMS for no-compromise accuracy
• Measures voltage, current, resistance, capacitance and frequency
• Tests continuity and diodes
• Backlit LCD with dual 10,000 count displays
• BeepJack warns when test leads are incorrectly inserted in current measurement terminals
• Automatic and manual range selection
• Relative offset mode to see changes in measurements
• Data hold
• Use optional USB interface DMSC-9U for direct-To-PC logging
• Lifetime limited warranty
• Accessories included: (1)9V battery, bead temperature probe (DM-820A, DM-830A only, 400°F/204°C max), test leads, protective boot, carrying case

Technical Information

Brand: Greenlee
Amperage Measurement: 600, 6000μA; 60, 600mA; 6, 10A
Display: Backlit LCD With Dual 10,000 Count
Capacitance: 60, 600nF; 6, 60, 600μF; 6, 25 mF
Conductance: 99.99 nS
Frequency Measurement: 15Hz- 50kHz Sine Wave, 5Hz - 1MHz Logic Level Square Wave
Includes: (1) 9V Battery, Bead Temperature Probe (DM-820A, DM-830A Only, 400°F/204°C Max), Test Leads, Protective Boot, Carrying Case
Measurement Category: CAT IV, 1000 V
Resistance Measurement: 600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
Standard: CAT IV, C/UL US Listed, TRUE RMS, CE Listed
Temperature Rating: K Type, -58 To 1832°F (-50 To 1000°C)
Voltage Measurement: 60, 600 mV, 9.999, 99.99, 999.9 V



Documents

Instruction Manual
