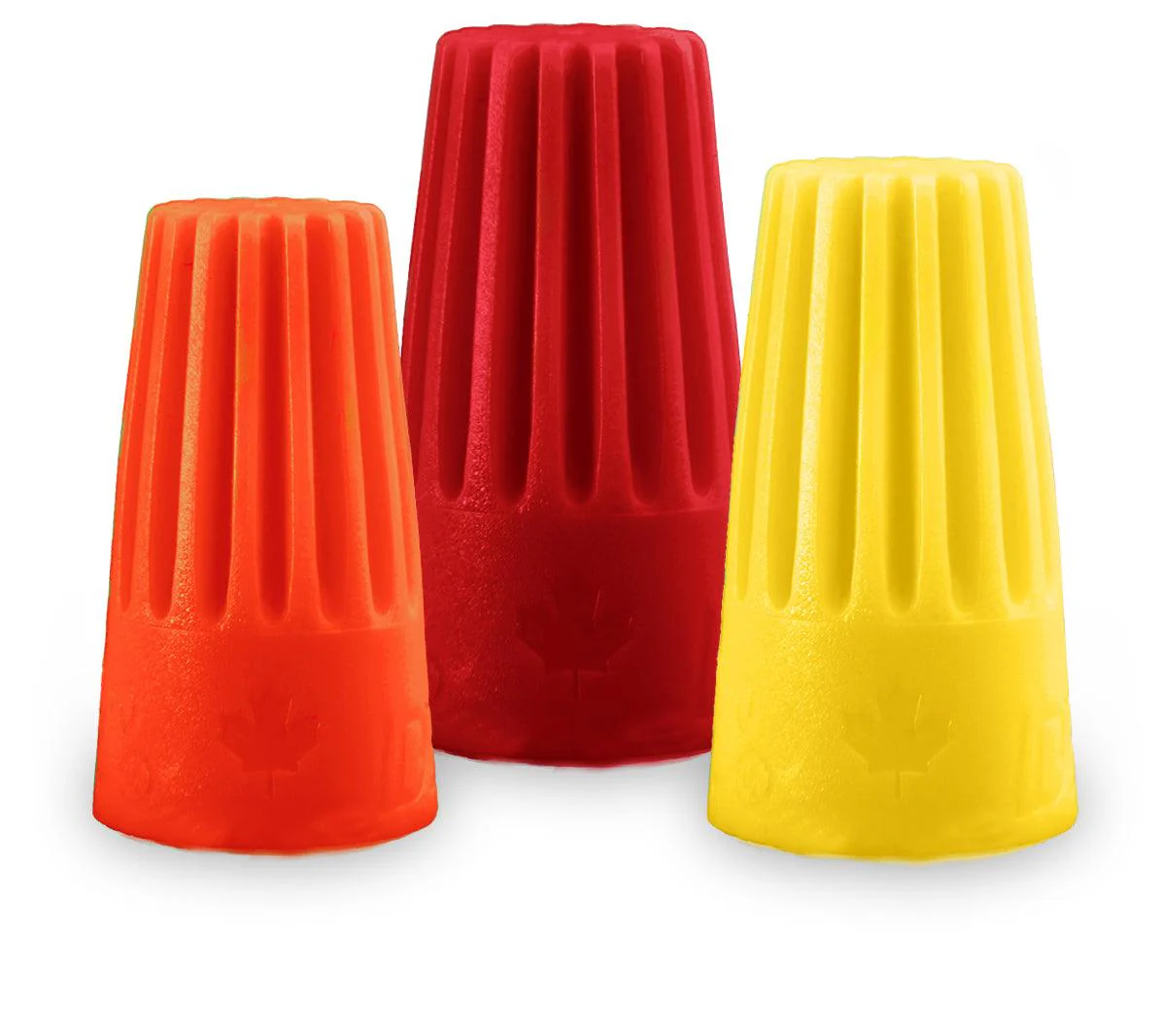

IDEAL C3 Canadian Wiretwist Connectors Package of 100, Model 30-0C3*

Description

The IDEAL Orange Wiretwist Connectors are made in Canada. The C3 are good from 18 to 14 AWG cables. (min. 1x14 AWG + 2x18 AWG / max. 1x10 AWG + 2x14 AWG)

Comes in a package of 100 connectors.

Features

• Made in Canada
• Heavy gauge outer shell for superior dielectric performance
• Stay set spring with enhanced corrosion resistance
• No pre-twisting required
• CSA Certified (CSA 22.2 #188 Certified) and UL Listed for 600V maximum building wire^ and 1000V maximum for signage/fixture applications
• Wire combinations from 18 to 14 AWG (min. 1x14 + 2x18 / max. 1x10 + 2x14)
• Cu/Cu only
• Operating temperature up to 105 ºC / 221 ºF
• Flame-retardant shell

Technical Information

Twist-On Style: Non-Wing
Termination Method: Twist-On
Color: Orange
Minimum Wire Gauge: 18 AWG
Maximum Wire Gauge: 14 AWG
Maximum Rated Voltage: 600V
Quantity: 100/pack
