IDEAL C4 Canadian Wiretwist Connectors, Package of 100, Model 30-0C4

Description

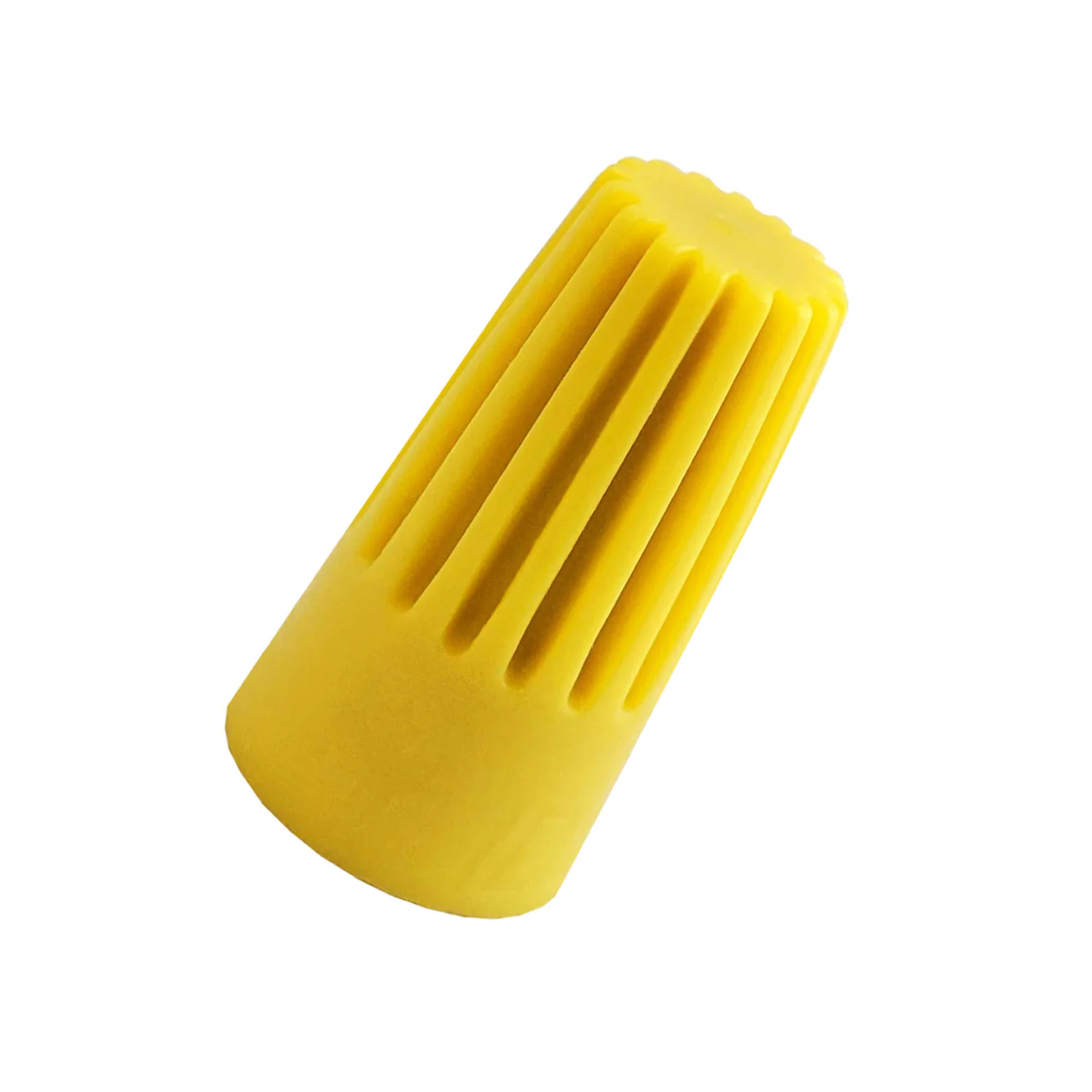

The C4 Canadian Wiretwist connectors are yellow colour-coded. They accept #18 to #10 AWG wire and come with stayset spring, with enhanced corrosion resistance. They are CSA Certified and UL Listed.

The C4 Canadian Wiretwist connectors are reusable. They are shell rated for 105 Degrees Celsius and flame-retardant.

Features

• Made in Canada
• Heavy gauge outer shell for superior dielectric performance
• Stayset spring with enhanced corrosion resistance
• No pre-twisting required
• CSA Certified (CSA 22.2 #188 Certified) and UL Listed for 600V maximum building wire and 1000V maximum for signage/fixture applications
• Wire combinations from 18 to 10 AWG (min. 2x18 / max. 3x14)
• Cu/Cu only
• Operating temperature up to 105 ºC / 221 ºF

Technical Information

Colour: Yellow
Package of 100
Maximum Rated Voltage: 600V
Maximum Temperature: 105°C
Maximum Wire Gauge: 10 AWG
Minimum Wire Gauge: 18 AWG
Termination Method: Twist-On
Twist-On Type: Non-Wing
