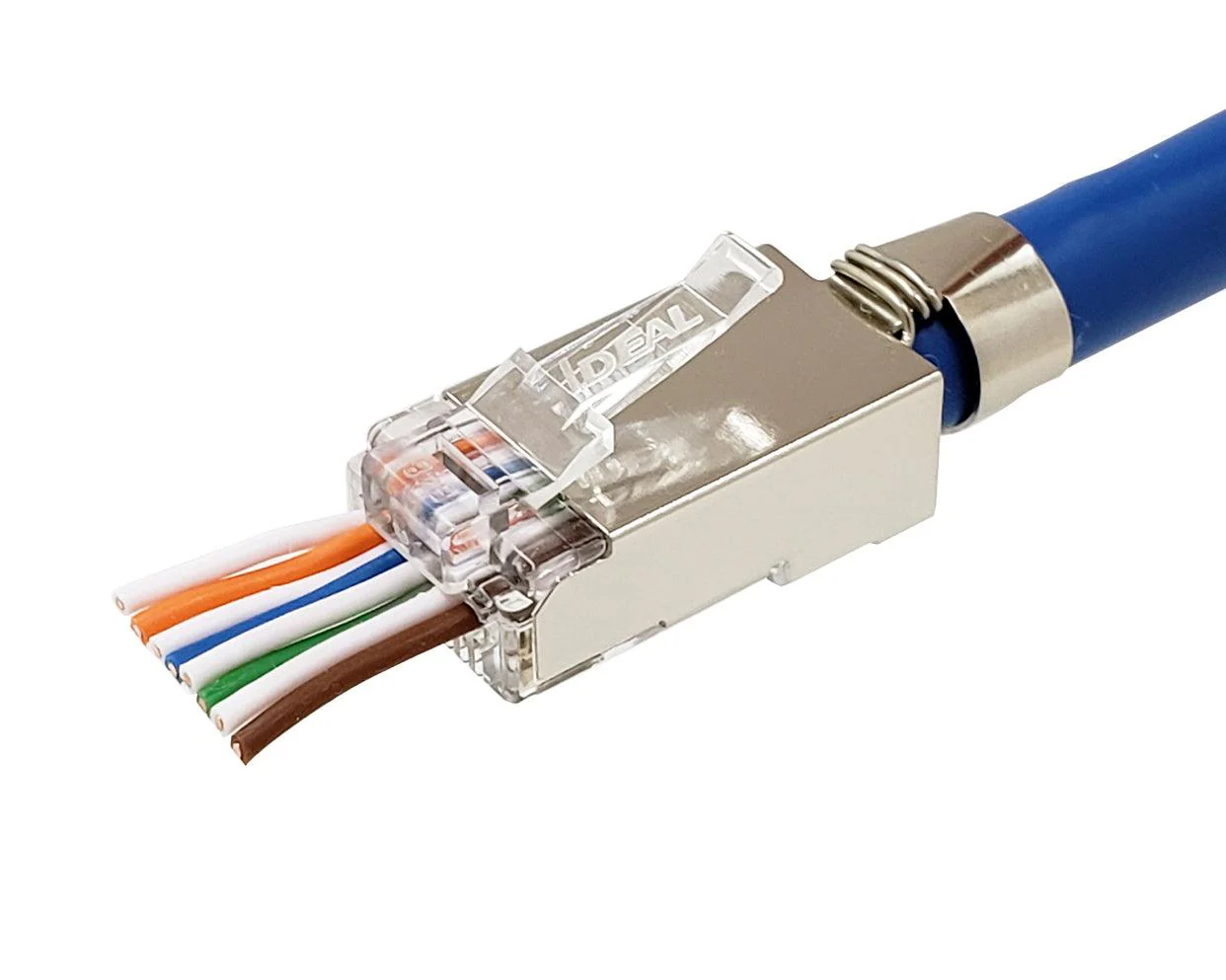

IDEAL CAT6a/a Shielded Feed-Thru Connectors, Jar of 50, Model 85-369*

Description

IDEAL’s Feed-Thru solution gives you the ability to quickly and accurately terminate twisted-pair cabling. Simply Strip and Crimp the cable.

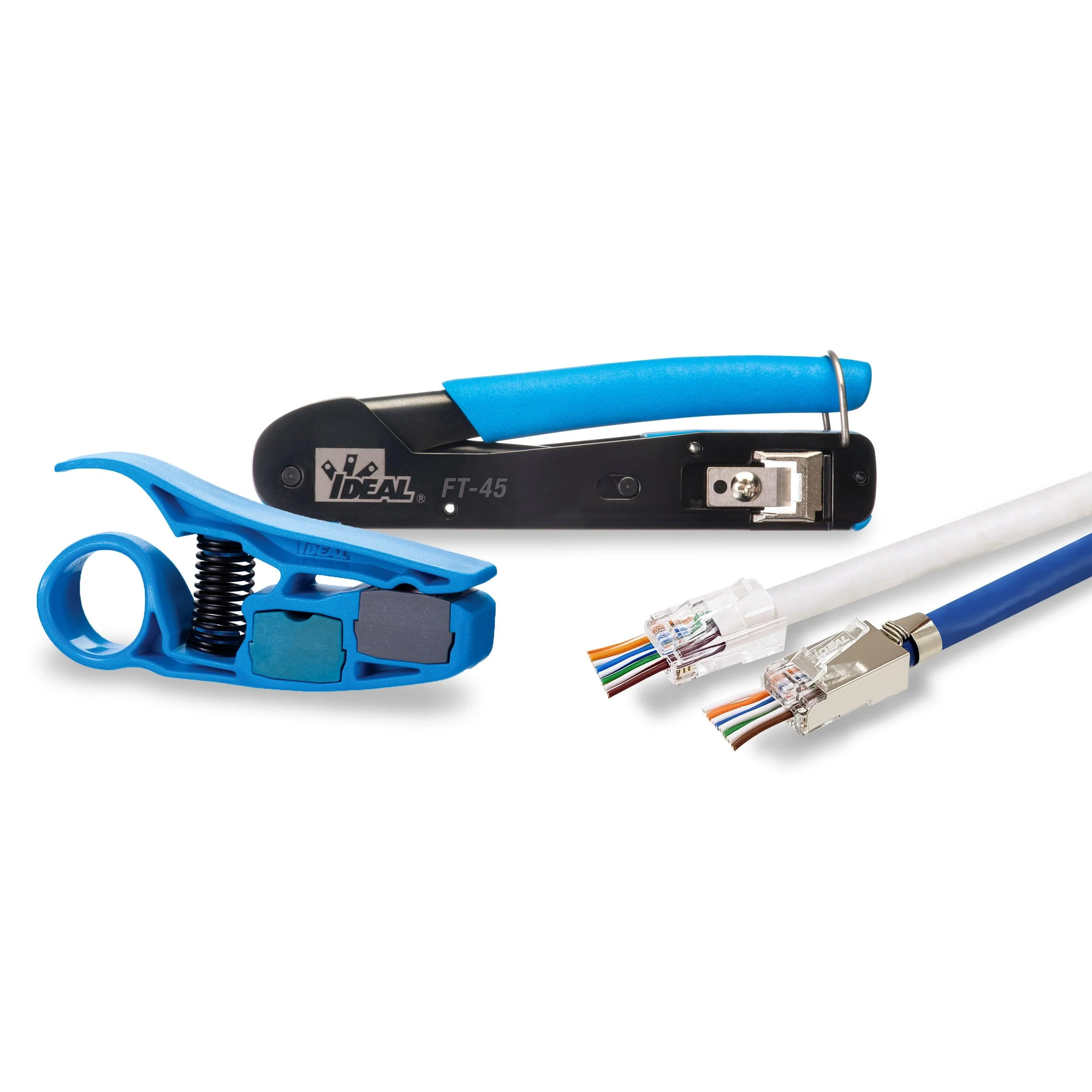

First, use IDEAL’s PrepPro^® Stripper which cleanly scores the cable jacket without nicking inner conductors. Just insert cable and twist! Then, align conductors and feed-thru the single-piece modular plugs - you’ll be able to verify the wires are in the correct order prior to crimping. Finally, use the FT-45^™ tool to crimp and cleanly shear the conductor ends with one squeeze.
Using IDEAL’s Feed-Thru solution you’ll be able to install unshielded and shielded feed-thru connectors on CAT 5e, CAT 6 and 6a cables with ease!

Features

• Single piece, feed-thru design that simplifies the challenges of assembling and terminating twisted pair cables
• Designed for use with CAT6 / CAT6A cable with inner-conductor diameters up to 0.048”
• Integrated strain-relief
• Compatible with IDEAL's FT-45^™ Crimping Tool, which crimps and cleanly shears conductors in one-step. This tool works with ALL our feed-thru and standard connectors (Part number: 30-495)
• Flush cut of excess conductors minimizes inadvertent contact outside of the plug
