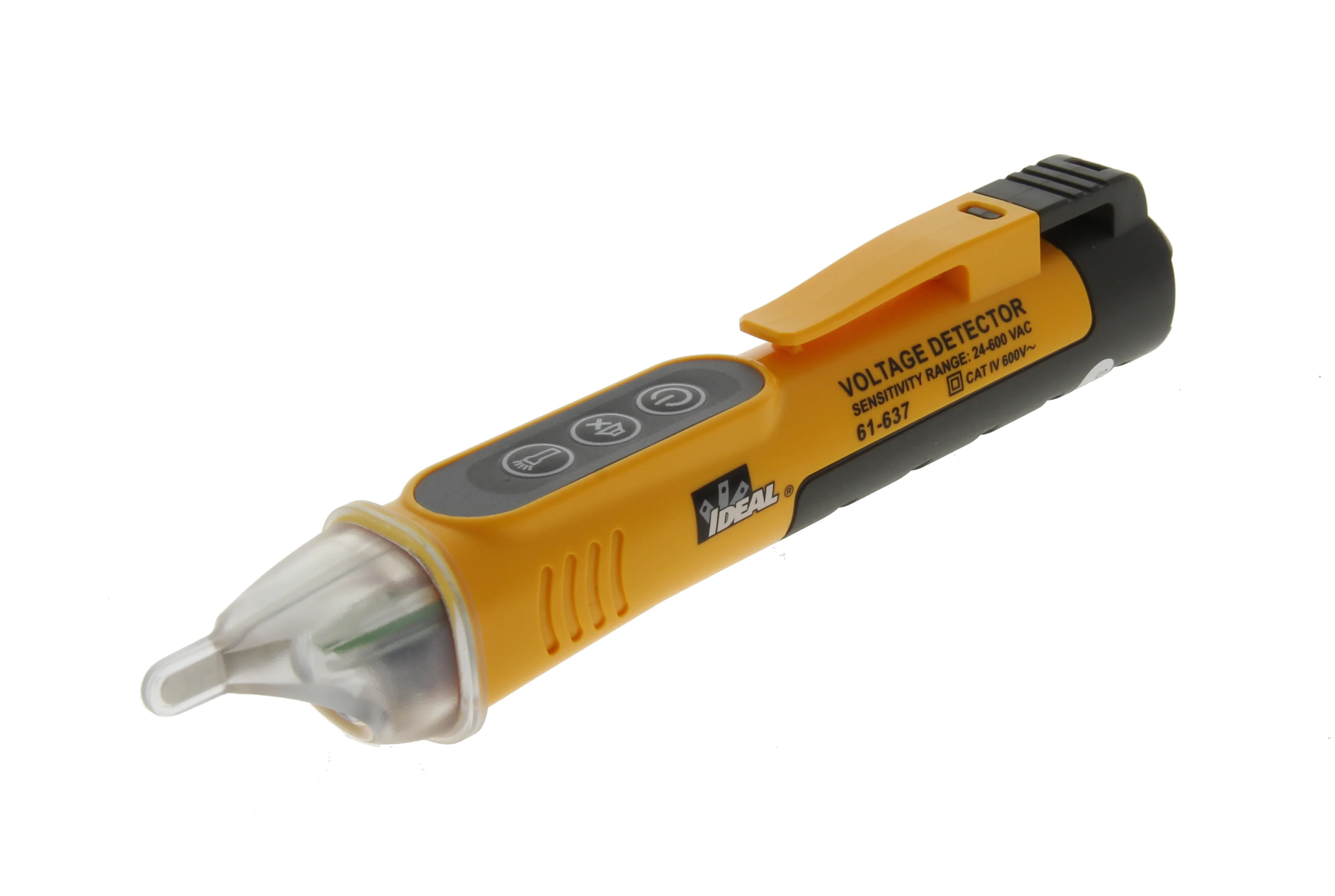

IDEAL Non-Contact Voltage Tester Single Range 24 to 600VAC, Model 61-637
Description
The IDEAL 61-637 is CAT IV 600 V AC, UL Listed, Single Range Non-Contact Voltage Tester that automatically detects and indicates the presence of voltage within range of range of 24 - 600V AC . The tester provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beep that increase in frequency as the voltage level increases. The tester is powered by two 1.5V AAA batteries and features an in tip LED flash light, an audible disable function, a lanyard tie-off point, an auto power off function and a low battery indication.
Features
- UL Certified CAT IV 600V AC, 24 to 600 V AC
- An LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area. Press the Flashlight Button to turn it On/Off. The tester is set to Flashlight Off. The Flashlight will Auto Power Off after 5 minutes.
- Audible Notification Disable - The tester can be operated with a visual only indication of voltage when working in noise sensitive/noise restricted area with the simple press of a speaker button.
- Auto Power Off - After 10 minutes of inactivity (no button pressed and no signals detected), the tester will emit one long beep (~0.5s) and then shut off. Note: if the flashlight is on, it will be also shut off.
- Low Battery Indication - If battery voltage is less than around 2.4V, the green led in the tip will flash 3 times and the buzzer will send out one long beep, then turn off the device.
Technical Information
CAT Rating (Safety): CAT IV 600V
Listing: cULus CE RCM
Voltage Sensing Range: 24 - 600V AC
Dual Range: YNo
Flashlight: Yes
Drop Protection: 3.3 ft. (1m)
Dual Range Sensitivity: No
Audible Indication: Yes
Audible Defeat: Yes
Visual Indication: Green On - Flashing Red
Lanyard Compatible: Yes
Auto-Power Off (APO): Yes
Low Battery Indication: Yes
Battery Type: 2x 1.5V AAA (included)
Warranty: 2-Year
