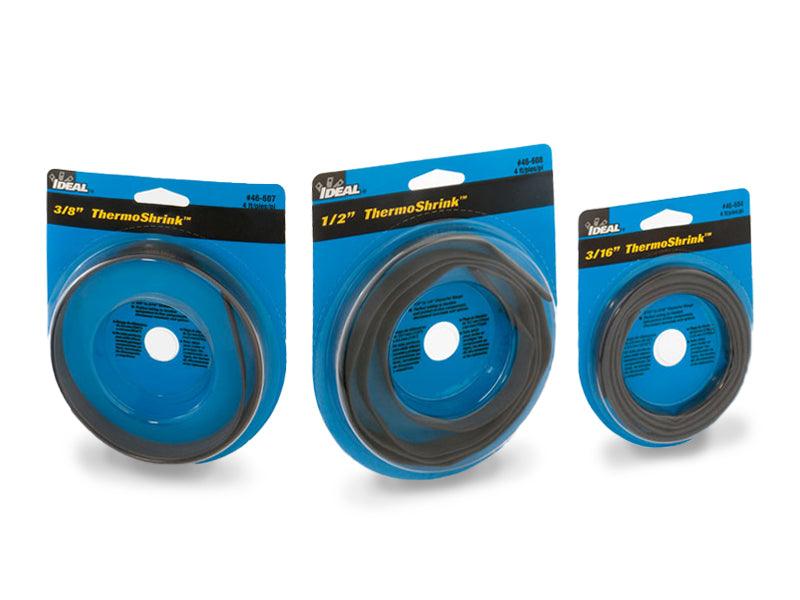

IDEAL Thermo-Shrink 3/8"x4' Heavy-Wall Heat Shrink, Model 46-607*

Description

Ideal Industries Thin-Wall Thermo-Shrink heat shrinkable tubing. Roll of 4' long 3/8" diameter. Suitable for cable range 8 AWG - 4 AWG

Benefits

• Polyolefin material electrically insulates and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience
• Use to bundle wires for very flexible light-duty harnesses
• Highly flame-retardant and flexible; resistant to common fluids and solvents
• Meets UL 486D 125°C VW-1 600V; Material: No PBB’s, PBBE’s, conforms to ROHS
• 2:1 shrink ratio; Minimum shrink temperature: 70°C; Operating temperature: -55°C to +125°C
• RoHS compliant
• UV resistant

Technical Information

Normal Size: 3/8"
Expanded I.D. (Min.) 0.421"/10.7mm
Nominal Recovered I.D. (Max.): 0.185"/4.7mm
Recovered Wall Thickness +/- 10%: 0.022"/0.56mm
Max. Cable Range: 4 AWG
Min. Cable Range: 8 AWG
Heat Shrink Length: 4 ft.
Heat Shrink Type: Thin-Wall
