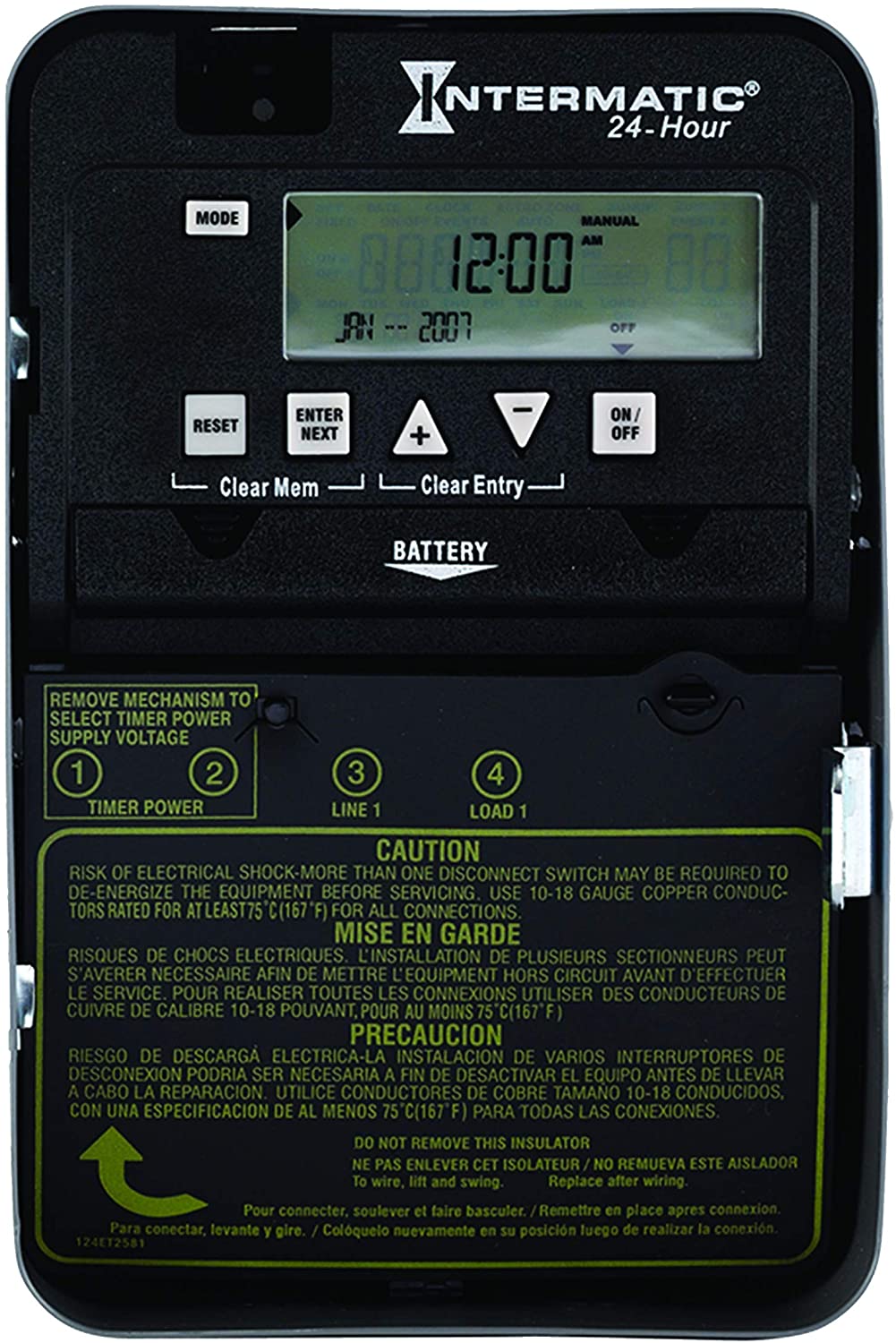

Intermatic 24-Hour 1 Circuit Electronic Control, 120-277VAC, SPST, Indoor Metal Enclosure, Model ET1105C
Intermatic 24-Hour 1 Circuit Electronic Control, 120-277VAC, SPST, Indoor Metal Enclosure, Model ET1105C
Description
This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.
Features
- Selector switch to determine input voltage between 120-277 VAC
- Up to 28 events total
- To-the-minute accuracy
- Temporary override or permanent manual override
- Automatic Daylight Saving Time adjustment
- Astronomic models enable dusk-to-dawn scheduling
Technical Information
Minimum ON/OFF Times: 1 min
Maximum ON/OFF Times: Indefinite
Maximum ON/OFF Operations: 14
Setpoint Program Count: 14
ON/OFF Operations: 14
Operation Mode: 24 hour
Daylight Savings Adjustment: Automatic
Backup Type: Battery
Battery Type: AAA
Battery Service Type: Field Serviceable

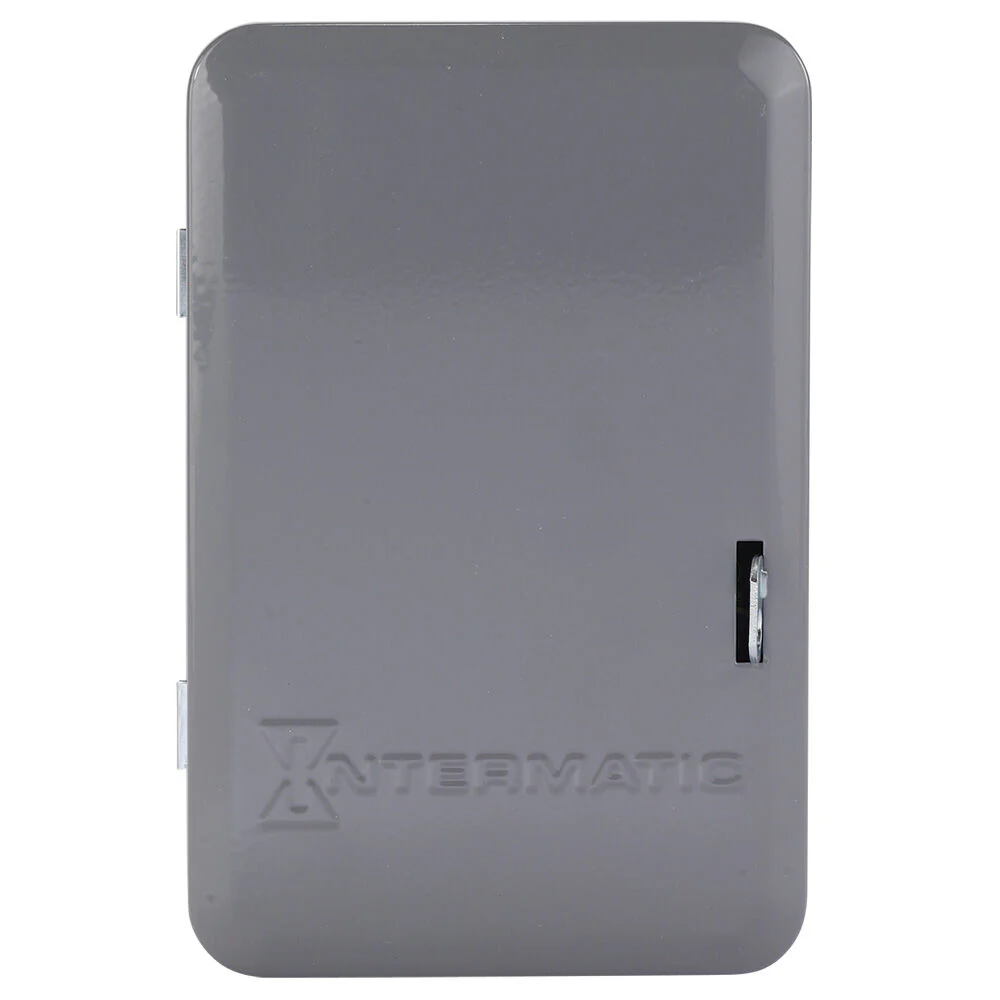

Enclosure Type: Indoor type 1 metal
Product Dimensions (H x W x D) in: 7.875 x 5.125 x 3.4375 in
Wire Size Min: #14 AWG
Wire Size Max: #8 AWG
Knockout Dimensions Bottom: (2) combination 1/2" - 3/4"
Knockout Dimensions Back: (1) combination 1/2" - 3/4"
Load Ratings
Electronic Ballast Load Ratings Ranges: 1 A, 120-277 VAC
Magnetic Ballast (NO) Range(s:) 20 A, 120-277 VAC
Resistive (NO) Range(s): 20 A, 28 VDC; 30 A, 120/240 VAC
Inductive Load Ratings NO Ranges: 30 A, 120/240 VAC
Tungsten (NO) Range(s): 5 A, 120/240 VAC
Motor Load Ratings NO Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC
Voltage Selection Type: Selector Switch
Wiring Option: Terminals
Input Voltage Range(s): 120-277 VAC, 50/60 Hz
Number of Circuits: 1
Switch Type: SPST
Maximum Power Consumption (W): 6 W
Electronic Series: ET1100 Series
Temperature (operation) :-40 °F to 104 °F / (-40 °C to 40 °C)
Country of Origin (Intermatic): CHINA
Warranty Period: 1-Year limited
Document
Original: $235.85
-65%$235.85
$82.55
