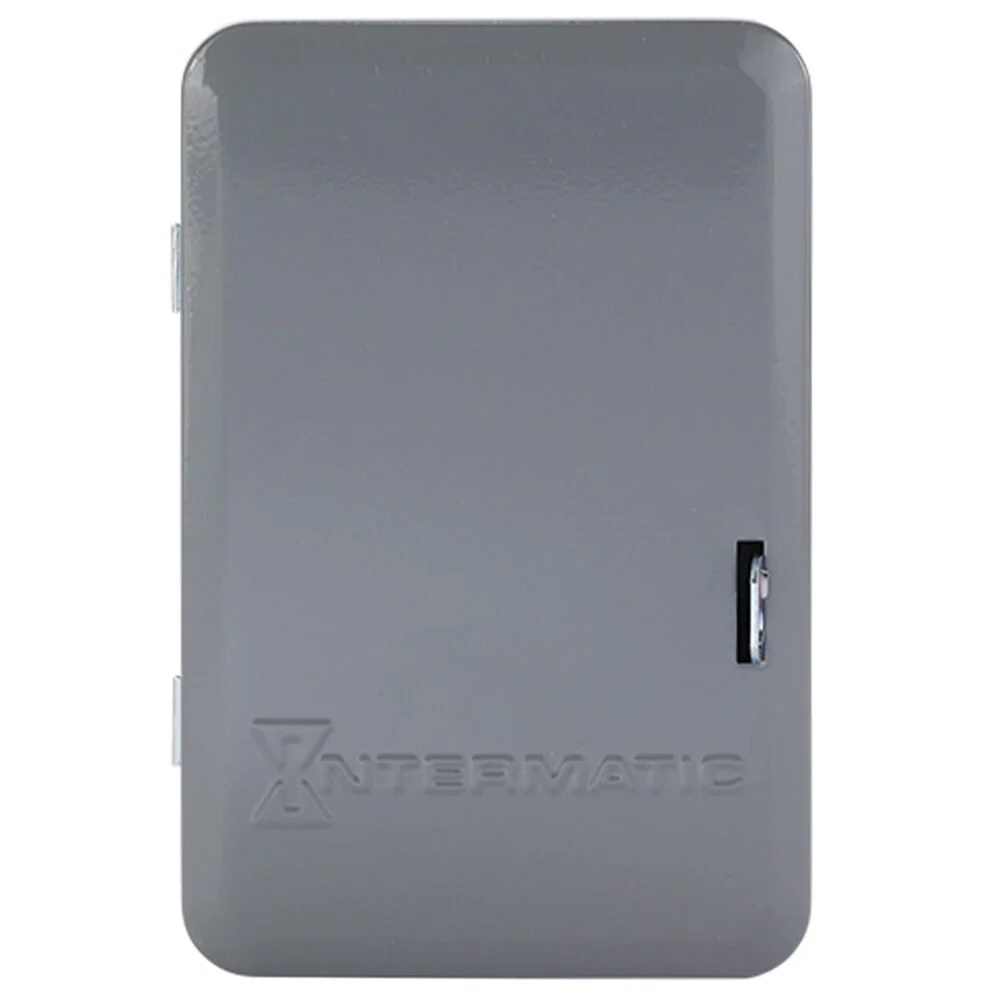

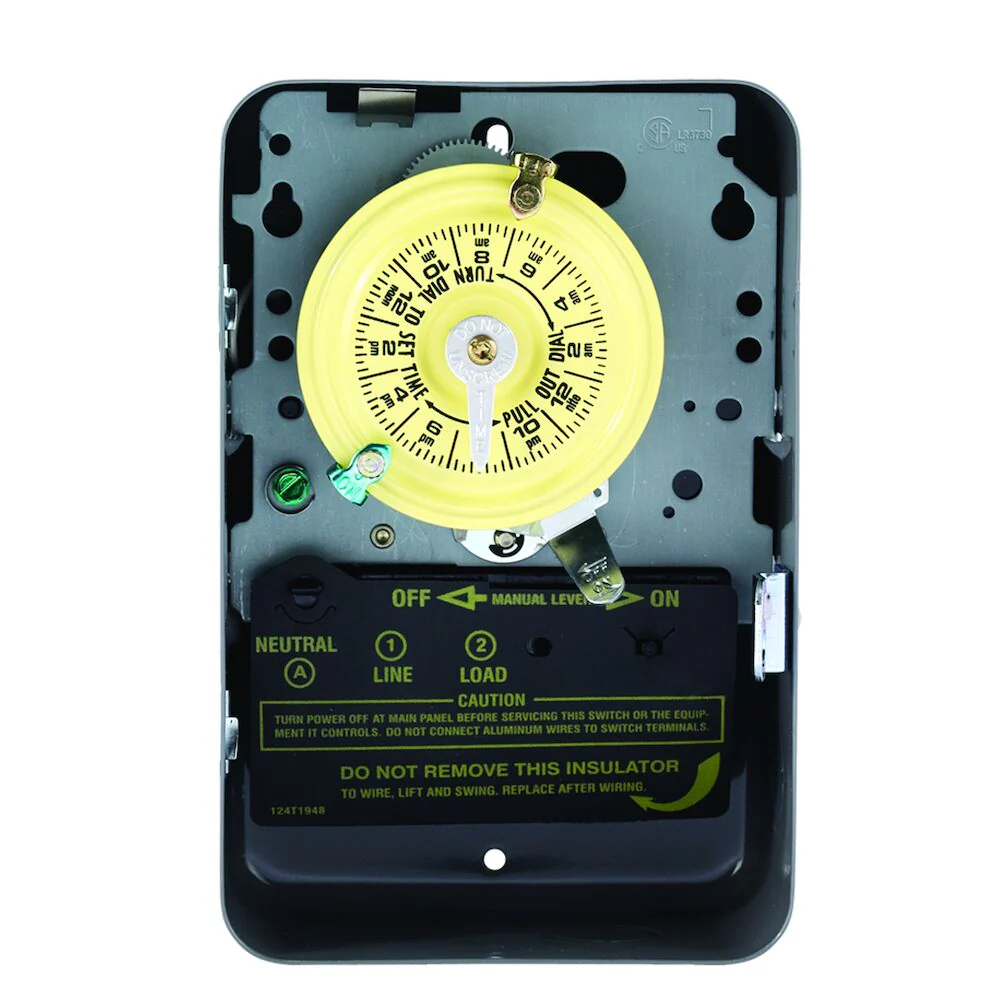

Intermatic 24-Hour Mechanical Time Switch, 120VAC, SPST, Indoor Metal Enclosure, Model T101

Description

The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Features

• Direct 24-hour control of most loads
• Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
• Manual override
• One ON and one OFF tripper included

Technical Information

Minimum ON/OFF Times: 1 hour
Maximum ON/OFF Operations: 12
Skipper Wheel: Not Included
Timing Interval: 1 hr
Operation Mode: 24 hour
Has Manual Override: Yes
Application Compatibilities: LED; HID
Enclosure Type: Indoor type 1 metal
Number of Trippers Included: 1 ON/1 OFF
Product Dimensions (H x W x D) in: 7 7/8 x 5 1/8 x 3 7/16 in
Wire Size Min: #14 AWG
Wire Size Max: #8 AWG
Knockout Dimensions Bottom: (2) combination 1/2" - 3/4"
Knockout Dimensions Back: (1) combination 1/2" - 3/4"
Load Ratings
Tungsten Range(s): 40 A, 120-240 VAC, 60 Hz
Electronic Ballast: 16 A
Electronic Ballast Load Ratings Ranges: 16 A, 120 VAC
Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor: 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
Inductive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz

Wiring Option: Terminals
Input Voltage Range(s): 120 VAC, 60 Hz
Number of Circuits: 1
Switch Type: SPST
Maximum Power Consumption (W): 3 W
Temperature (operation): -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification: cULus
CSA Certification: cCSAus
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
