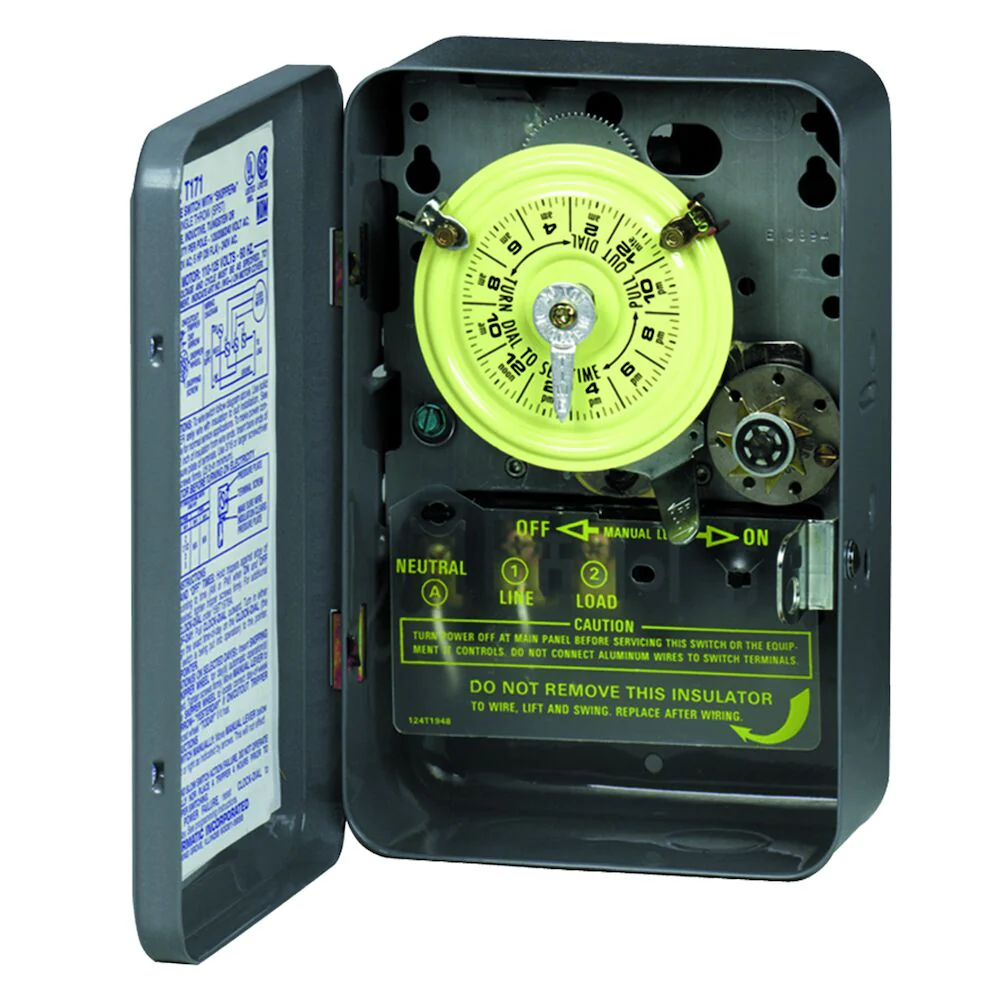

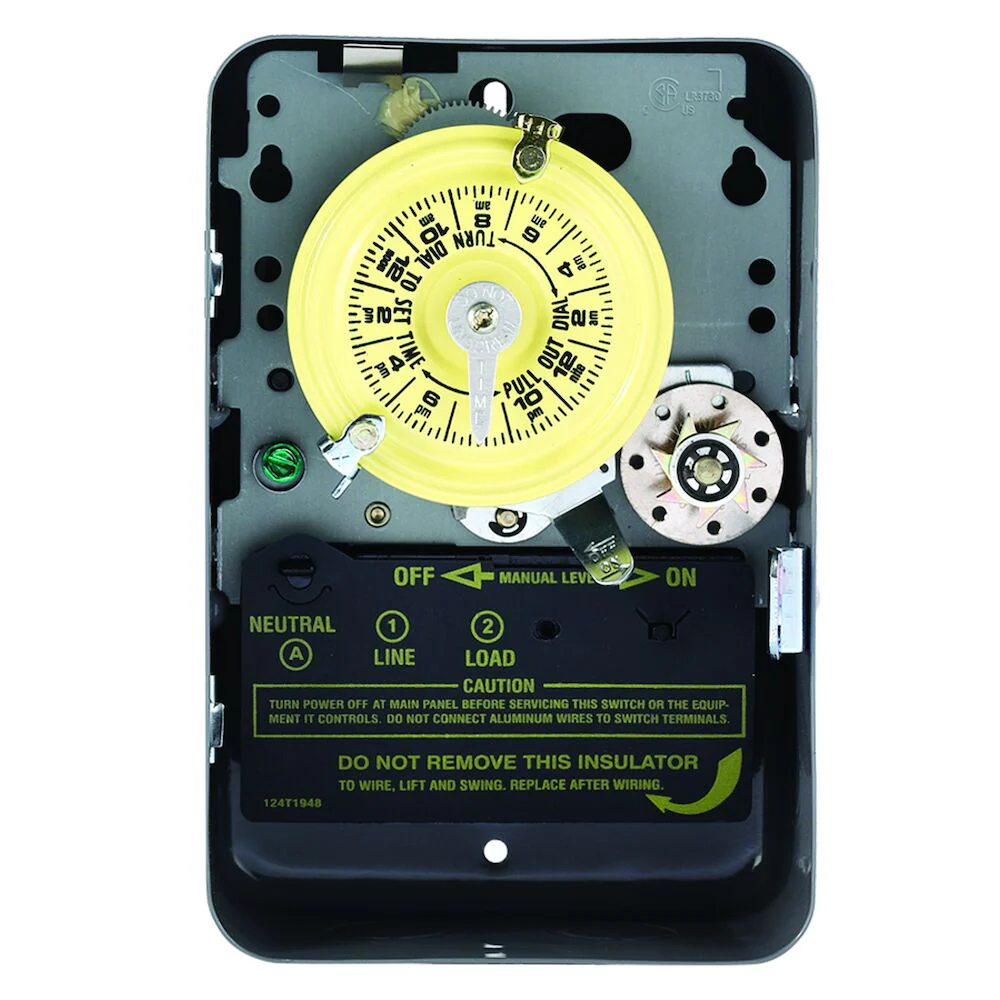

Intermatic 24-Hour Mechanical Time Switch with Skip-A-Day, 120VAC, SPST, Indoor Metal Enclosure, Model T171
Intermatic 24-Hour Mechanical Time Switch with Skip-A-Day, 120VAC, SPST, Indoor Metal Enclosure, Model T171
Description
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features
- Controls loads up to 40 A per pole
- Direct 24-hour control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Technical Information
Minimum ON/OFF Times: 1 hour
Maximum ON/OFF Operations: 10
Skipper Wheel: Not Included
Timing Interval: 1 hr
Operation Mode: 24 hour
Has Manual Override: Yes
Application Compatibilities: LED; HID

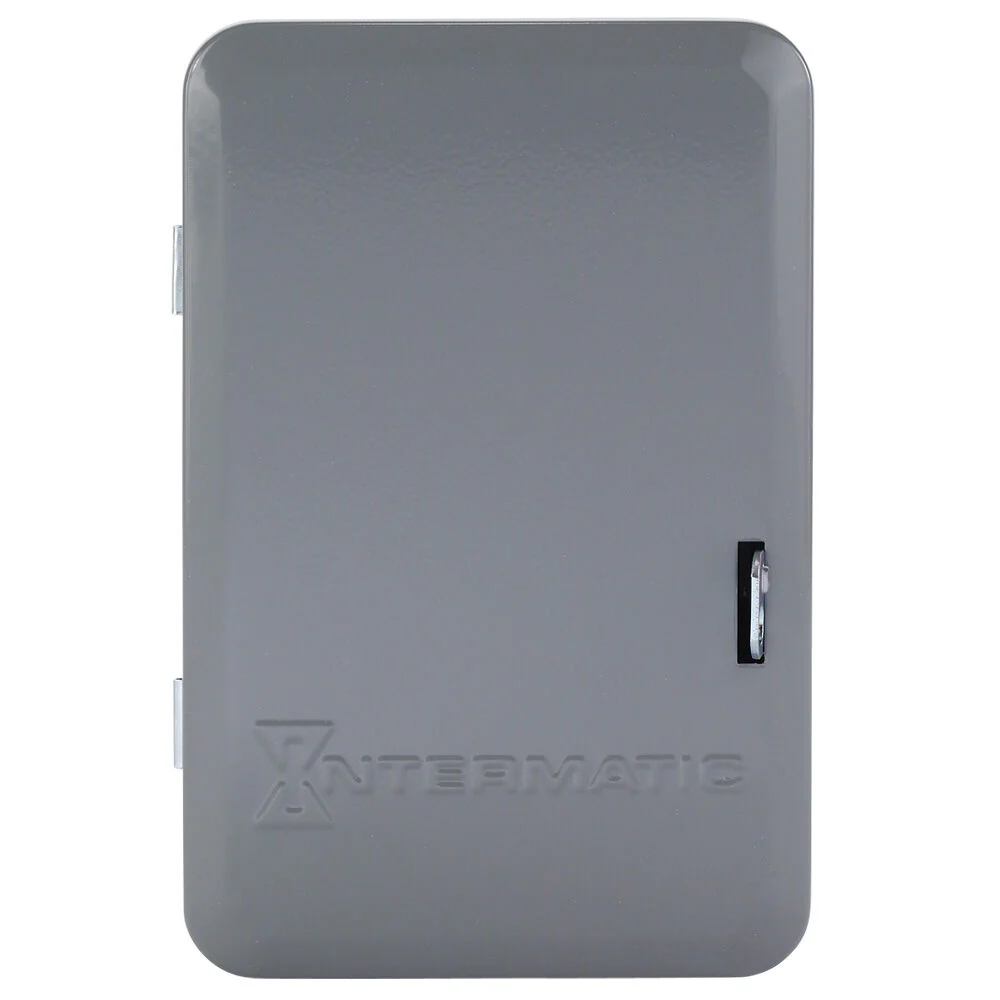

Enclosure Type: Indoor type 1 metal
Product Dimensions (H x W x D) in: 7.875 x 5.125 x 3.4375 in
Wire Size Min: #14 AWG
Wire Size Max: #8 AWG
Load Ratings
Tungsten Range(s): 40 A, 120-240 VAC, 60 Hz
Electronic Ballast: 16 A, 277 VAC, 60 Hz
Electronic Ballast Load Ratings Ranges: 16 A, 277 VAC, 60 Hz
Inductive: 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
Motor: 2 HP, 24 FLA @ 120 VAC, 60 Hz;5 HP, 28 FLA @ 240 VAC, 60 Hz
Resistive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
Inductive Load Ratings Ranges: 40 A, 120-240 VAC, 60 Hz
Pilot Duty Load Ratings Ranges: 1000 VA, 120-240 VAC, 60 Hz
Wiring Option: Terminals
Input Voltage Range(s): 120 VAC, 60 Hz
Number of Circuits: 1
Switch Type: SPST
Maximum Power Consumption (W): 3 W
Temperature (operation): -40 °F to 130 °F / (-40 °C to 54 °C)
UL Certification: cULus
CSA Certification: cCSAus
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
