Intermatic 40A General Purpose Time Control, Model GM40AV
Description

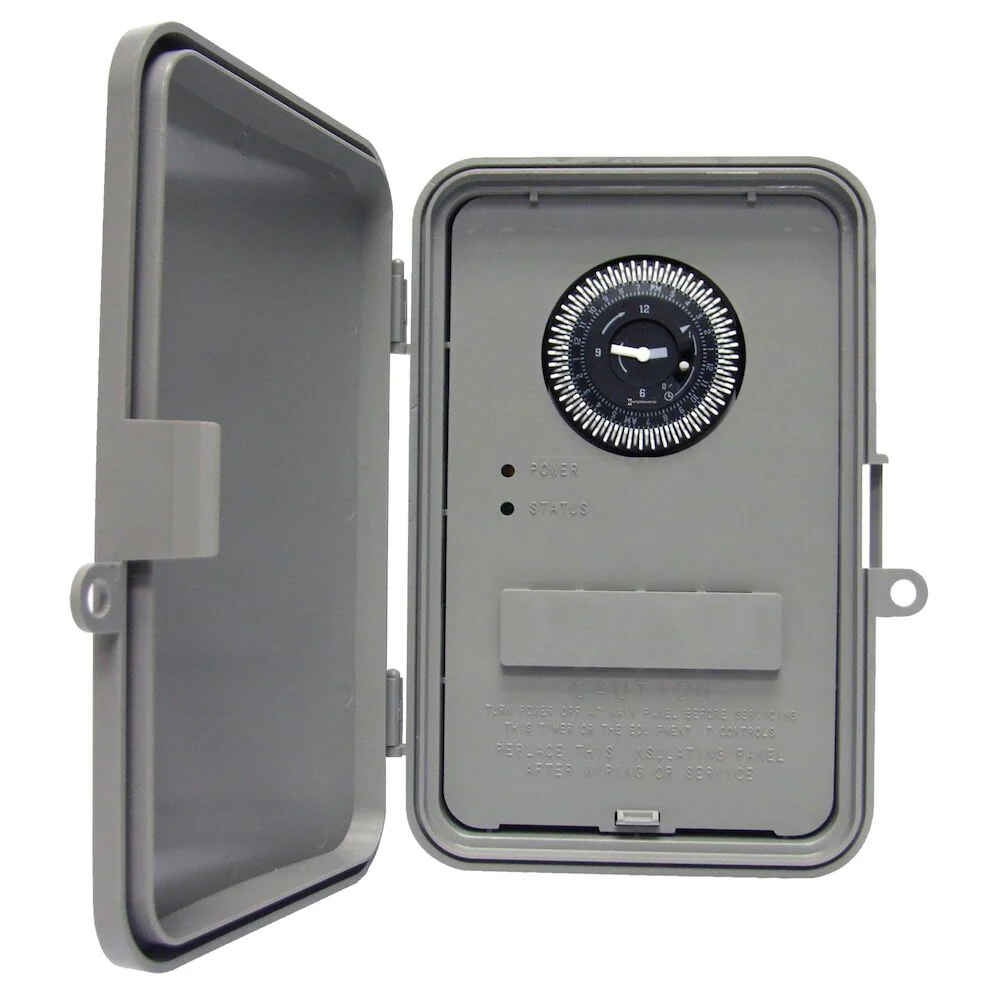

The GM40AV Time Switch is a universal, electromechanical time switch designed for general purpose residential and commercial applications. The robust 40 A time switch automatically detects the input voltage without the use of a DIP switch or selector pins. The time switch automatically selects any voltage between 120-277 VAC. The mechanism is mounted in a compact UL Type 3R outdoor enclosure and can also be easily retrofitted into other Intermatic enclosure types. The time switch features a DPDT switching configuration standard (i.e. two normally open and two normally closed contacts).
Features
- Autovoltage selection 120 VAC-277 VAC
- Captive trippers - trippers cannot be lost
- 40 A rating
- Self-recharging battery backup, "Q" models feature 72-hour carry-over
- Power and status LED indicators
- 24-Hour or 7-day models available
- Up to 48 ON/OFF operations per 24-hour period or 42 ON/OFF operations per week on "W" models
- DPDT switching configuration standard (2 NO and 2 NC Contacts)
- Manual three-way ON/OFF/AUTO override switch
- Easy-to-read clock face
Technical Information
Minimum ON/OFF Times: 15 min
Maximum ON/OFF Operations: 48
Operation Mode: 24 hour
Mechanism Type: Electromechanical
Has Captive Trippers: Yes
Has Override Switch: Yes
Has Real-time Clock Face: Yes
Enclosure Type: Indoor/outdoor type 3R plastic
Number of Trippers Included: 96
Product Dimensions (H x W x D) in: 8 7/8 x 6 39/64 x 3 in
Wire Size Max: #8 AWG
Load Ratings
Magnetic Ballast (NO) Range(s): 30 A, 120 VAC; 20 A, 277 VAC
Magnetic Ballast (NC) Range(s): 10 A, 277 VAC
Resistive (NO) Range(s): 40 A, 120-277 VAC
Resistive (NC) Range(s): 30 A, 120-277 VAC
Pilot Duty (NO) Range(s): 300 VA, 120-240 VAC
Pilot Duty Load Ratings Ranges: 300 VA, 120-240 VAC
Motor Load Ratings NC Ranges: 1 HP, 12 FLA, 30 LRA @ 120 VAC; 2 HP, 10 FLA, 30 LRA @ 240 VAC
Motor Load Ratings NO Ranges: 1 HP, 16 FLA, 90 LRA @120 VAC; 2 HP, 12 FLA, 52 LRA @ 208-277 VAC
Voltage Selection Type: Auto Voltage
Wiring Option: Screw box lug
Input Voltage Range(s) Auto Voltage: 120-277 VAC, 60 Hz
Switch Type: DPDT
Electrical Life: 50,000 operations at full load
Operating Humidity: 0-95% RH, Non-condensing
Temperature (operation): -40 °F to 131 °F / (-40 °C to 55 °C)
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
