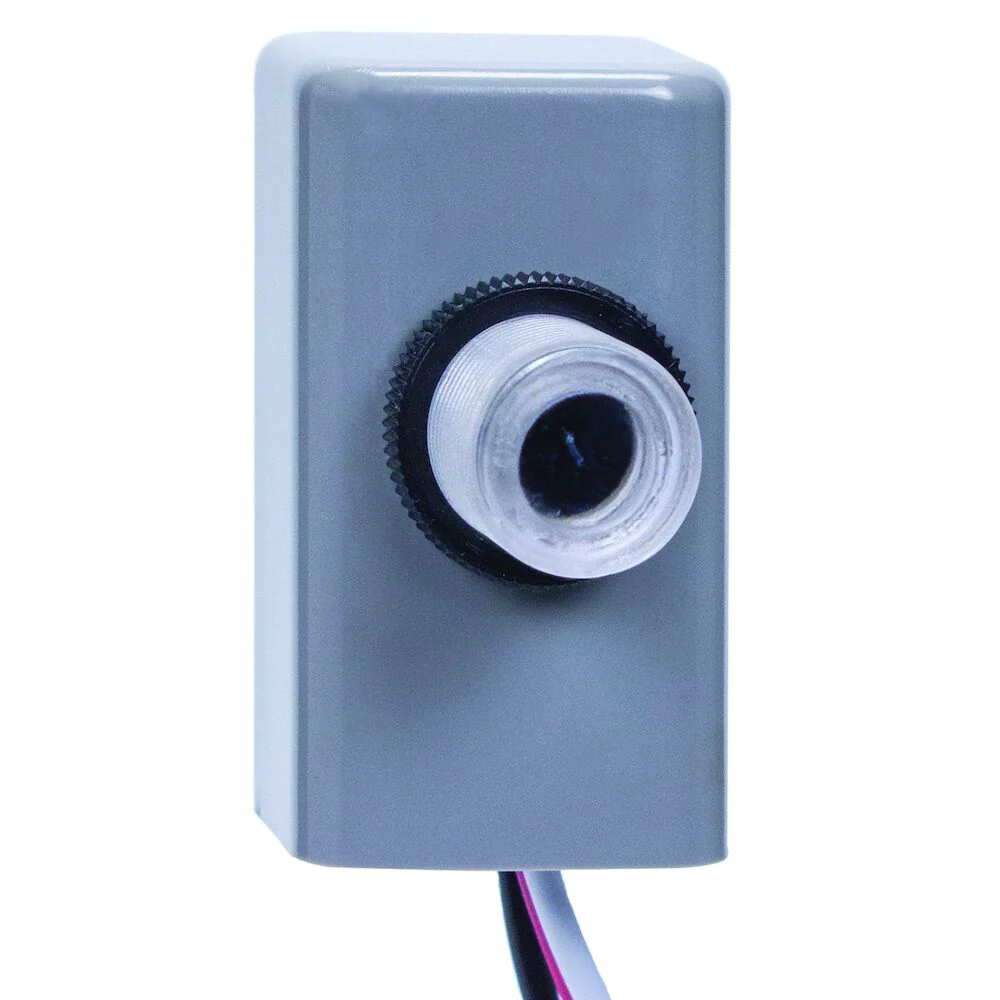

Intermatic Button Electronic Photocontrol, 120-277V, Model EK4036S
Description
NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. Mounts internally to an enclosure with a minimum installation hole size of 5/8” diameter. Comes with 9" wire leads.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- Conformal coated PCB
- 15-year design life
- Exceeds 10,000 ON/OFF switching cycles
- Fail ON mode
- Ideal for single or multi-fixture HID and LED installations (up to 1,650 W @ 277 VAC)
- 255 J MOV surge protection element
- Mounts internally to enclosure.
- Features 3/8" - 18 NPSM thread for a minimum installation hole size of 5/8 inch diameter
Technical Information
Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF
Photocell Type: Silicon Diode
Photo Control Switch Type: Relay
Fail Mode: ON
Activation On: 1.5 fc
Activation Off: 4.5 fc
Photocontrol Type: Electronic
Application Compatibilities: LED; Incandescent; HID
Photocontrol Style: Button
Photocontrol Sensor Location: Front
Product Height (in): 2 1/4
Product Height (mm): 57.2
Product Width (in): 1 5/16
Product Width (mm): 33.3
Product Depth (in): 1 1/4
Product Depth (mm): 31.8
Wire Lead Length (in): 9
Wire Lead Length (mm): 228.6
Wire Size Max: #18 AWG
Cover Color: Gray
Housing Material: Polycarbonate
Load Ratings
Tungsten Range(s): 1000 W
Ballast Fluorescent Ranges: 1800 VA
Electronic Ballast Load Ratings Ranges: 6 A, 120-277 VAC, 50/60 Hz
Wiring Option: Wire leads
Input Voltage Range(s): 120-277 VAC, 50/60 Hz
Surge Protection Technology: 255 J MOV, 5,000 A Surge
Country of Origin (Intermatic): MEXICO
Warranty Period: 8-Year limited
Document
Original: $30.30
-65%$30.30
$10.61
