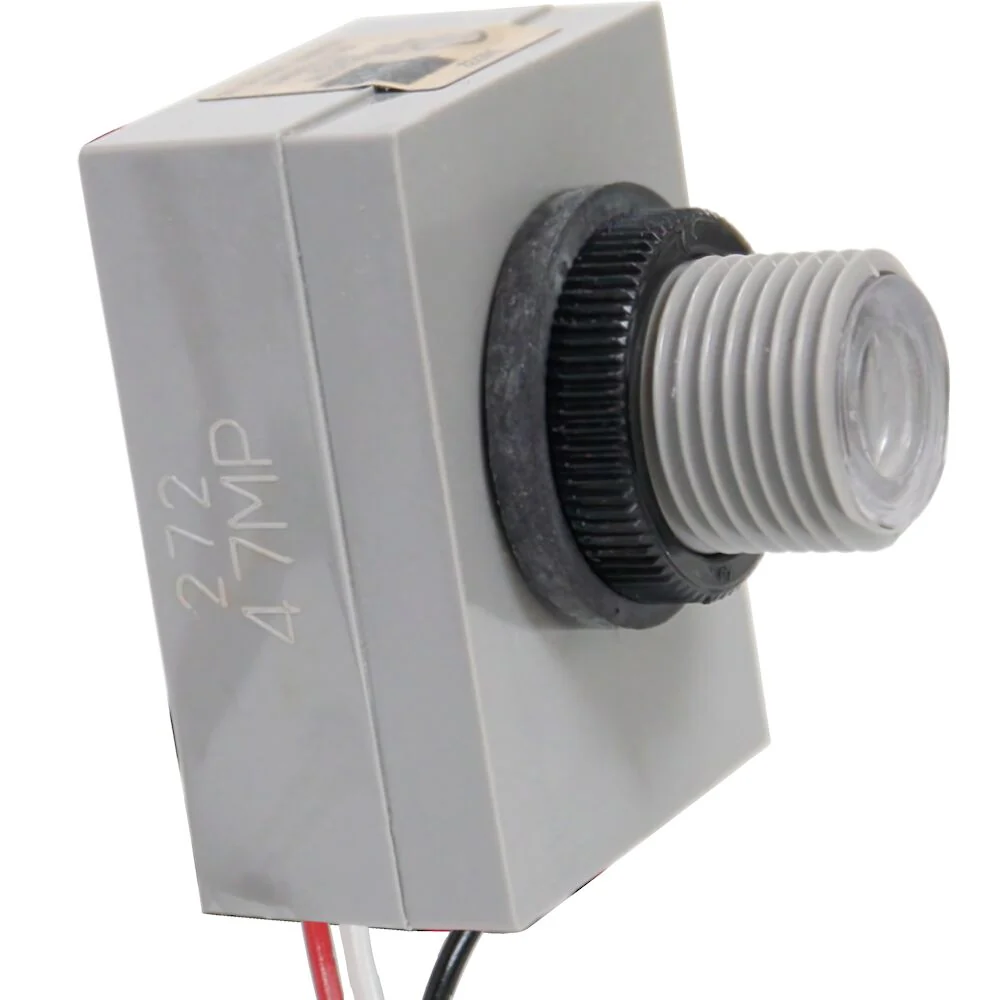

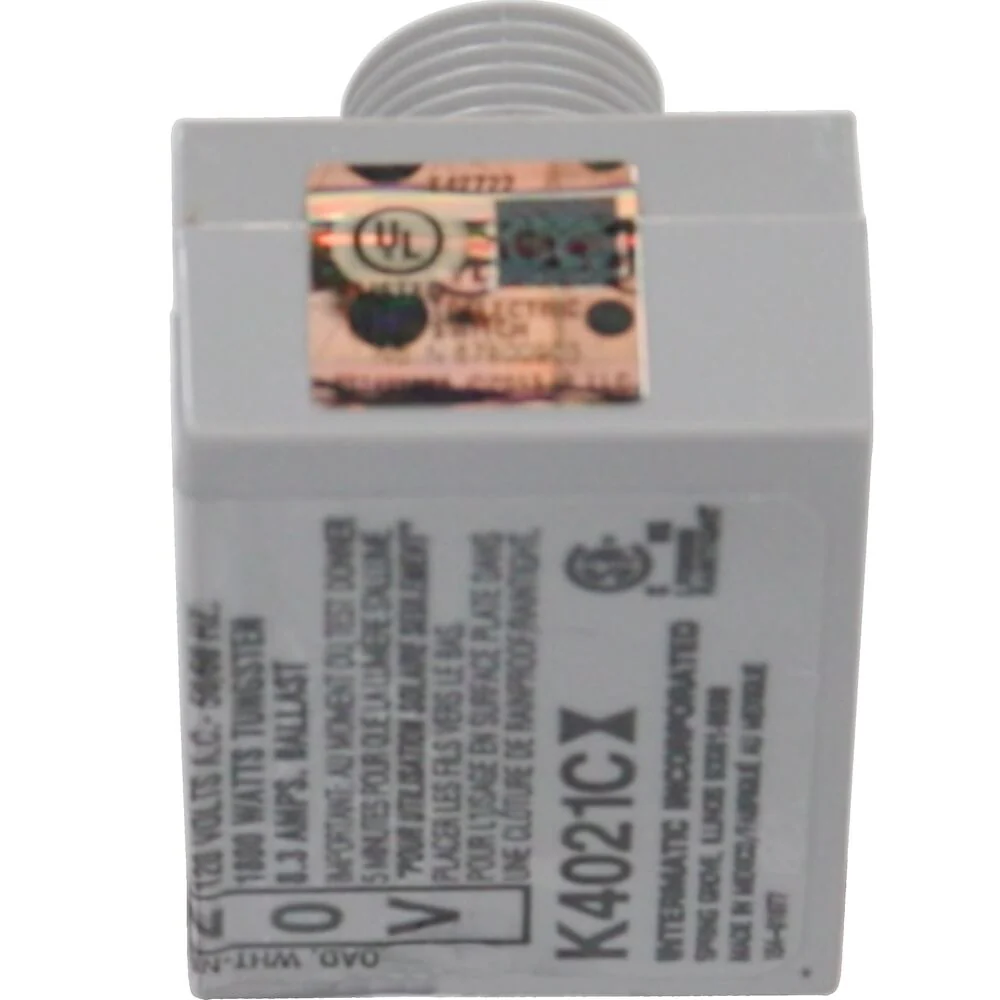

Intermatic Button Thermal Photocontrol, 120V, Model K4021C

Description

These photocontrols install within lighting fixtures, post lamps, or in-wall boxes to provide dusk-to-dawn ON/OFF control of outdoor lighting.

Features

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures
• Delay feature prevents unwanted OFF switching
• 3/8"-18 NPSM, 3/4" long stem with locking nut and washer gasket

Technical Information

Sensor Time Delay: 30 sec to 90 sec
Photocell Type: Cadmium Sulfide
Photo Control Switch Type: Mechanical Bimetal
Fail Mode: ON
Activation On: 1 to 5 fc
Activation Off: 3 to 15 fc
Photocontrol Type: Thermal
Application Compatibilities: HID; Fluorescent; Incandescent
Photocontrol Style: Button
Photocontrol Sensor Location: Front

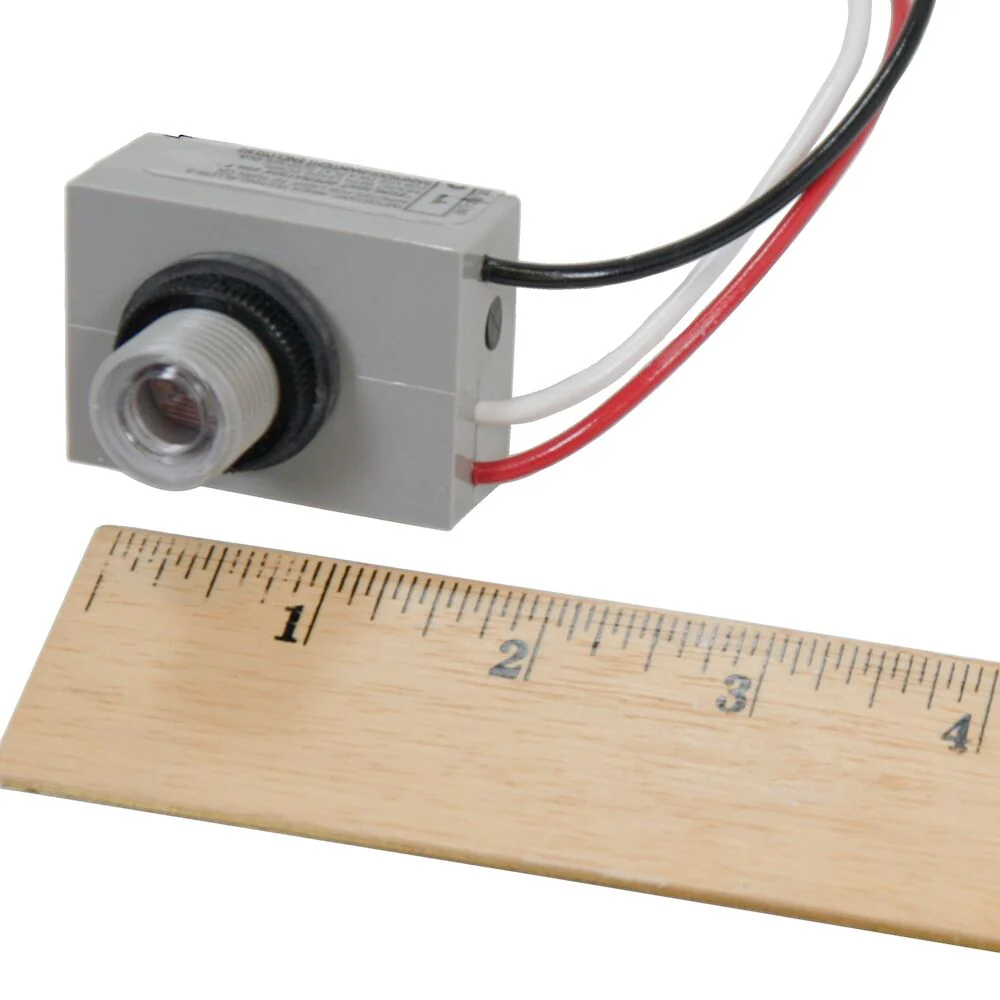

Product Height (in): 1 13/16
Product Height (mm): 46
Product Width (in): 15/16
Product Width (mm): 23.8
Product Depth (in): 13/16
Product Depth (mm): 20.6

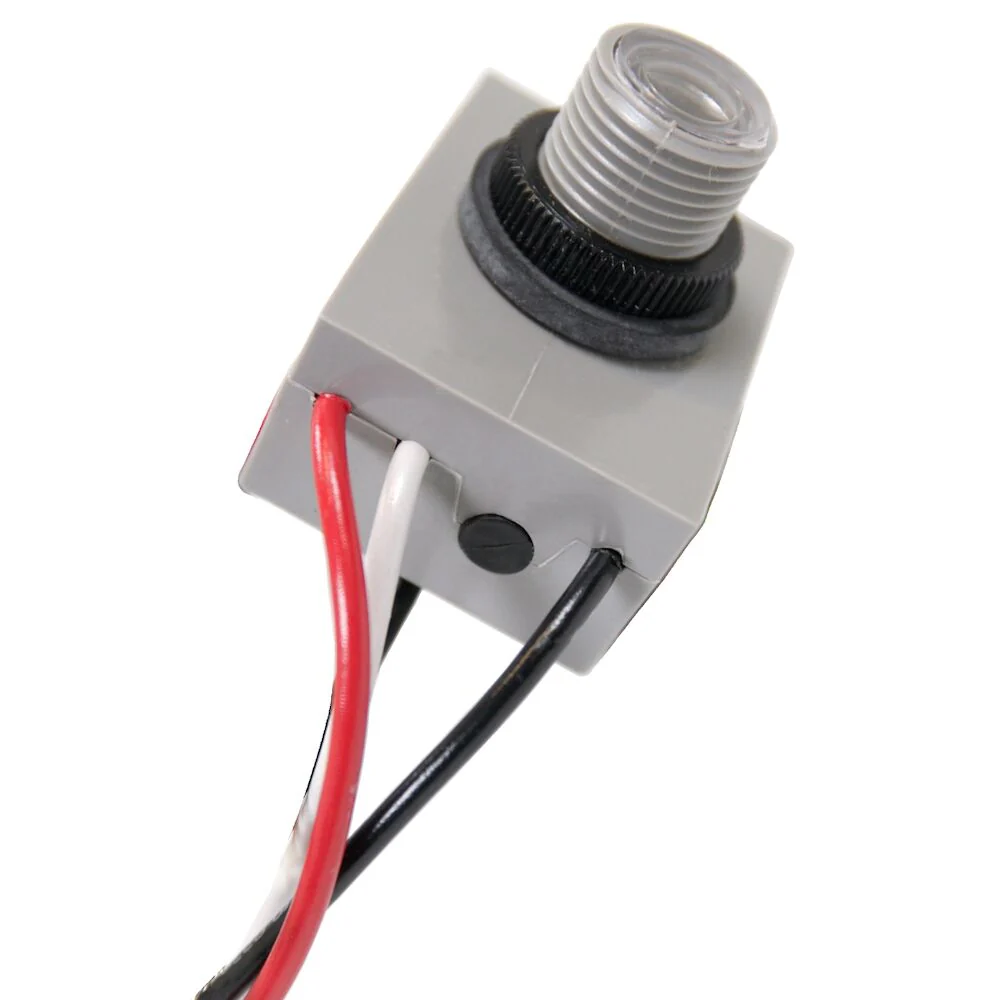

Wire Lead Length (in): 9
Wire Lead Length (mm): 228.6
Wire Size Max: #18 AWG
Cover Color: Gray
Housing Material: Polycarbonate
Load Ratings
Magnetic Ballast Range(s): 8.3 A, 1000 VA
Tungsten Range(s): 15 A, 1800 W

Wiring Option: Wire leads
Input Voltage Range(s): 120 VAC, 50/60 Hz
Expected Lifetime (Years): 5
Expected Lifetime (Operations): 3650
Temperature (operation): -40°C..70°C
Usage Environments: Outdoor
Country of Origin (Intermatic): MEXICO
Warranty Period: 2-Year limited
