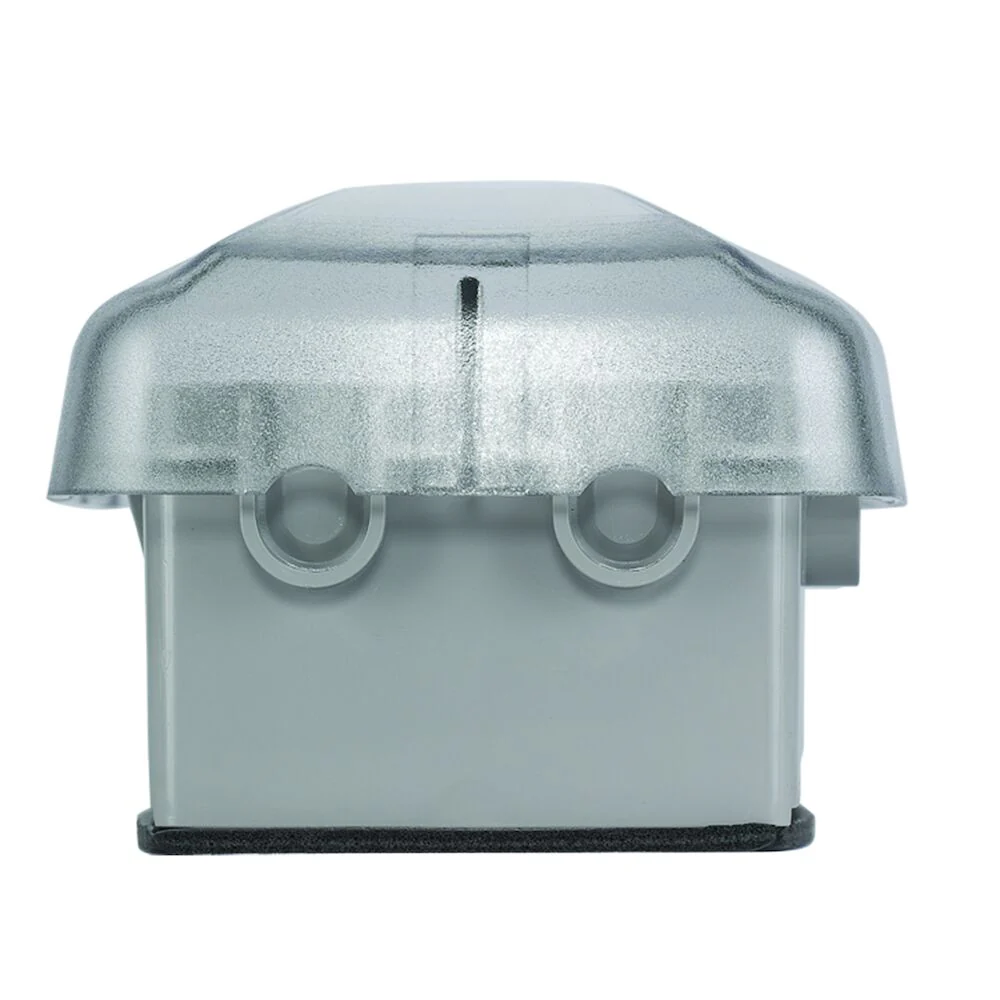

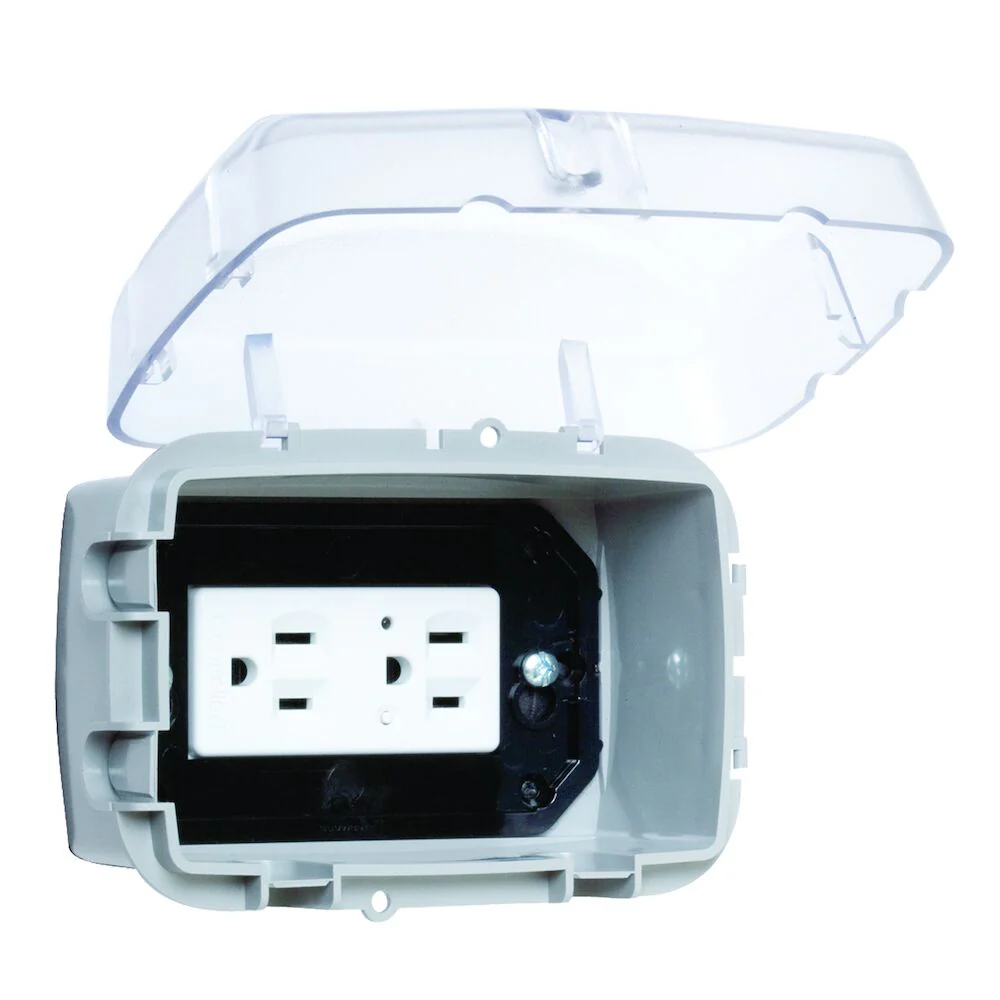

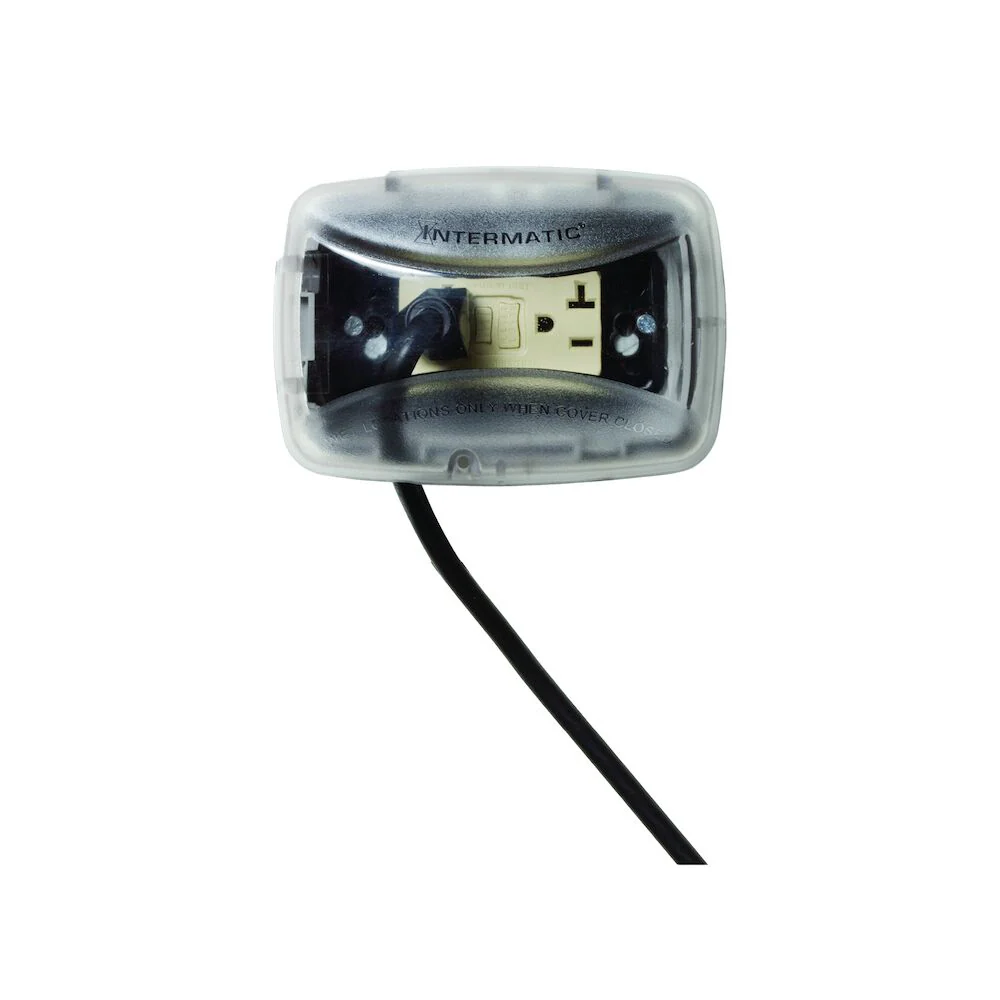

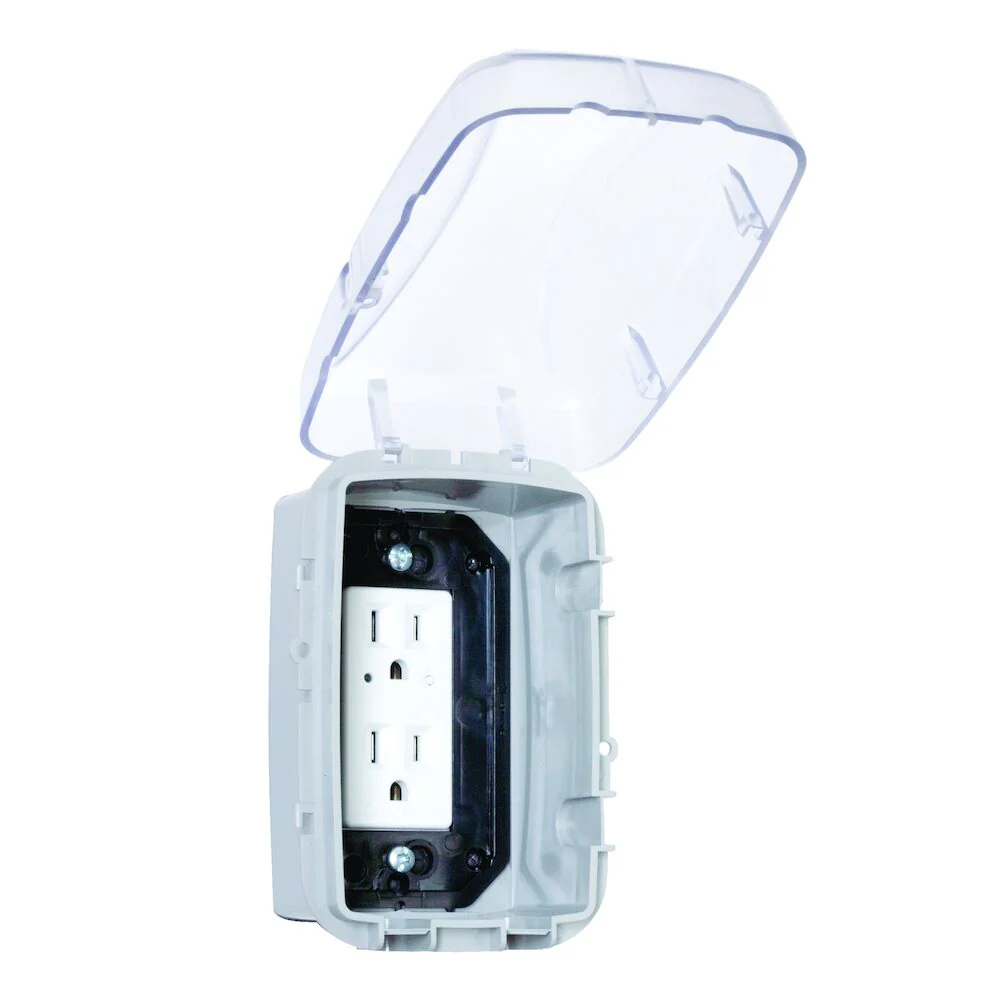

Intermatic Clear Vertical/Horizontal Plastic In-Use Weatherproof Cover, Single Gang 2.75" Deep, Model WP3100C
Intermatic Clear Vertical/Horizontal Plastic In-Use Weatherproof Cover, Single Gang 2.75" Deep, Model WP3100C
Description
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Features
- Complies with 2020 NEC Article 314.15 for damp and wet locations
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1⁄8" (3 mm) dia shank
- Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
- Max cord size: (2) #14 AWG or (1) #12 AWG
- Mounts vertically or horizontally
- Warranty: 1-year limited
Technical Information
Number of Included: Inserts 3
Insert Types Included: WP17
Hinge Direction: Vertical/Horizontal
Is Extra-Duty Rated: No
Product Dimensions (H x W x D) in: 5 3/4 x 4 x 2 3/4 in
Accepted Cord Size: Max 2x14 AWG; 1x12 AWG
Box Type: Single
Color: Clear
Weatherproof Cover Material: UV Stabilized Plastic
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
Document
Original: $5.73
-65%$5.73
$2.01
Description
Description
Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Features
- Complies with 2020 NEC Article 314.15 for damp and wet locations
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
- 1⁄8" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1⁄8" (3 mm) dia shank
- Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
- Max cord size: (2) #14 AWG or (1) #12 AWG
- Mounts vertically or horizontally
- Warranty: 1-year limited
Technical Information
Number of Included: Inserts 3
Insert Types Included: WP17
Hinge Direction: Vertical/Horizontal
Is Extra-Duty Rated: No
Product Dimensions (H x W x D) in: 5 3/4 x 4 x 2 3/4 in
Accepted Cord Size: Max 2x14 AWG; 1x12 AWG
Box Type: Single
Color: Clear
Weatherproof Cover Material: UV Stabilized Plastic
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
