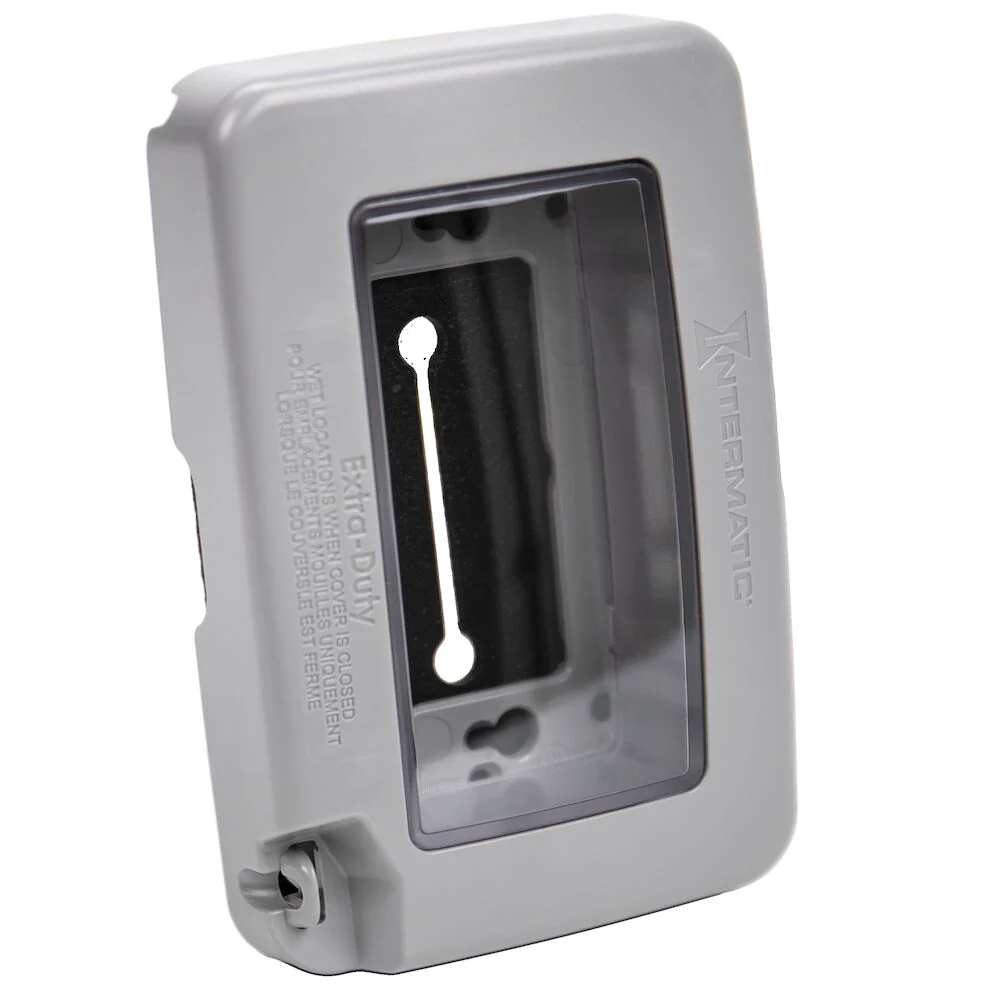

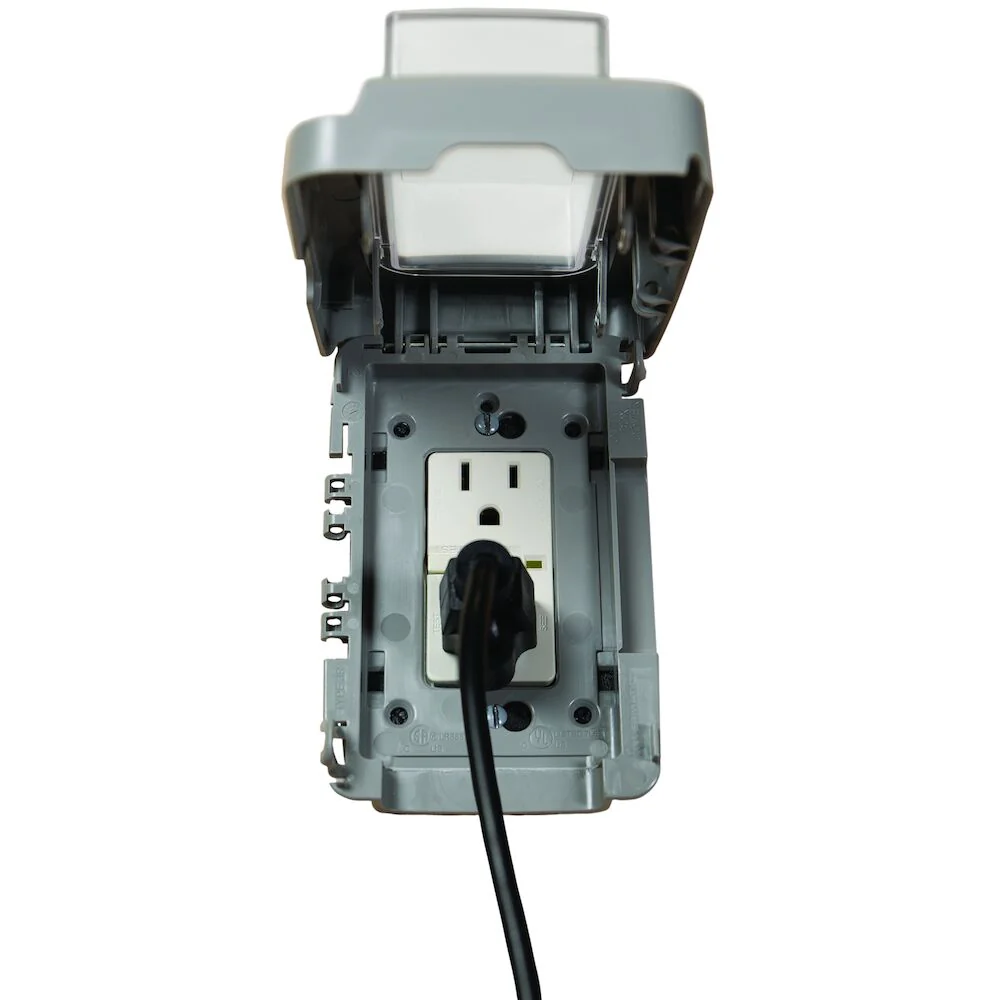

Intermatic Gray Vertical/Horizontal Low-Profile Plastic In-Use Weatherproof Cover, Single Gang 1.5" Deep, Model WP7000G
Intermatic Gray Vertical/Horizontal Low-Profile Plastic In-Use Weatherproof Cover, Single Gang 1.5" Deep, Model WP7000G
Description
Plastic In-Use Weatherproof Covers are easy to install and include a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Features
- 100% Paintable surface
- Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
- CEC Article 26-702 Compliant
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty UV stabilized polycarbonate cover, mounting base, and inserts
- 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 0.19" dia shank
- Impact rated: 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
Technical Information
Number of Included Inserts: 2
Hinge Direction: Vertical/Horizontal
Is Extra-Duty Rated: Yes
Product Dimensions (H x W x D) in: 5.5 x 3.75 x 1.5 in
Expandable Depth Mm: 54
Expandable Depth In: 2 1/8
Accepted Cord Size: Max 1x16 AWG
Box Type: Single
Color Clear: Gray
Weatherproof Cover Material: UV Stabilized Plastic
Country of Origin (Intermatic): MEXICO
Warranty Period: 1-Year limited
Document
Low Profil Weatherproof Cover Brochure
Original: $19.12
-65%$19.12
$6.69
