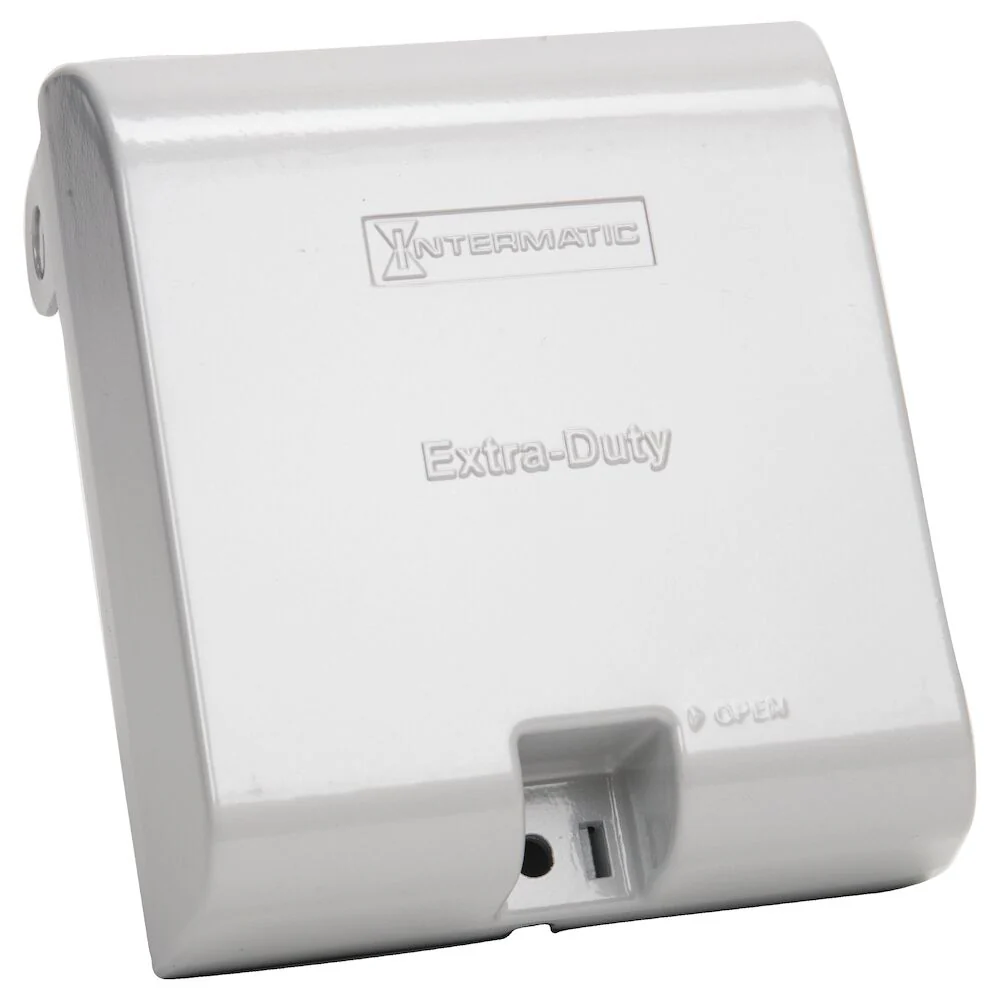

Intermatic Grey Die-Cast In-Use Weatherproof Cover, Double Gang 3.125", Model WP1030MXD
Description
Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with a gasket, mounting screws, base, cover assembly and inserts to meet the needs of a variety of applications.
Features
- Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
- CEC Article 26-702 Compliant
- UL Certified for Type 3R outdoor enclosures
- Meets requirements for cold impact testing: -60° F (-51° C)
- Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
- 1⁄8" (3 mm) thick, neoprene gasket with slits for mounting screws
- Lockable hasp: All models accept up to 1⁄4" (6 mm) dia shank
- Impact rated: 12 lbf. impact test to ensure cover remains intact
- Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
- Warranty: 1-year limited
Technical Information
Number of Included Inserts: 6
Insert Types Included: WP217
Hinge Direction: Vertical
Is Extra-Duty Rated: Yes
Product Dimensions (H x W x D) in: 6 3/8 x 5 5/8 x 3 1/8 in
Accepted Cord Size: Max 2x12 AWG
Box Type: Double
Color: Gray
Weatherproof Cover Material: Die-Cast Aluminum
Standards and Certifications: UL Certification cULus CSA Certification cCSAus
Country of Origin (Intermatic): CHINA
Warranty Period: 1-Year limited
