Intermatic Locking Type Receptacle, 3-Pin with Pole Mounting Bracket, Model K122
Description

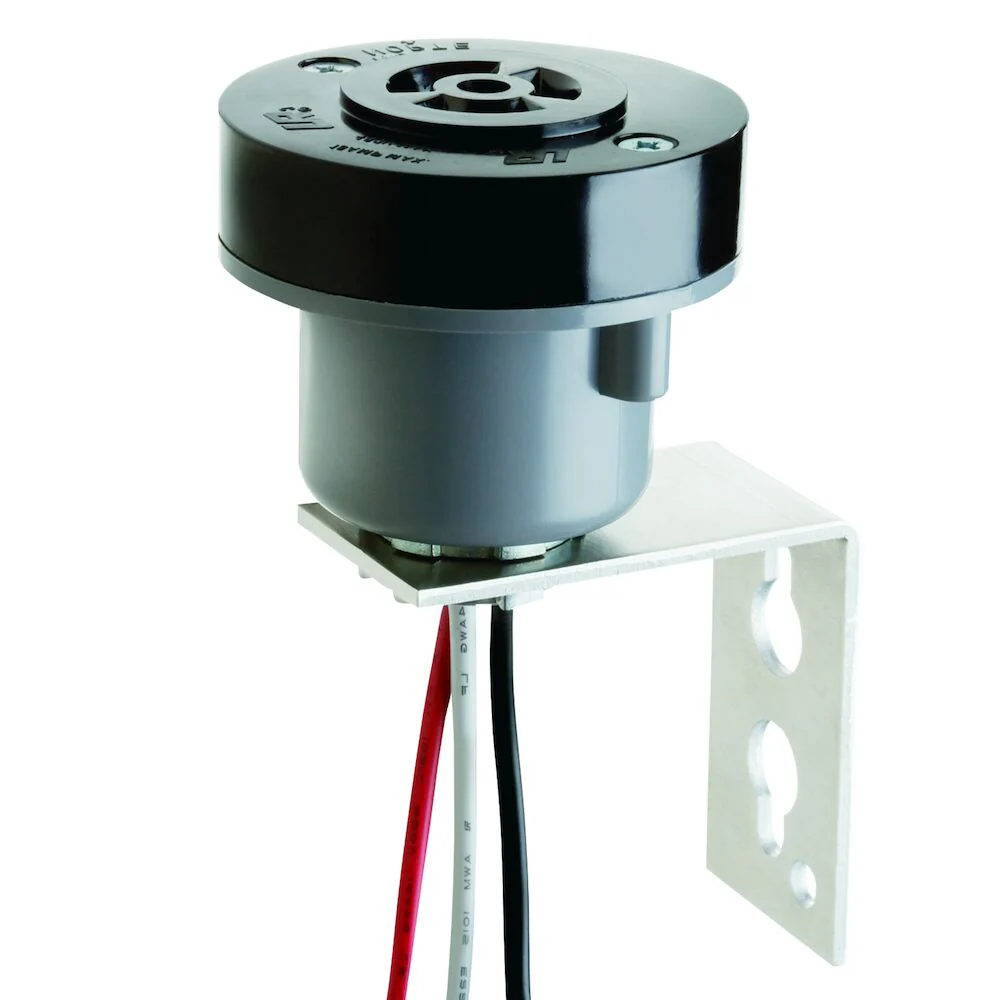

The K122 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself, or attached externally with the use of a mounting bracket (included).
Features
- NEMA receptacle with 3-prong sockets
- Compliant to ANSI C136.10 specifications
Technical Information
Product Height (in): 2.13
Product Height (mm): 54.1
Product Diameter (in): 2.56
Product Diameter (mm): 65.02
Color: Black
Base Material: Phenolic
Bracket Material: Aluminum
Back Cover Material: Phenolic
Power Contacts Material: Brass/Phosphor Bronze
Gasket (Integrated): Thermal Elastomer
Wire Leads: #14 AWG, 105°C, AWM3321
Power Contacts Rating: 480 V max, 15 A max
Temperature (operation): -40°C..80°C
Country of Origin (Intermatic): CHINA
Warranty Period: 1-Year limited
Document
Original: $39.46
-65%$39.46
$13.81
Description
Description
The K122 NEMA receptacles provide the connector interface for locking type photocontrols. They can be installed in the light fixture itself, or attached externally with the use of a mounting bracket (included).
Features
- NEMA receptacle with 3-prong sockets
- Compliant to ANSI C136.10 specifications
Technical Information
Product Height (in): 2.13
Product Height (mm): 54.1
Product Diameter (in): 2.56
Product Diameter (mm): 65.02
Color: Black
Base Material: Phenolic
Bracket Material: Aluminum
Back Cover Material: Phenolic
Power Contacts Material: Brass/Phosphor Bronze
Gasket (Integrated): Thermal Elastomer
Wire Leads: #14 AWG, 105°C, AWM3321
Power Contacts Rating: 480 V max, 15 A max
Temperature (operation): -40°C..80°C
Country of Origin (Intermatic): CHINA
Warranty Period: 1-Year limited
