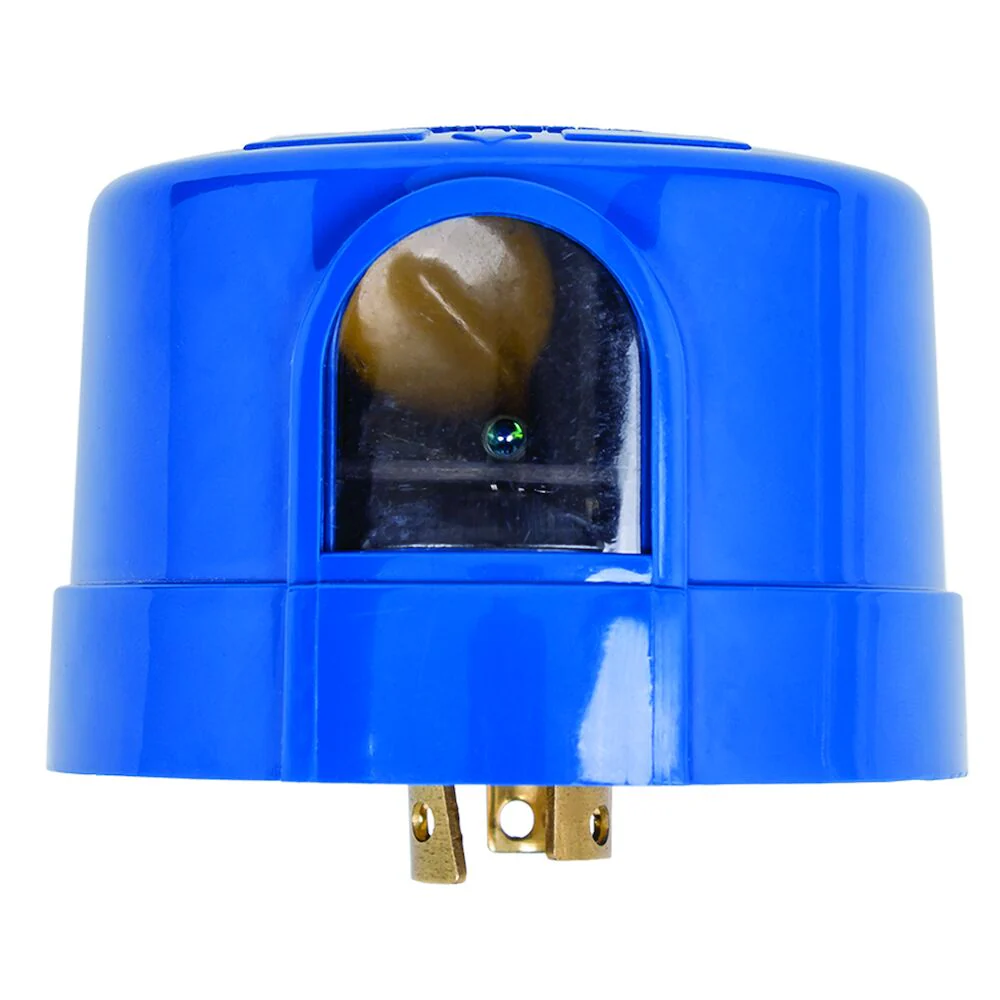

Intermatic Standard Grade Locking Type Electronic Photocontrol, 120-277V, Model ELC4536

Description

LED-compatible photocontrol features a 10-year life expectancy. Ideal for single fixture control of smaller LED fixtures that require a cost-effective solution.

Features

• Non-drift silicon light sensor with IR filter
• All components meet 10-year life expectancy
• Exceeds 5,000 ON/OFF switching cycles
• Ideal for single HID and LED fixtures (up to 550 W @ 277 VAC)
• Power-up ON delay (45-60 sec) for easy installation verification and troubleshooting
• 510 J MOV surge protection

Technical Information

Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF
Photocell Type: Silicon Diode
Photo Control Switch Type: Relay
Fail Mode: ON
Activation On: 1.5 fc
Activation Off: 2.25 fc
Photocontrol Type: Electronic
Application Compatibilities: LED; Incandescent; HID
Photocontrol Style: Locking type
Photocontrol Sensor Location: Side
Product Height (in): 2 3/4
Product Height (mm): 69.9
Product Diameter (in): 3.375
Product Diameter (mm): 85.8
Cover Color: Blue
Housing Material: Polycarbonate with Acrylic Window
Load Ratings
Magnetic Ballast Range(s): 1800 VA
Tungsten Range(s): 1000 W
Electronic Ballast Load Ratings Ranges: 2 A, 120-277 VAC, 50/60 Hz
Input Voltage Range(s): 120-277 VAC, 50/60 Hz
Surge Protection Technology: 510 J MOV
Temperature (operation): -40°C..70°C
Usage Environments: Outdoor
Country of Origin (Intermatic) MEXICO
Warranty Period 6-Year limited
