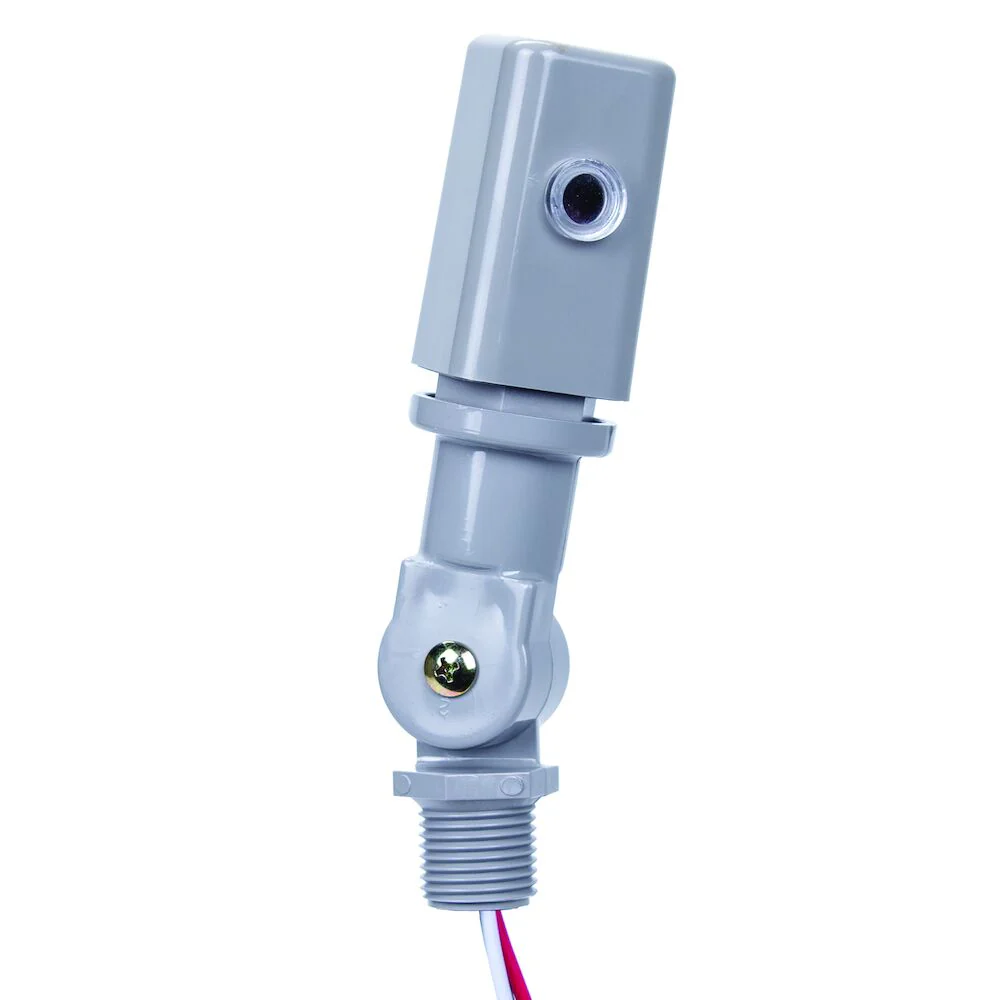

Intermatic Stem and Swivel Mount Electronic Photocontrol, 120-277V, Model EK4236S

Description

NIGHTFOX electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

Features

• Non-drift silicon light sensor with IR filter
• DC relay with zero-crossing circuitry for extended life
• Conformal coated PCB
• 15-year design life
• Exceeds 10,000 ON/OFF switching cycles
• Fail ON mode
• Ideal for single or multi-fixture HID and LED installations (up to 1,650 W @ 277 VAC)
• 255 J MOV surge protection element
• 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
• #18 AWG wire leads

Technical Information

Sensor Time Delay: Instant ON; 2 sec to 5 sec OFF
Photocell Type: Silicon Diode
Photo Control Switch Type: Relay
Fail Mode: ON
Activation On: 1.5 fc
Activation Off: 4.5 fc
Photocontrol Type: Electronic
Application Compatibilities: LED; Incandescent; HID
Photocontrol Style: Stem and Swivel Mount
Photocontrol Sensor Location: Side
Product Height (in): 5 5/8
Product Height (mm): 142.9
Product Width (in): 1 5/16
Product Width (mm): 33.3
Product Depth (in): 1 1/4
Product Depth (mm): 31.8
Wire Lead Length (in): 6
Wire Lead Length (mm): 152
Wire Size Max: #18 AWG
Cover Color: Gray
Housing Material: Polycarbonate
Load Ratings
Tungsten Range(s): 1000 W
Ballast Fluorescent Ranges: 1800 VA
Electronic Ballast Load Ratings Ranges: 6 A, 120-277 VAC, 50/60 Hz
Wiring Option: Wire leads
Input Voltage Range(s): 120-277 VAC, 50/60 Hz
Surge Protection Technology: 255 J MOV, 5,000 A Surge
Temperature (operation:) -40°C..70°C
Usage Environments: Outdoor
Country of Origin (Intermatic) MEXICO
Warranty Period 8-Year limited
