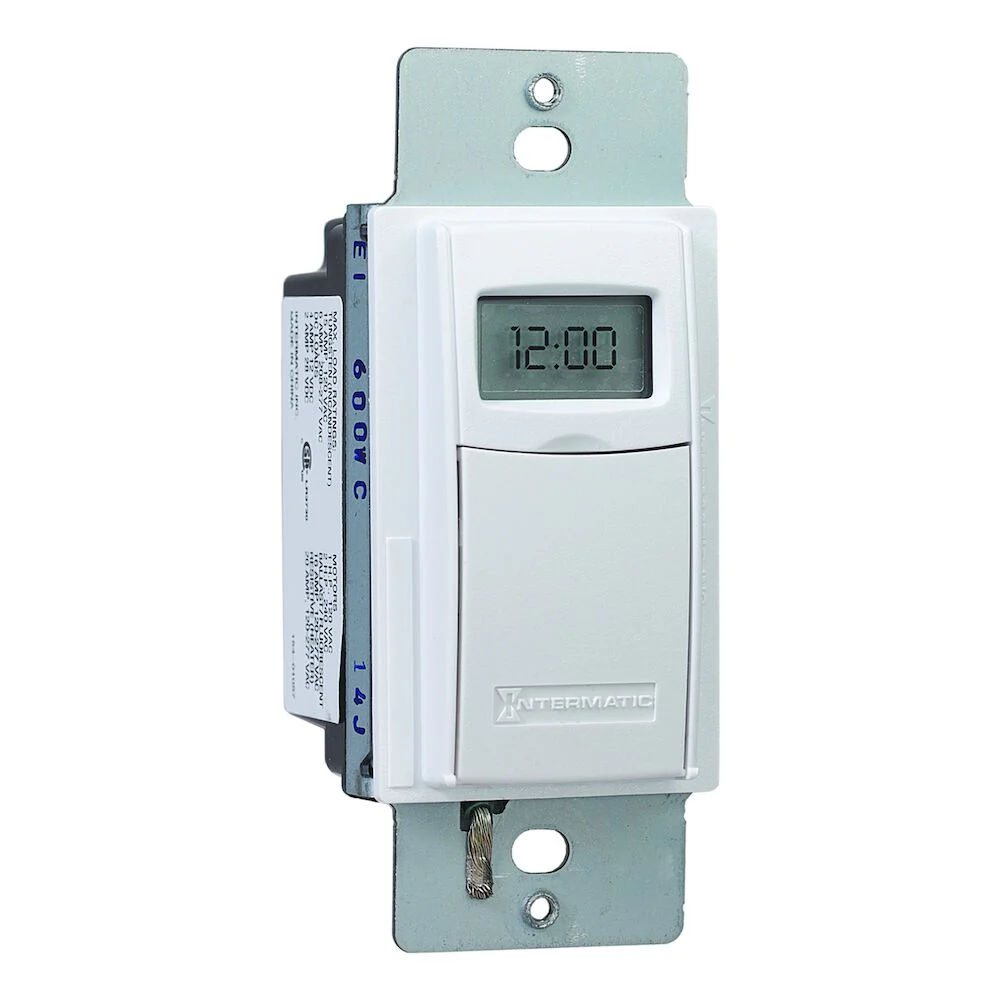

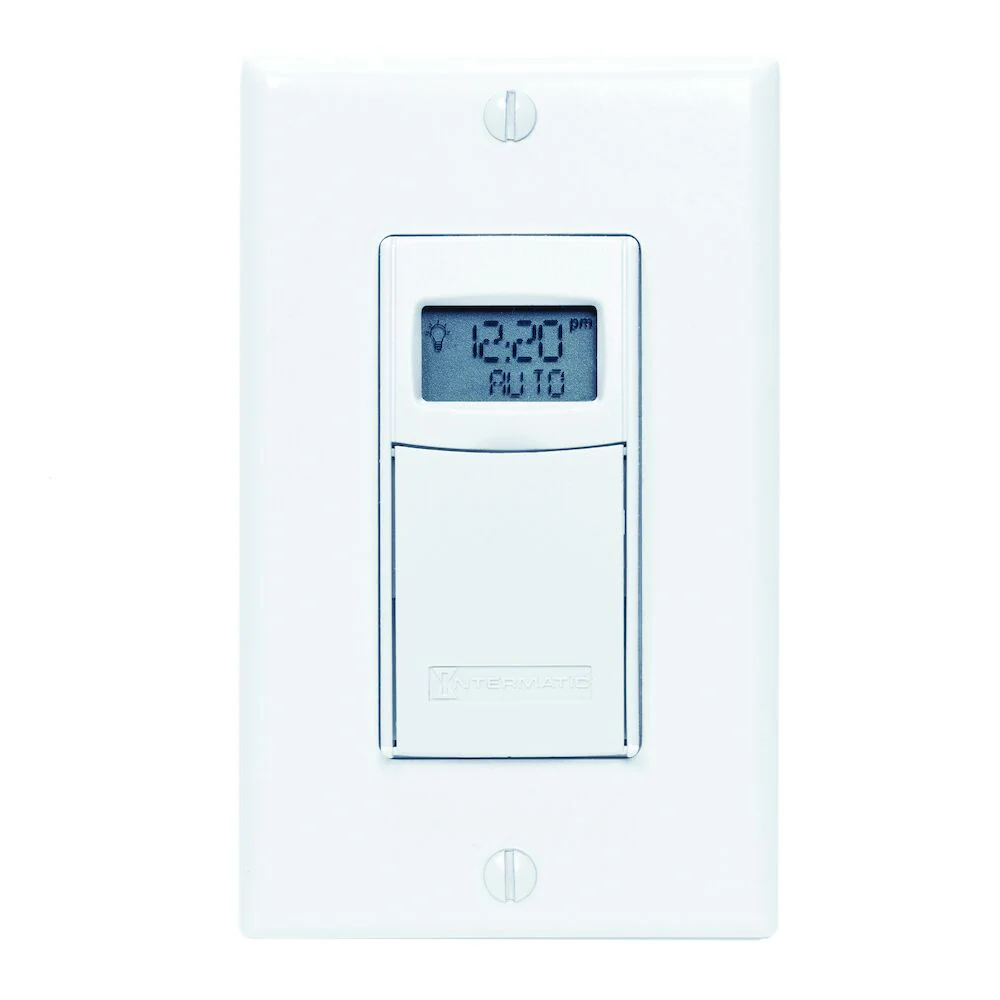

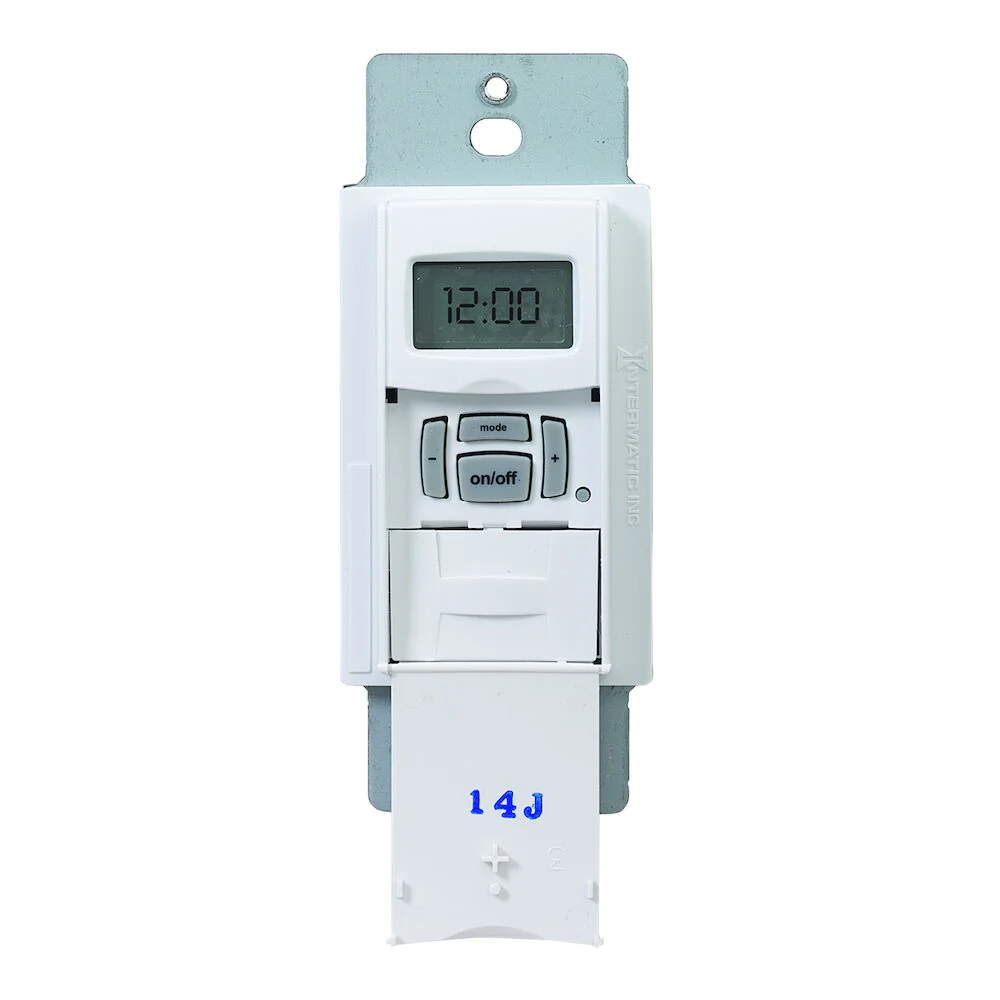

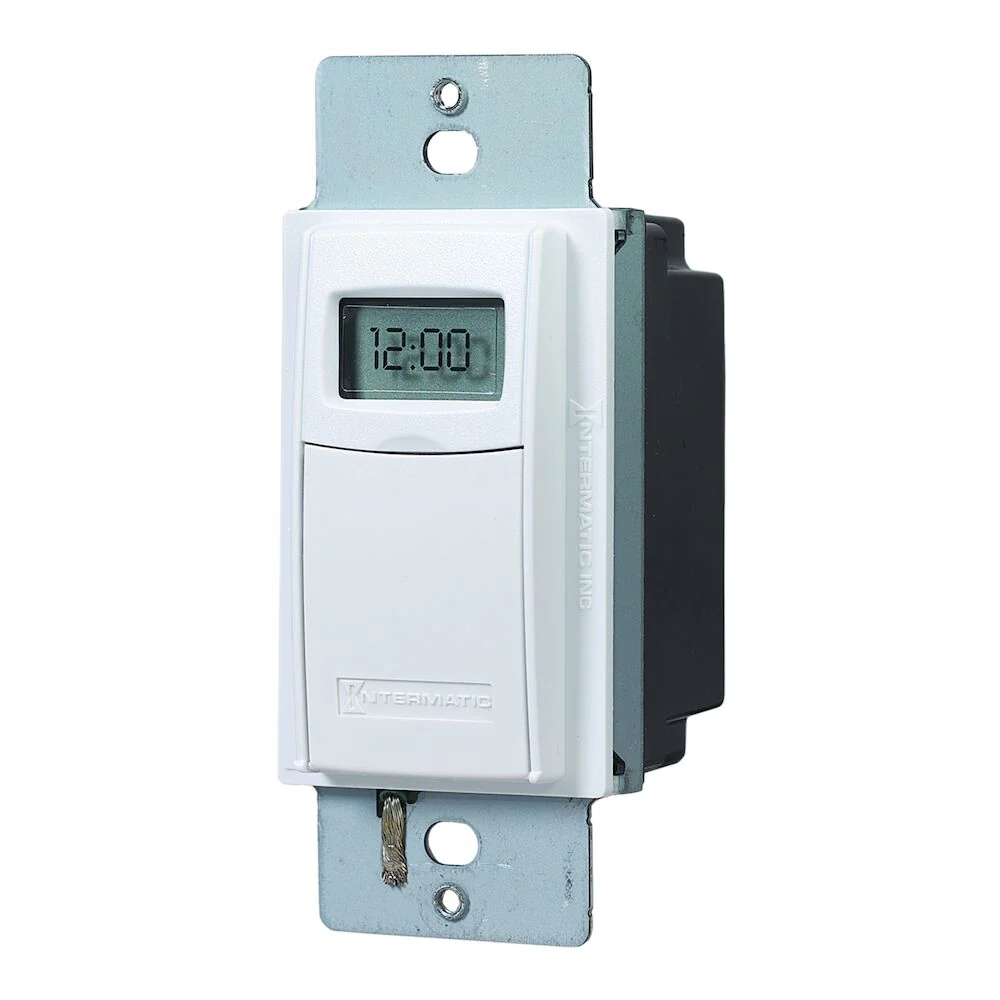

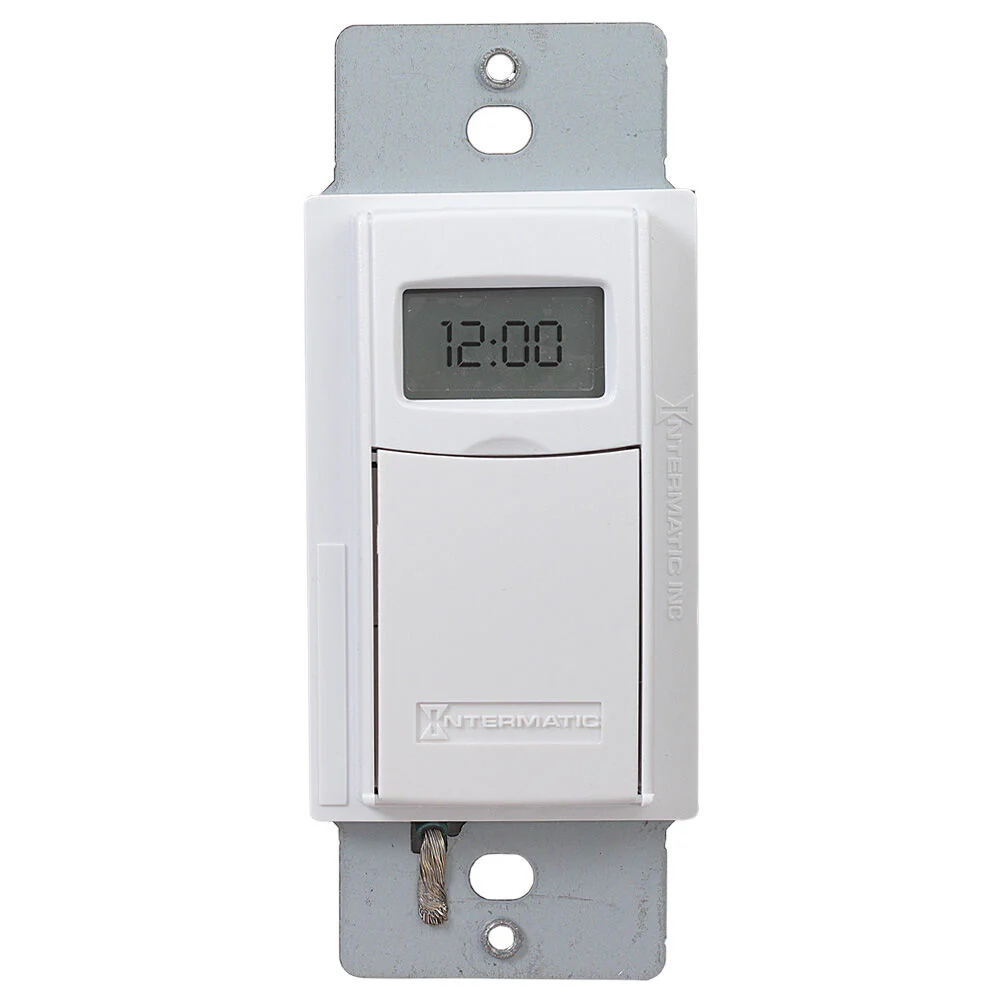

Intermatic White 7-Day Heavy-Duty Programmable Timer, 20A, Model EI600WC
Description
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
***Wallplate not included***
Features
- Versatile 7-day programmable schedules with up to 40 ON/OFF events
- Astronomic clock feature determines dawn and dusk times
- Automatic Daylight Saving Time (DST) adjustment
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance
- Single or 3-way switch compatible installation
- Incandescent/fluorescent/CFL/LED compatible
- Isolated switch allows timer to be used with any load type, including AC and DC loads
- Replaceable CR2 lithium battery provides up to three years of operation
- No neutral wire connection enables easy retrofitting and quicker installation
- Decorator switch plate not included
Technical Information
Color: White
Input Voltage Range: 120-277VAC - 50-60 Hz
Neutral Connection Required: No
Wiring Configurations: 3-Way, Single
Wall Plate Configurations: Single-Gang NOT INCLUDED
Mechanism Type: Digital/Electrical
Backup Type: Battery
Battery Type: CR2 Lithium
Operation Mode: 24 Hour Programmable
Operation Features: Astronomic, Daylight Saving Time
Maximum On-Off Operations: 40
Hold Mode Included: Yes
Countdown Time: 30 Min
Time Presets: 5 min, 10 min, 15 min, 30 min
Application Compatibilities: CFL, Fluorescent, Incandescent, LED
Ballast Fluorescent: 16A
Electronic Ballast LED: 5A@ 120VAC 2A@277VAC
Inductive Load: 16A 120-277VAC
Resistive Heater: 20A, 120-277VAC
Tungsten Incandescent:15A @120VAC 6A @277VAC
Operating Temperature Max: 104°F (40°C)
Operating Temperature Min: 32°F (0°C)
Product Depth: 1.8125in (46mm)
Product Height: 4.125in (104.8mm)
Product Width: 1.75in (44.5mm)
Country of Origin: Thailand
Warranty Period: 5-Year Limited
