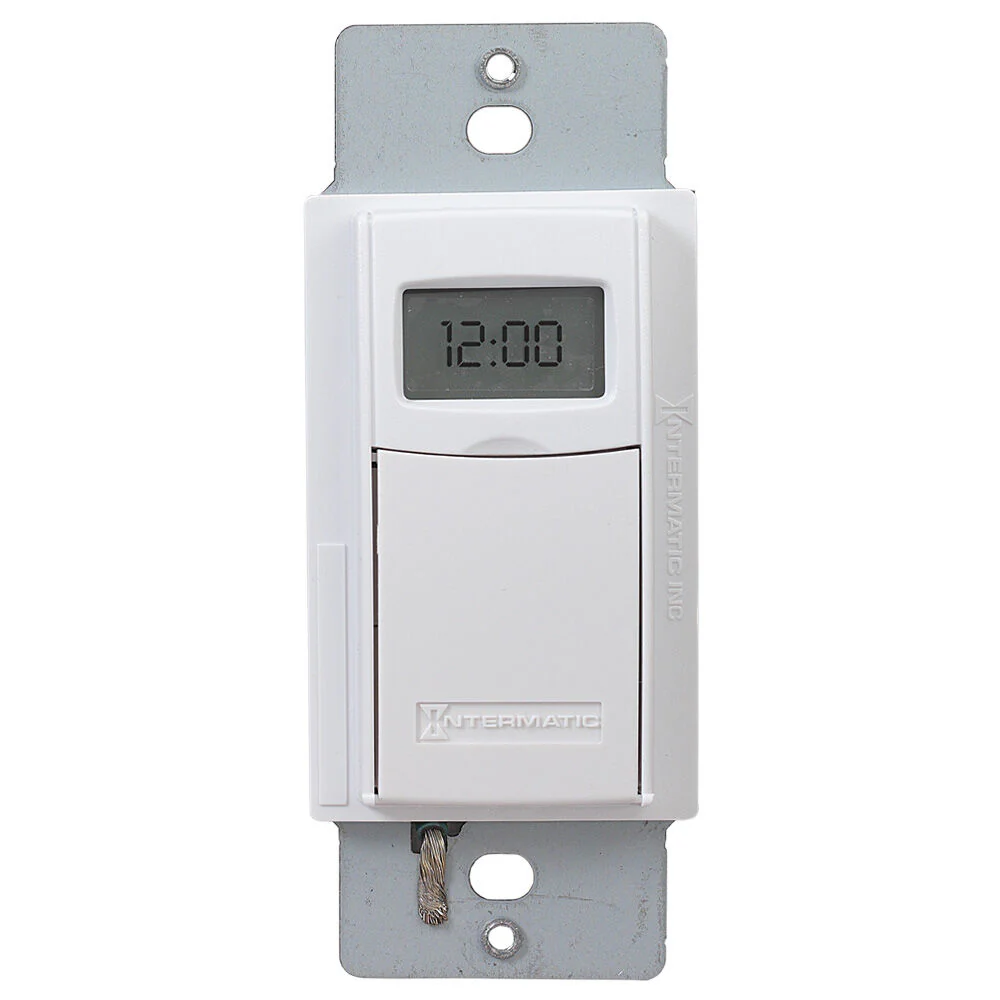

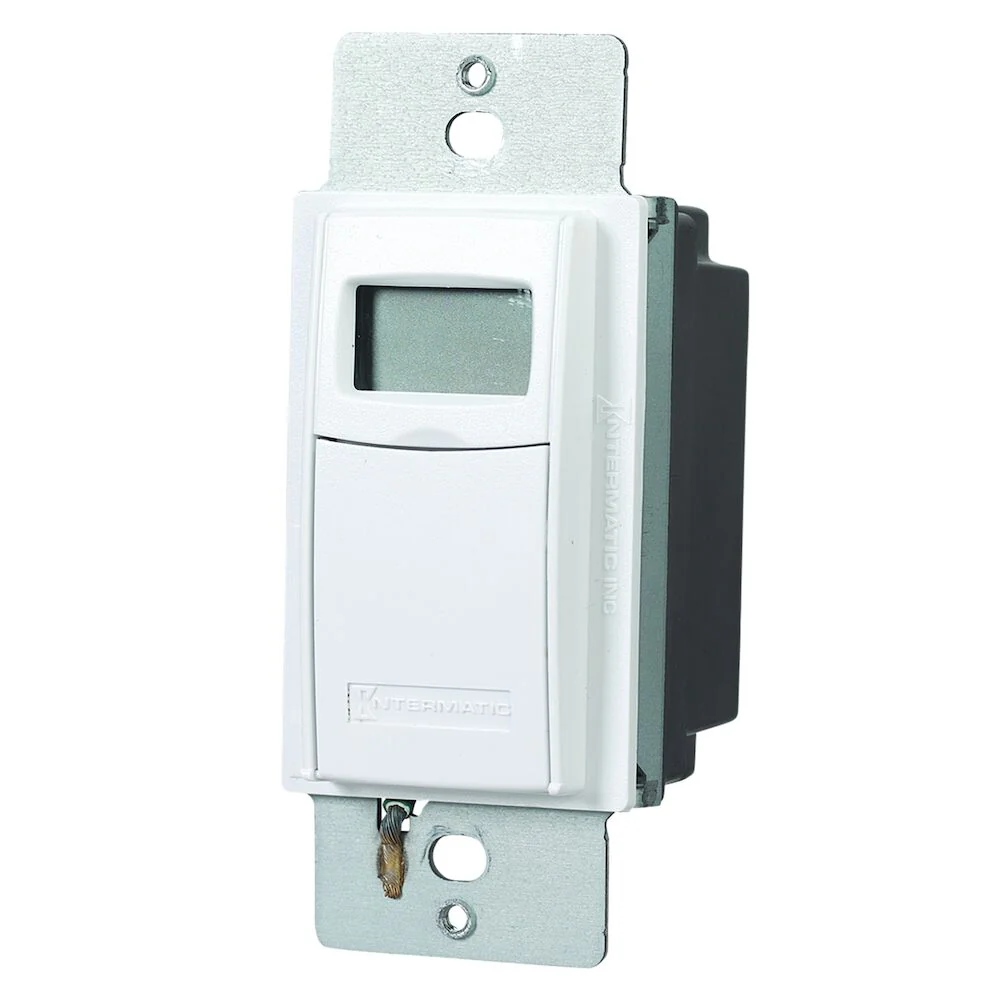

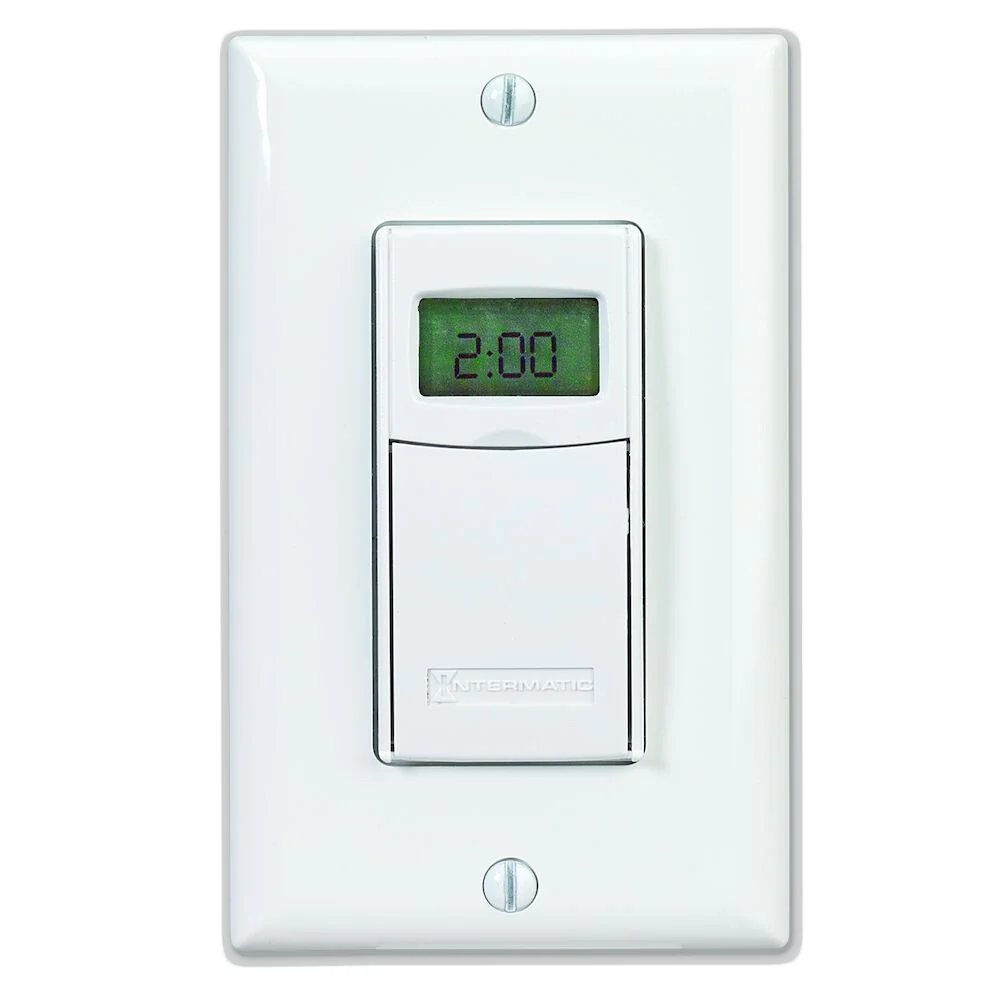

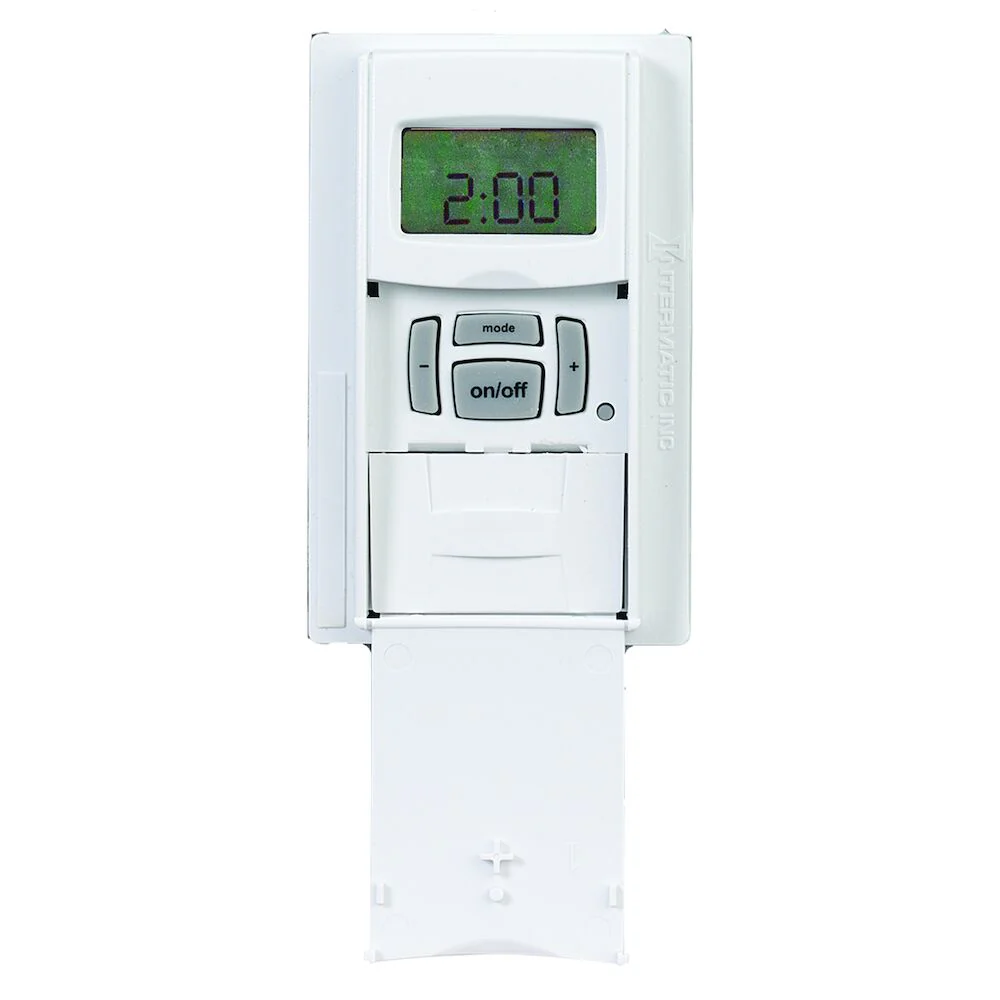

Intermatic White 7-Day Programmable Timer, 15A, Model ST01
Description
Highly versatile Heavy-Duty Timers are ideal for any application that requires a simple or complex ON/OFF schedule, regardless of load. No neutral connection is required. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features
- Versatile 7-day programmable schedules with up to 40 ON/OFF events
- Astronomic clock feature determines dawn and dusk times
- Automatic Daylight Saving Time (DST) adjustment
- Random mode varies ON/OFF schedule to provide a "lived-in" appearance
- Single or 3-way switch compatible installation
- Incandescent/fluorescent/CFL/LED compatible
- Isolated switch allows timer to be used with any load type, including AC and DC loads
- Replaceable CR2 lithium battery provides up to three years of operation
- No neutral wire connection enables easy retrofitting and quicker installation
- Decorator switch plate not included
Technical Information
Minimum ON/OFF Times: 1 min
Maximum ON/OFF Operations: 40
Operation Mode: 24 hour
Operation Features: Astronomic; Daylight Saving Time
Mechanism Type: Digital/Electrical
Backup Type: Battery
Backup Protection Time: 3 Years
Battery Type: CR2 Lithium
Battery Service Type: Replaceable
Application Compatibilities: Incandescent; Fluorescent; CFL; LED
Wall Plate Configurations: Single-Gang
Product Dimensions (H x W x D) in: 4.125 x 1.75 x 1.8125 in
Color: White
Load Ratings
Resistive Heater: 15 A, 120-277 VAC
Tungsten (Incandescent) Range(s): 1800 W, 120 VAC; 1248-1662 W, 208-277 VAC
Ballast Fluorescent: 8 A, 120 VAC; 4 A, 208-277 VAC
Electronic Ballast LED: 5 A, 120 VAC; 2 A, 277 VAC
DC Loads: 4 A, 12 VDC; 2 A, 28 VDC
Motor Load Ratings Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC
Max Load Handling Capability: 15 A
Inductive Load Ratings Ranges: 8 A, 120 VAC, 50/60 Hz; 4 A, 208-277 VAC, 50/60 Hz
Input Voltage Range(s): 120-277 VAC, 50/60 Hz
Wiring Configurations: Single; 3-Way
Neutral Connection Required: No
Temperature (operation): 32 - 104 °F / 0 - 40 °C
CSA Certification: cCSAus
Country of Origin (Intermatic): THAILAND
Warranty Period: 1-Year limited
Document
Original: $56.92
-65%$56.92
$19.92
