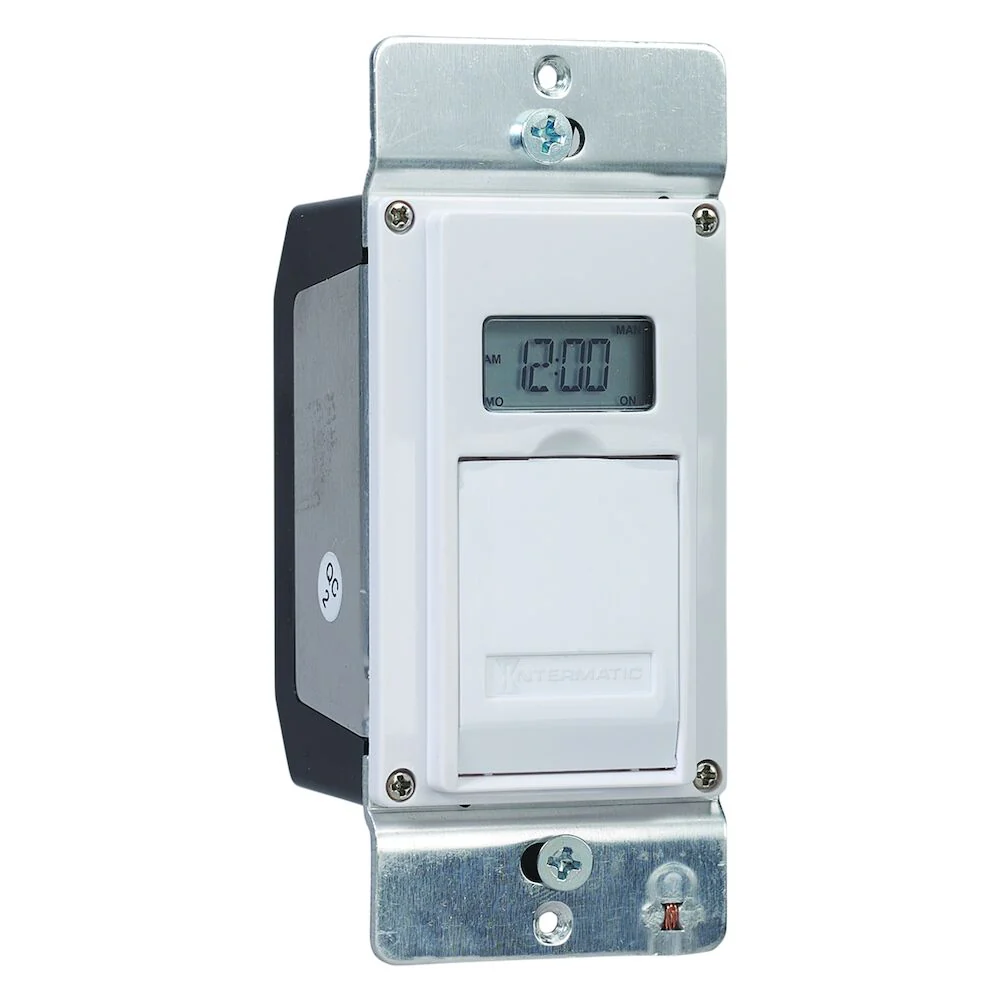

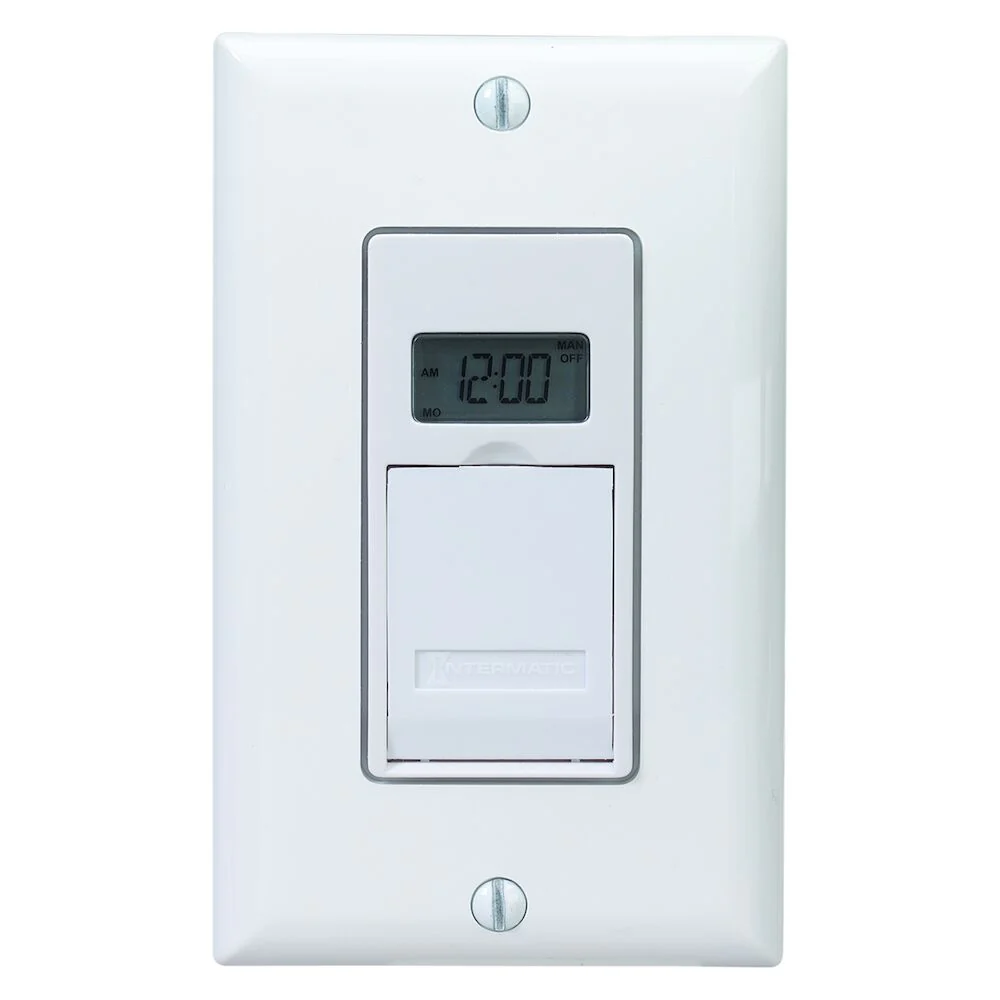

Intermatic White 7-Day Standard Programmable Timer, 12A, Model EJ600

Description

A 12 A rated timer that provides full 7-day programming capabilities with dusk-to-dawn functionality, ideal for use with medium to low power loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

***Wallplate not included***

Features

• 7-day programmable schedules with 14 ON/OFF events
• Astronomic clock feature determines dawn and dusk times
• Automatic Daylight Saving Time (DST) adjustment
• Random mode varies ON/OFF schedule to provide a "lived-in" appearance
• Single or 3-way switch compatible installation
• Incandescent/fluorescent compatible
• Built-in rechargeable, non-serviceable battery backup
• Requires neutral connection
• Decorator switch plate not included

Technical Information

Minimum ON/OFF Times: 1 min
Maximum ON/OFF Operations: 14
Operation Mode: 24 hour
Operation Features: Astronomic; Daylight Saving Time
Mechanism Type: Digital/Electrical
Backup Type: Battery
Backup Protection Time: 100 Hours
Battery Type: Rechargeable
Battery Service Type: Non-Serviceable
Application Compatibilities: Incandescent; Fluorescent
Wall Plate Configurations: Single-Gang
Country of Origin: CHINA
Warranty Period: 1-Year limited
