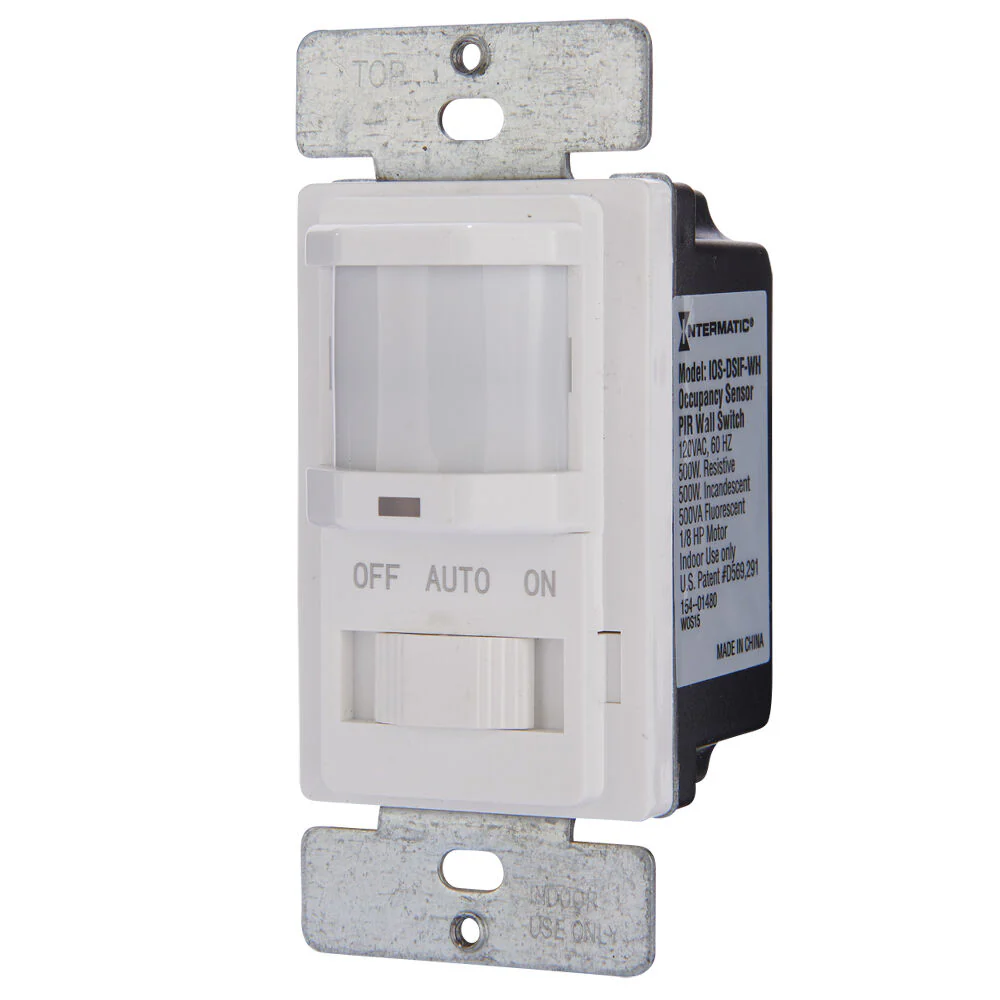

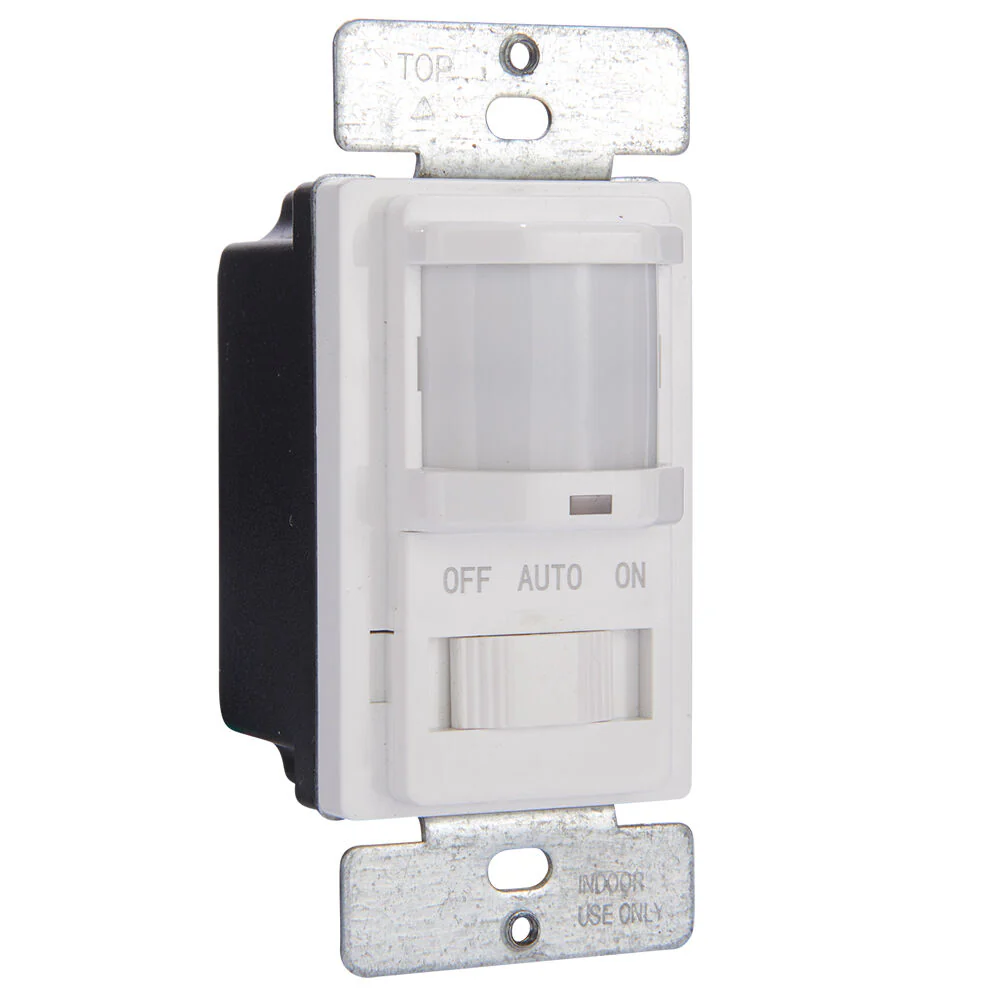

Intermatic White Residential In-Wall PIR Occupancy Sensor, Model IOS-DSIF-WH
Description
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load ON and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turns OFF automatically. The sensor switch has one relay (equal to single pole switch), it also includes Ambient Light Level Sensor.
Features
- Passive Infrared (PIR) sensing for presence detection
- Adjustable PIR sensitivity
- Adjustable time delay 15 sec to 30 min
- Adjustable ambient light sensor override
- Coverage: 150º, 980 ft2 with non-obstructed views
- IOS-DSIF models are Incandescent/Fluorescent/CFL/LED compatible and require a neutral connection
- 'No neutral' models offered for retrofit applications
- Fits standard decorator wall plate (included)
Technical Information
Sensor Switch Type: Occupancy
Sensor Technology: PIR (Passive Infrared)
Adjustable Time Delay Min: 15 sec
Adjustable Time Delay Max: 30 min
Adjustable Light Level Min: 30 lux
Adjustable Light Level Max: Daylight
PIR Coverage Area (sq ft):980
Application Compatibilities: Incandescent; Fluorescent; CFL; LED
Mount Type: In-Wall
PIR Coverage Pattern (degrees): 150
Maximum Mounting Height (ft): 4 ft
Product Height (in): 2.75
Product Height (mm): 70
Product Width (in): 1 7/16
Product Width (mm): 37
Product Depth (in): 1.625
Product Depth (mm): 41
Color: White
Includes Wall Plate: Yes
Load Ratings
Tungsten Range(s): 800 W
Resistive Load Ratings Ranges: 800 W
Motor Load Ratings Ranges: 1/8 HP
Fluorescent Load Rating Ranges: 800 VA
Input Voltage Range(s): 120 VAC, 60 Hz
Occupancy Sensor Power Type: Line Voltage
Neutral Connection Required: Yes
Shipping Weight (kg): 0.181
Unit Carton Dimensions (H x W x L) in: 5 x 2.25 x 3 in
Temperature (operation): 32 - 131°F / 0 - 55°C
Warranty Period: 2-Year limited
Country of Origin (Intermatic): CHINA
