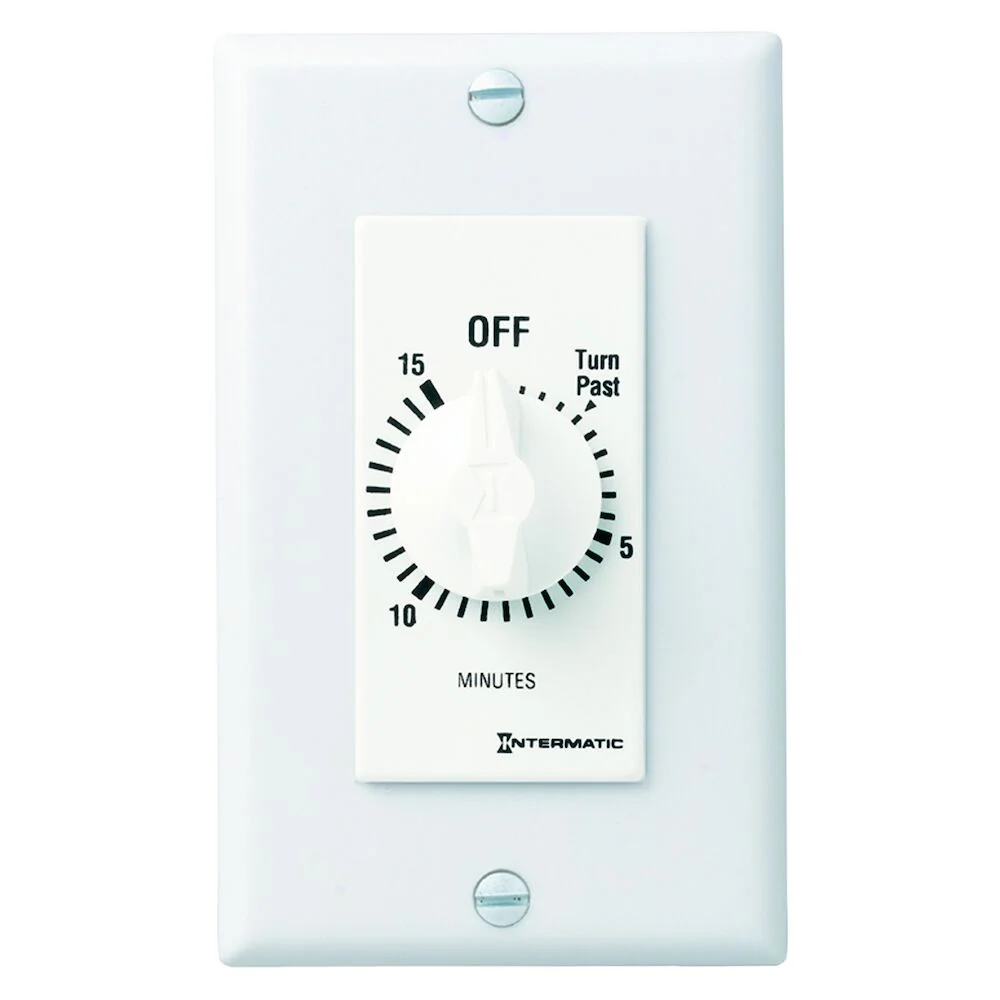

Intermatic White Spring Wound Countdown Timer, 15 Minutes Max, Model FD15MWC
Description
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features
- 15-Minute timer
- SPST (Single-Pole Single-Throw)
- Breaks circuit at end of timing cycle
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
Technical Information
Model Number: FD15MWC
Operation Mode: Countdown
Countdown Time: 15 min
Hold Mode Included: No
Mechanism Type: Analog/Mechanical
Application Compatibilities: Incandescent; Fluorescent; CFL; LED
Wall Plate Configurations: Single-Gang; Multi-Gang
Product Dimensions (H x W x D) in: 4.125 x 1.75 x 1.25 in
Color: White
Load Ratings
Resistive Heater: 20 A, 2500 W, 125 VAC; 10 A, 2500 W, 250 VAC; 10 A, 2770 W, 277 VAC
Tungsten (Incandescent) Range(s): 7 A, 125 VAC, 50/60 Hz, 875 W
Motor Load Ratings Ranges: 1 HP, 125 VAC; 2 HP, 250 VAC
Input Voltage Range(s): 125-277 VAC, 50/60 Hz
Wiring Configurations: Single
Switch Type: SPST
Neutral Connection Required: No
Temperature (operation): 40 - 120 °F / 4 - 49 °C
Country of Origin (Intermatic): TUNISIA
Warranty Period: 1-Year limited
