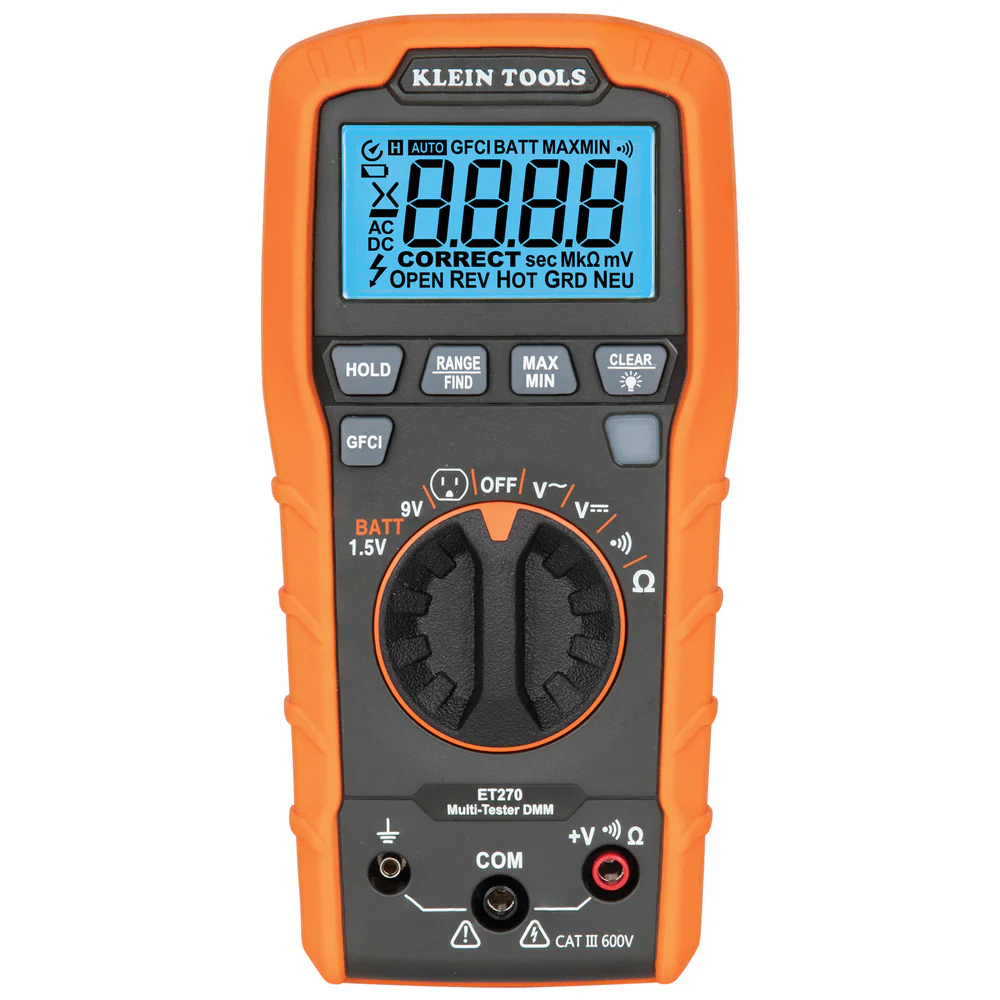

Klein Tools Digital Multi-Tester DMM with Receptacle Tester, Model ET270*
Description

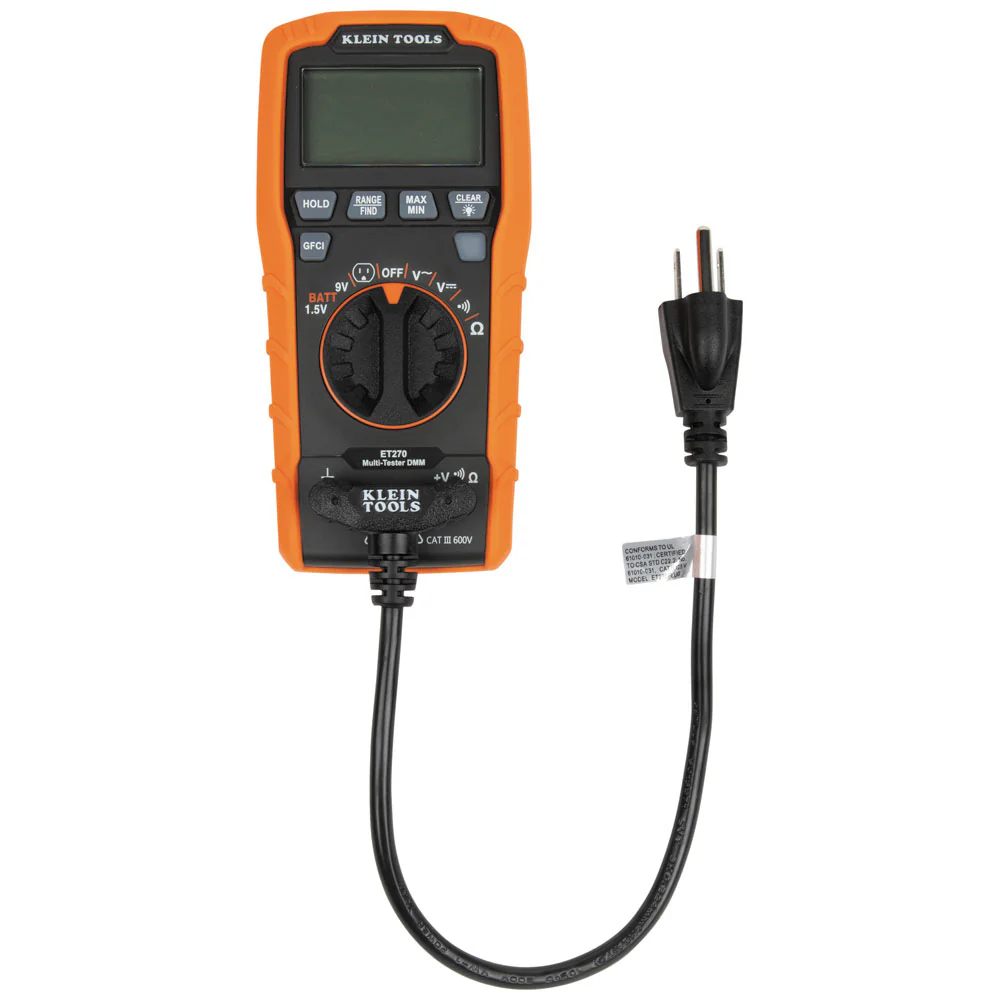

Klein Tools' ET270 is an auto-ranging digital multi-tester that measures AC/DC voltage, resistance, continuity, and performs a battery test. It also tests wiring conditions in standard 120VAC and GFCI electrical receptacles and inspects North American GFCI devices. Comes with Right-Angle Test Leads, Receptacle Test Cord, Instructions, and all required batteries.
Features
- Digital multimeter is auto-ranging and measures AC/DC voltage, resistance, audible continuity, and performs 9V and 1.5V battery tests

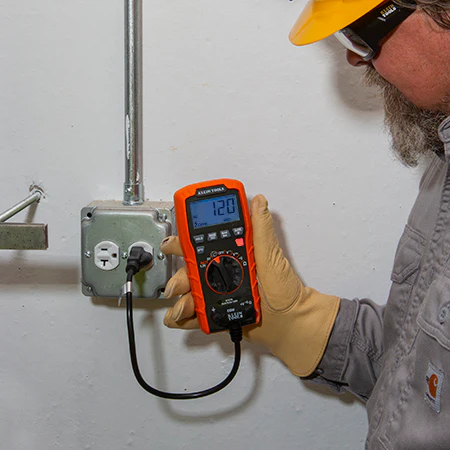

- Detects and identifies common wiring faults in standard and GFCI electrical outlets

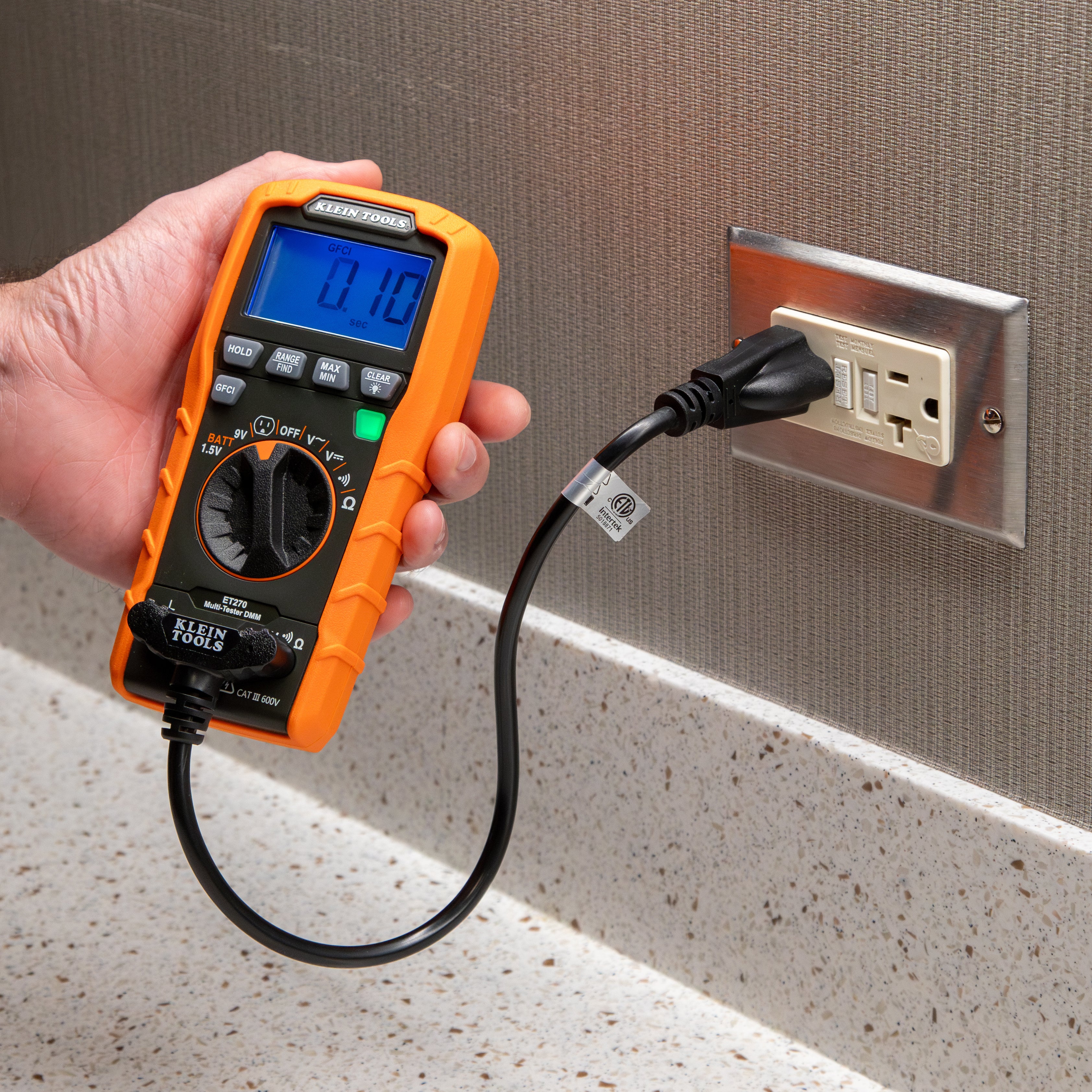

- Inspects GFCI devices, including time to trip the device

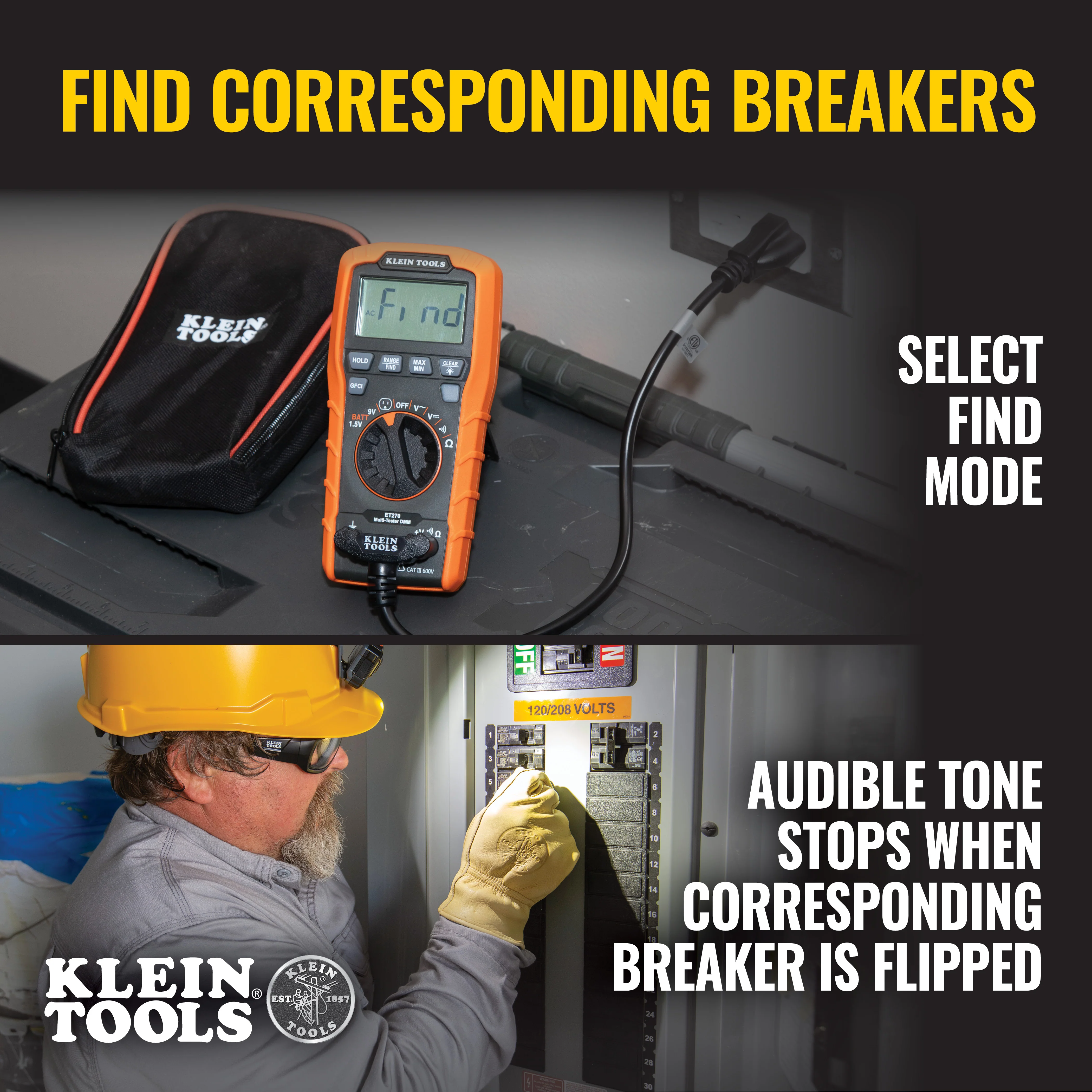

- FIND mode indicates which breaker corresponds to a given receptacle
- Features include backlit display, data hold, default to auto-range with option for manual-range; max/min
- Receptacle test is designed for use with North American 120V AC 3-wire electrical outlets
- Built to withstand a 6.6-Foot (2 m) drop, this meter is designed to be durable and reliable even in demanding working environments
- Digital Multimeter comes with test leads, receptacle test cord, instructions, batteries, all in a convenient storage pouch
Technical Information
Type: Digital Multimeter and GFCI Receptacle Tester
Application: Testing and Measuring Voltage; Detects and Identifies Common Wiring Problems in GFCI Receptacles
Special Features: Data Hold; Auto-Range with Option for Manual-Range; Min/Max Values; Backlight
Material: ABS and Electrical Components
Batteries: 2 x AAA
Drop Protection: 6.6' (2 m)
Display: 4000 Count LCD
Color: Orange/ Black
Functions: AC/DC Voltage; Resistance; Continuity; Battery Test; Finds Breaker to Corresponding Receptacle; Shows Amount of Time it Takes to Trip GFCI; Detects and Identifies Common Wiring Problems in GFCI Receptacles
Voltage: 600V AC/DC
Frequency: 50 to 60Hz
Ohms (Resistance): 40MΩ
Standard: CAT III 600V, Class 2, Double insulation
Accuracy: 65°F to 83°F (18°C to 28°C): +/- (% of Reading + Number of Least Significant Digits)
Included: Digital Multimeter; Right-Angle Test Leads; Receptacle Test Cord; Batteries; User Manual; Storage Pouch
Overall Length: 6.41'' (16.3 cm)
Overall Height: 1.84'' (4.5 cm)
Overall Width: 3.13'' (7.9 cm)
Weight: 1.32 lb (0.6 kg)
Document
Original: $55.56
-65%$55.56
$19.45
