Klein Tools Impact Punchdown Tool, 66/110 Blade, Model VDV427-300*
Description
Premium performance, impact punchdown tool provides precise, reliable connections every time. Use to punch data cables into 66/110 panels and blocks. Terminate and cut wire in one step with the MIM (metal injection molding) precision ground combination 66/110 blade. The tool features the traditional punchdown-style form with a cushioned, non-slip handle.
Features

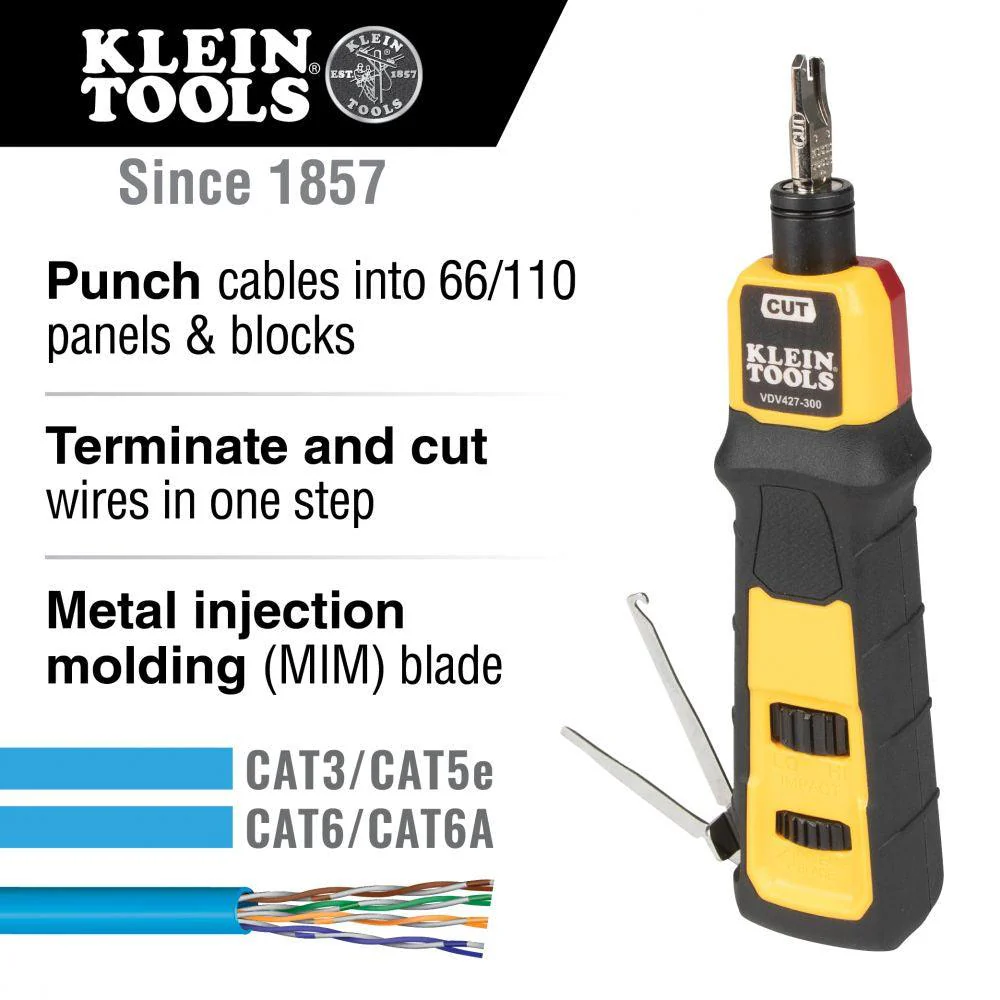

- Punchdown tool terminates and cuts wires in CAT3, CAT5e and CAT6/6A cable in one step

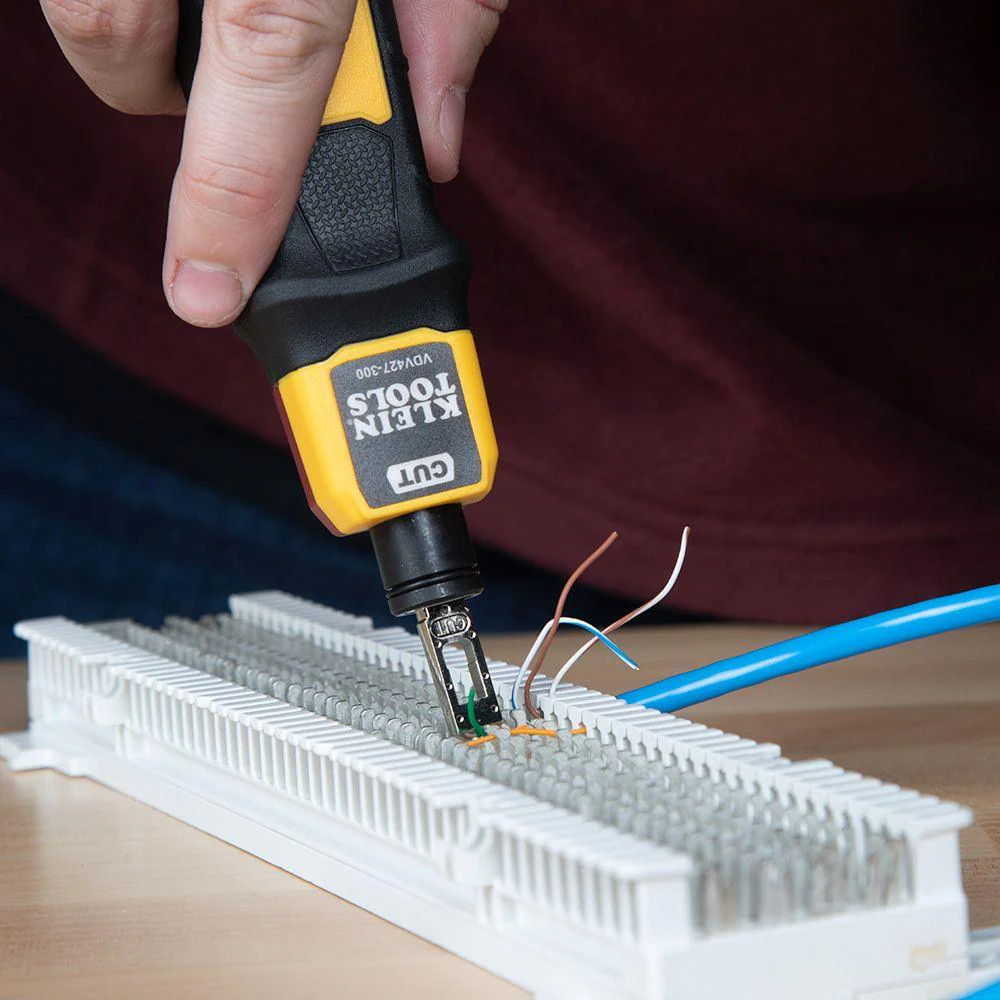

- Punch cables into 66/110 panels and blocks
- Metal injection molding (MIM) blade for durability (included)
- Traditional punchdown style with cushioned handle for comfort with non-slip grip
- Provides precise, reliable connections every time
- Spring loaded for fast, low effort seating and terminating
- Selectable (Hi/Low) impact-force setting lever

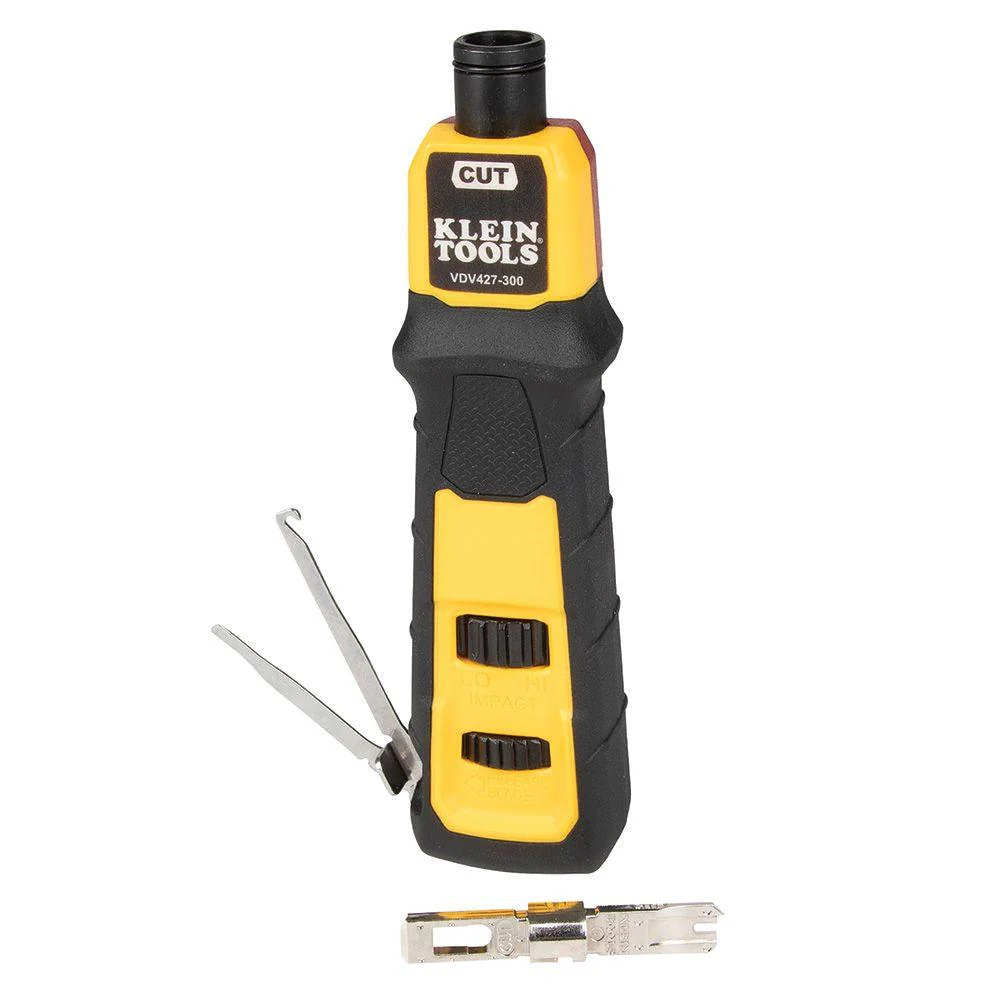

- Includes a pick and spudger with wave washer to help keep desired position

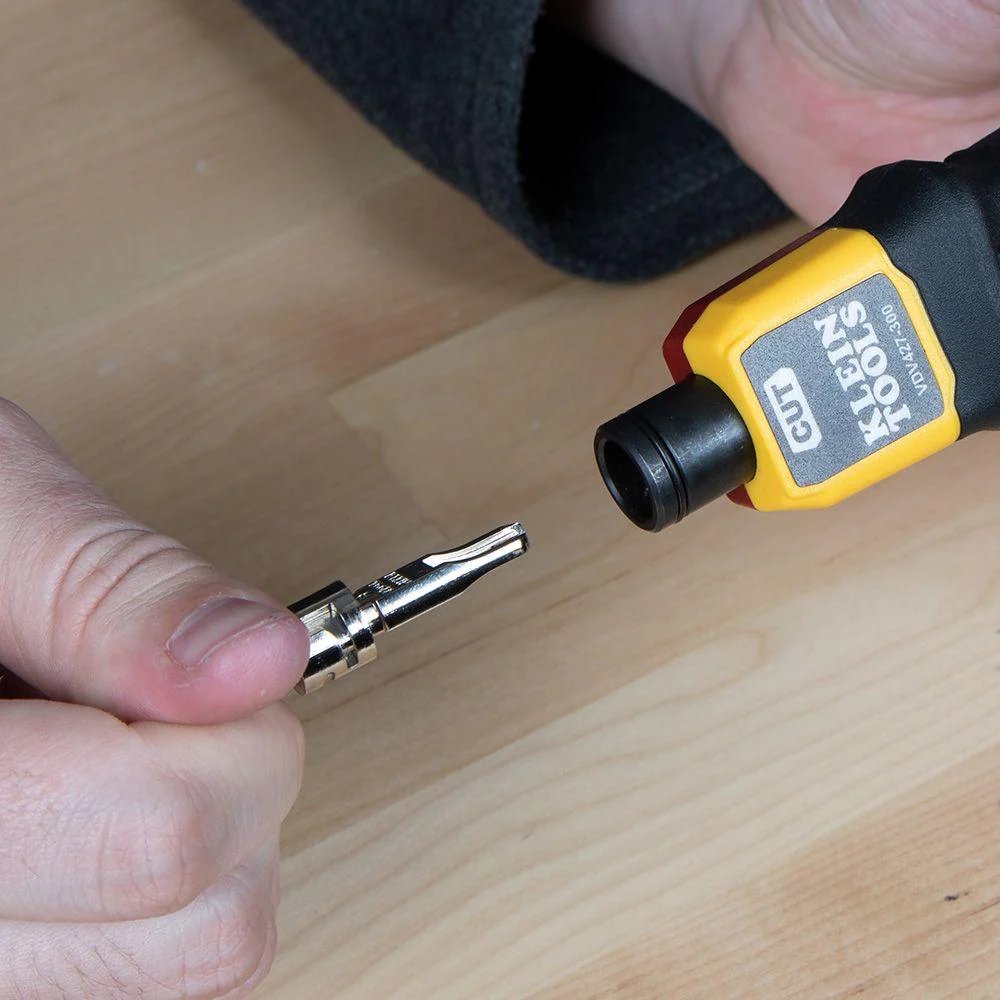

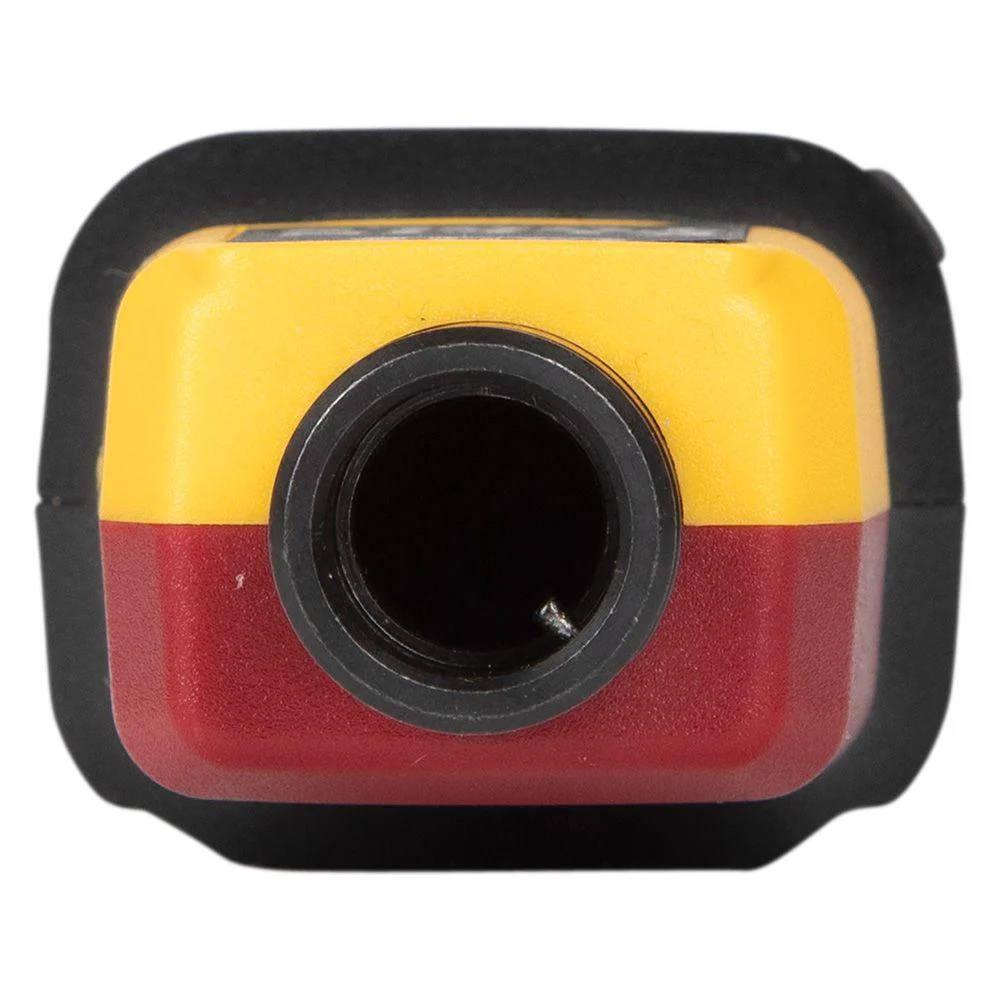

- Bayonet style (twist and lock) socket accepts most manufacturers' blades
- Extended reach blade (Cat. No. VDV427-110) for working on active panels with pre-existing connections (sold separately)
- Replacement blades available (Cat. No. VDV427-104)
Technical Information
Type: Punchdown Kit
Application: Cable Termination
Special Features: Cushion for Comfort, Integrated Pick and Spudger, MIM Blade for Accuracy and Durability
Overall Length: 6'' (15.2 cm)
Overall Height: 1'' (2.5 cm)
Overall Width: 1.5'' (3.8 cm)
Material: Plastic, Metal
Color: Black, Yellow, Red
Blade Configuration End 1: 110 Terminate and Cut
Blade Configuration End 2: 66 Terminate and Cut
Document
Original: $37.95
-65%$37.95
$13.28
