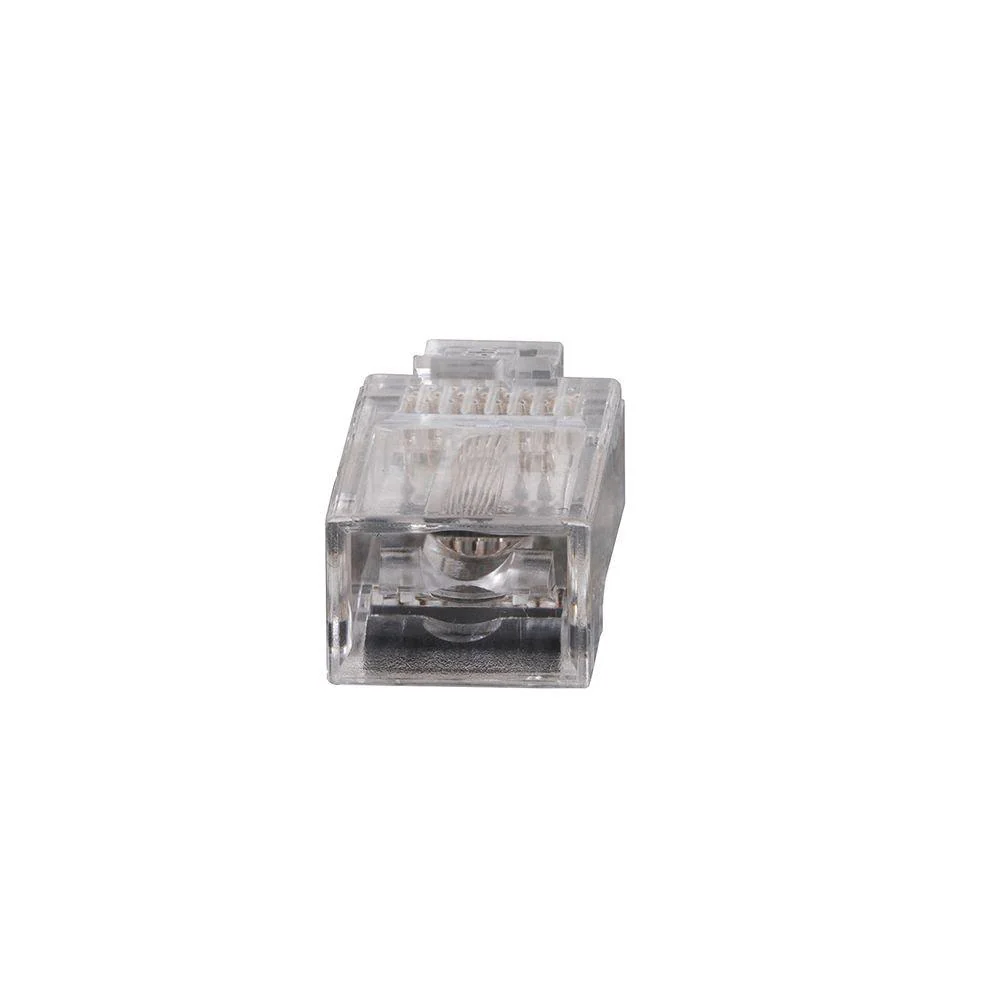

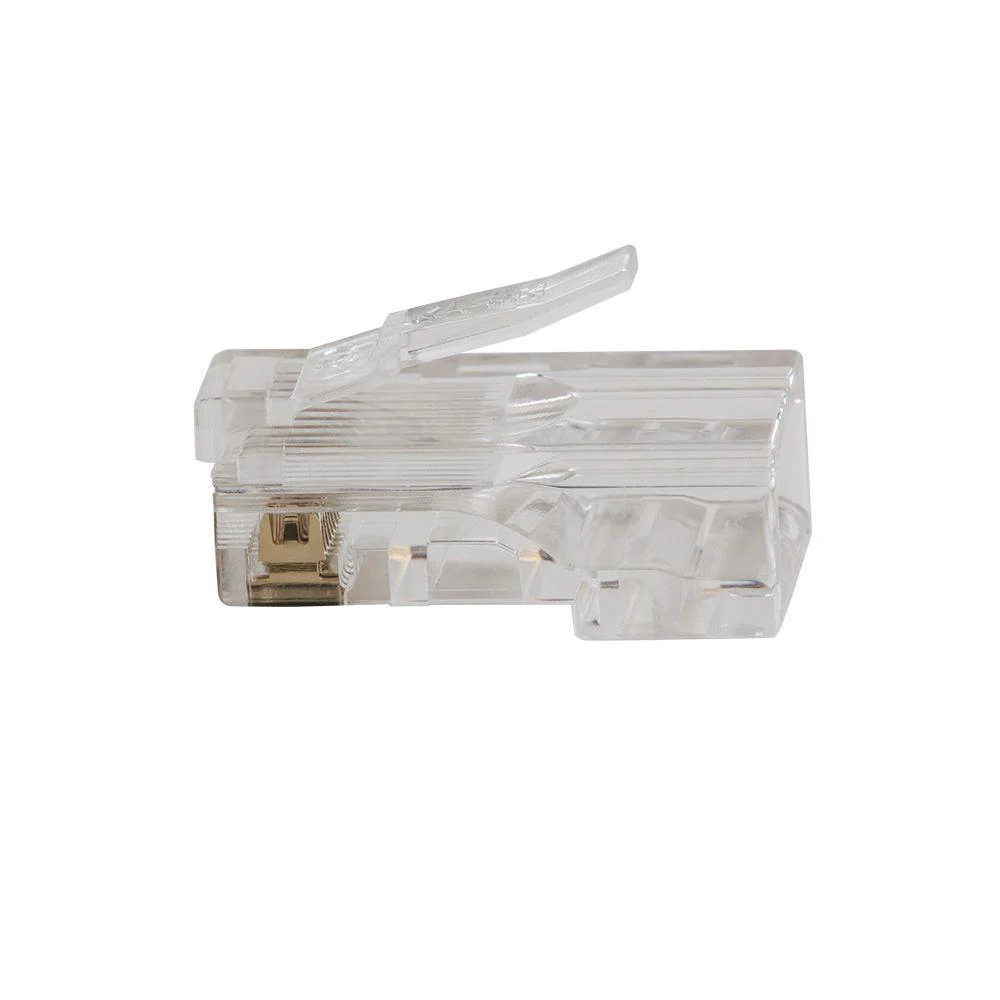

Klein Tools Pass-Thru Modular Data Plugs, RJ45-Cat6, 200-Pack, Model VDV826-763*

Description

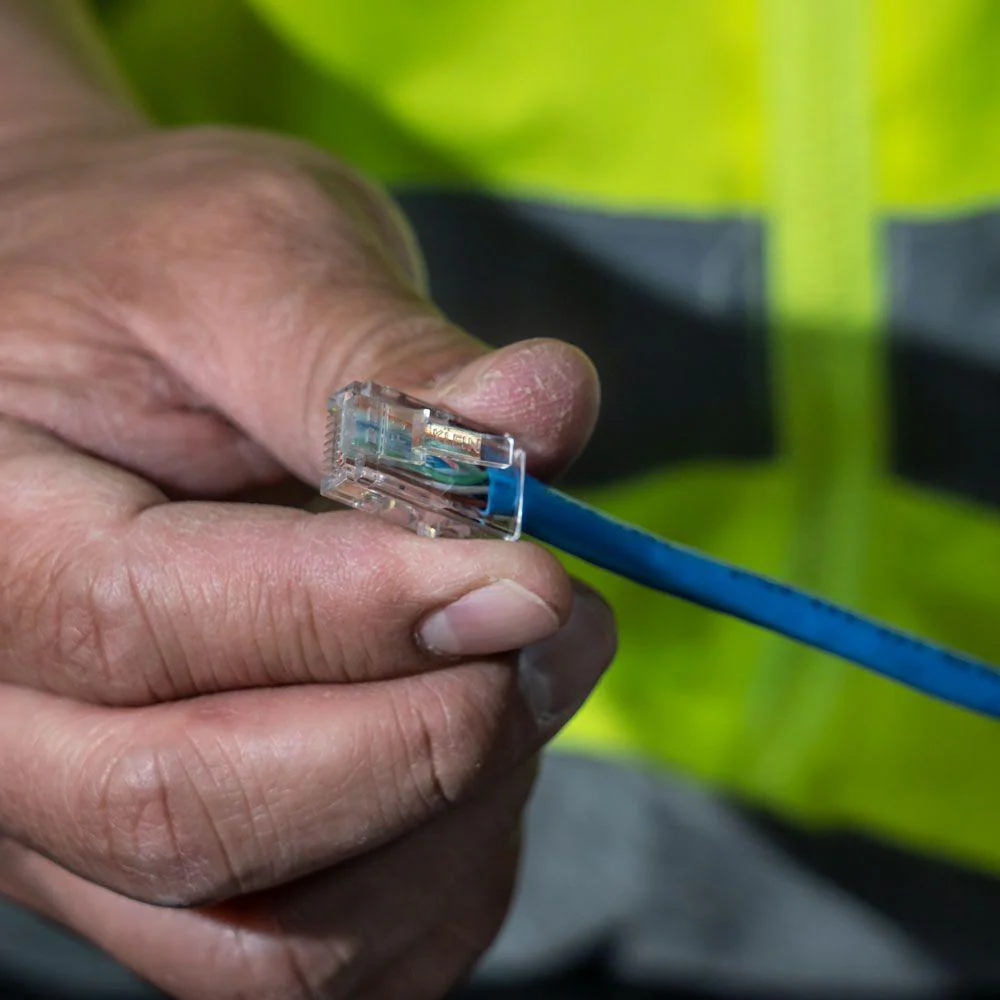

Exclusive Klein-designed Pass-Thru™ modular plugs for fast, reliable connector installations. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards.

Features

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

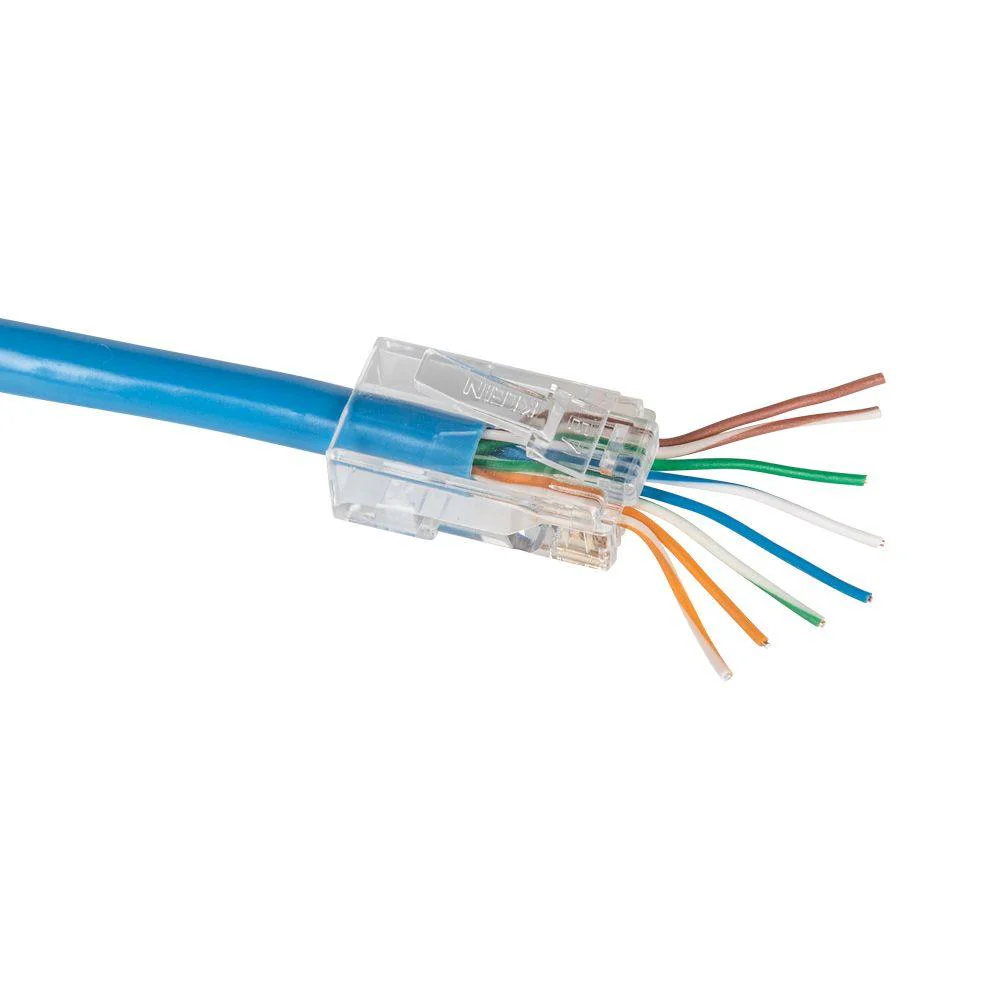

• CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations

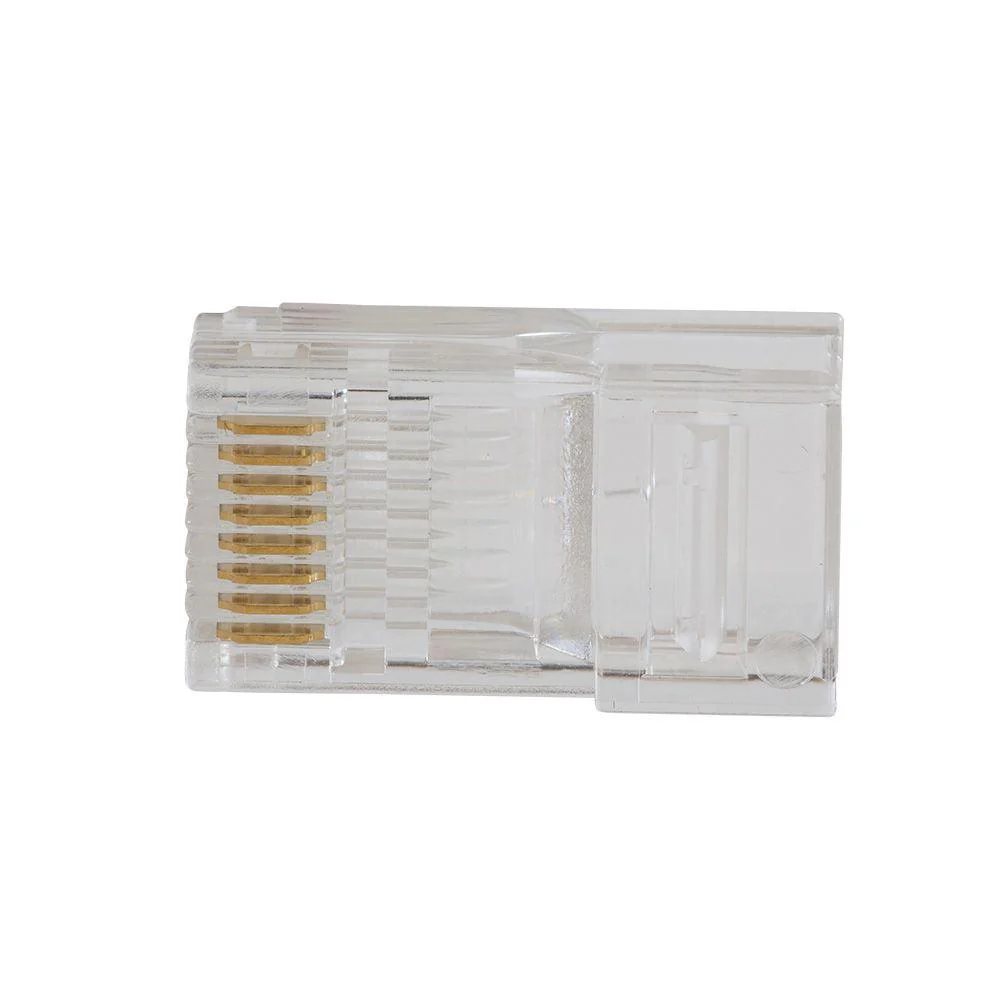

• 50µ inch gold plating on all contact surfaces
• Fully compliant with Power Over Ethernet (PoE and PoE+) standards
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• 200-Pack
• 8 position, 8 contact Pass Through style data plug for solid or stranded cable
• Max diameter for CAT6 Pass-Thru™ Connectors is 0.04-Inch (1.01 mm)

Technical Information

Type: Modular
Application: Voice and Data
Special Features: Pass-Thru Technology; Meets All PoE Standards
Overall Length: 0.875'' (2.2 cm)
Overall Height: 0.453'' (1.2 cm)
Overall Width: 0.094'' (0.2 cm)
Material: PVC Plastic; Gold Plated Contacts
Connector Type: RJ45
Cable Type: CAT6
Position & Contacts: 8P 8C
Connector Color: Clear
Solid Conductor Wire: Yes
Stranded Conductor Wire: Yes
Package Quantity: 200
