Klein Tools Rechargeable Self-Leveling Green Planar Laser Level, Model 93PLL*
Description
The Klein Tools’ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications.
Features
- Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines

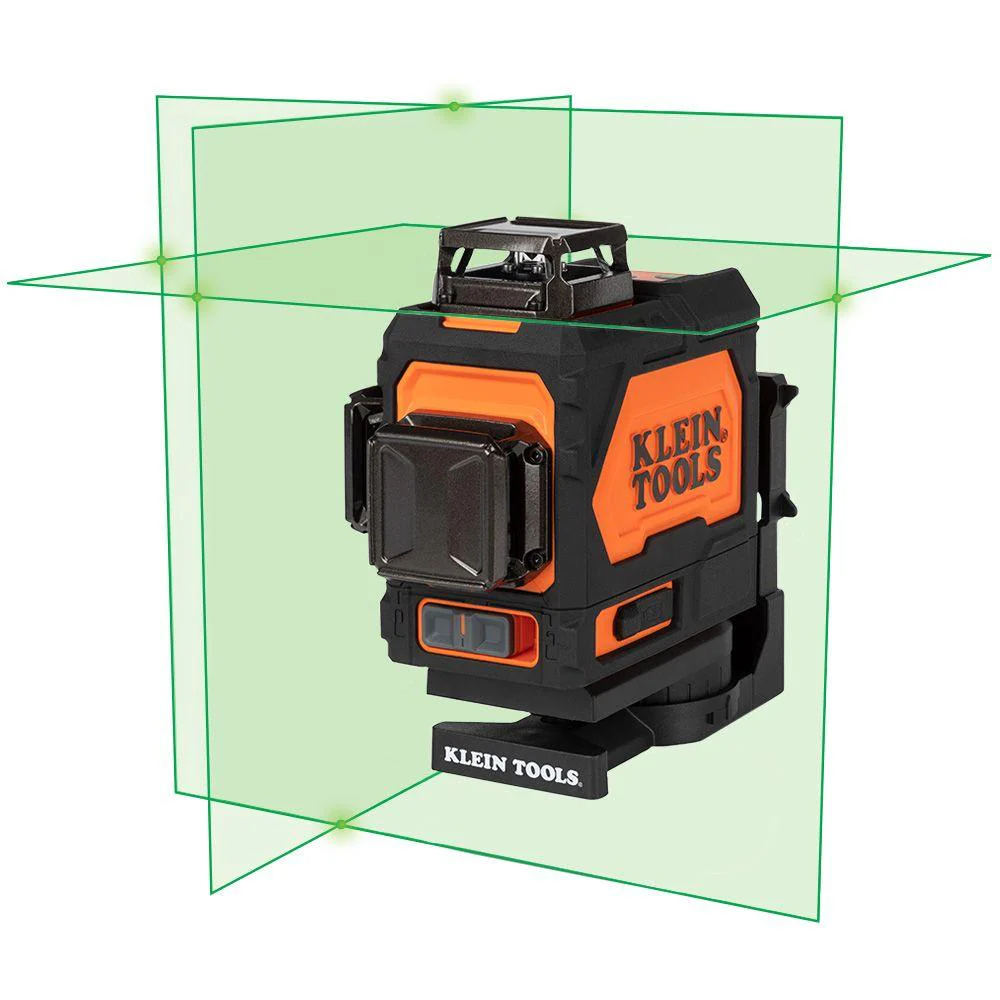

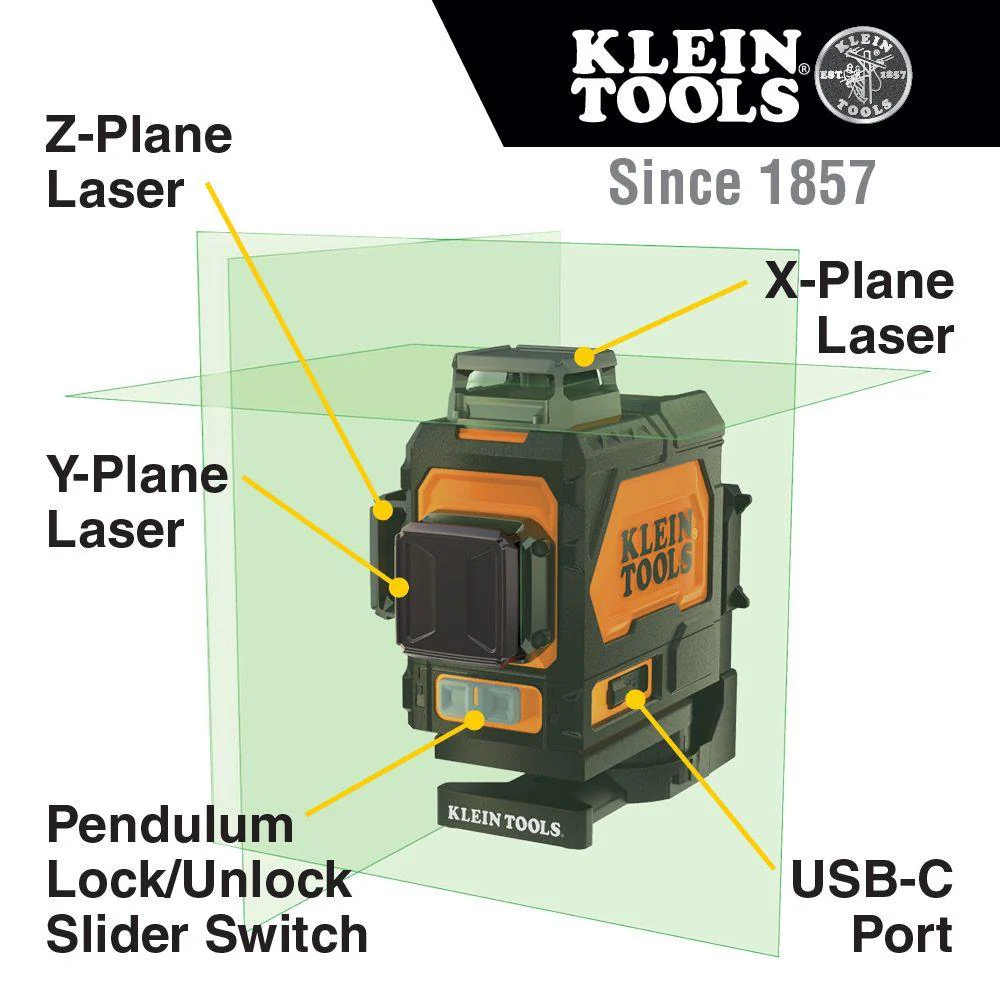

- Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
- View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
- More than 9 hour run time with integrated rechargeable Li-Ion battery
- Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
- Rugged body provides IP54 water and dust resistance; hard plastic carrying case included

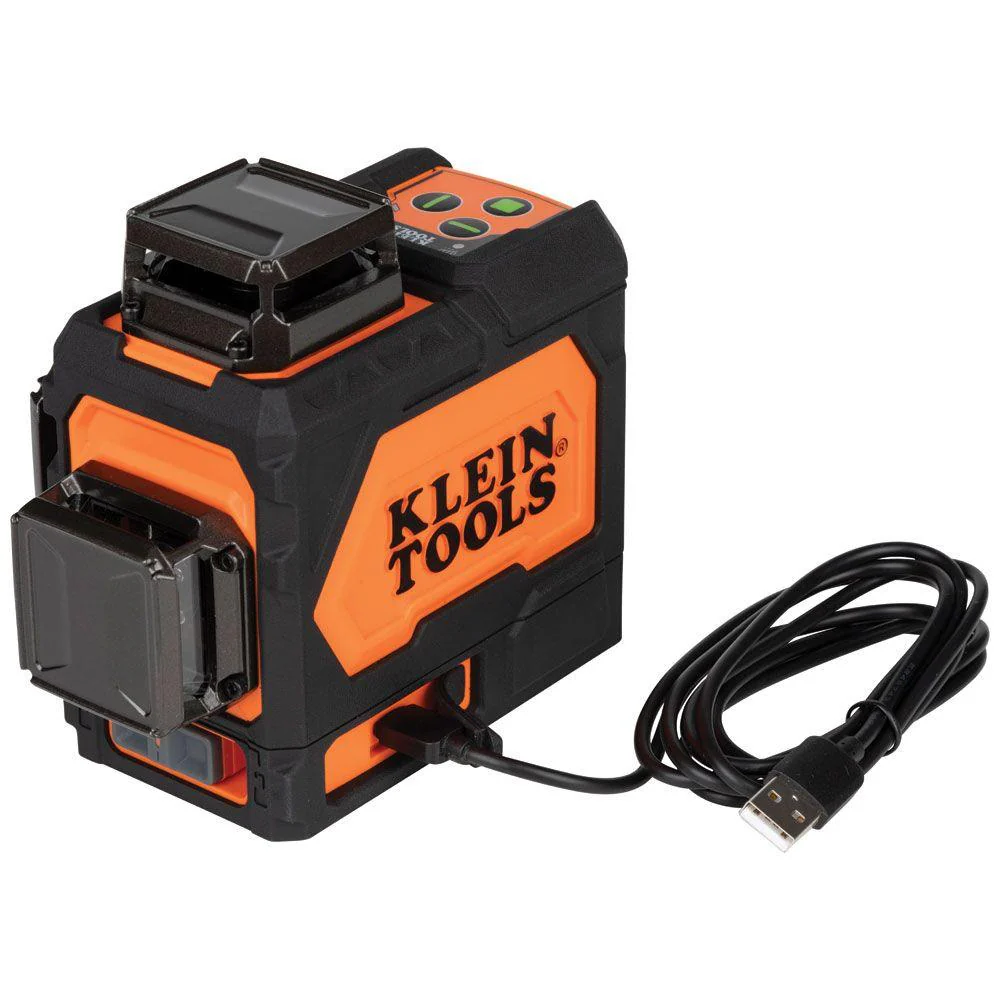

- Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, protective hard carrying case, and instructions
Technical Information
Type: Laser
Application: Self-Leveling Laser Alignment Instrument
Special Features: Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines
Material: ABS Housing and Electronic Components
Batteries: Lithium-Ion
Laser Wavelength: 510-530 nm
Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
Number of Beams: 3
Laser Color: Green
Plumb Laser: No
Indoor Range: 91' (28 m)
Outdoor Range: 91' (28 m)
Maximum Distance: 91' (28 m)
Accuracy: +/- 4.5 mm per 10 m
Pulse Mode: No
Receiver: No
Magnet Type: Rare Earth Magnets
Drop Protection: 3.3' (1 m)
Ingress Protection: IP54: Water and Dust Resistant
Transit Locking Mechanism: Yes
Low Battery Indicator: Yes
Standard: EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
Bag or Case: Hard Carrying Case
Included: Li-Ion Battery, USB-A to USB-C Cable, Magnetic Mounting Bracket, and Hard Carrying Case
Overall Length: 5.5'' (2.2 cm)
Overall Height: 3.5'' (1.4 cm)
Overall Width: 4.8'' (1.9 cm)
Weight: 1.4 lb (0.6 kg)
Document
Original: $307.32
-65%$307.32
$107.56
Description
Description
The Klein Tools’ Rechargeable Self-Leveling Green Planar Laser Level is a high-performance laser leveling and alignment tool for professionals. Clear, bright green 360-Degree lines in the X-, Y- and Z-planes project from this level, and offers plumb up and plumb down marks. Equipped with an integrated magnetic mount and 1/4-20 tripod mounting threads, Klein's self-leveling laser level enables a multitude of alignment and layout applications.
Features
- Rechargeable Self-Leveling Green Planar Laser Level has easy-to-read with high visibility green horizontal and vertical laser lines
- Projects independently or together in X-, Y- and Z-planes for various layout and alignment options
- View the upward and downward plumb marks at the intersection of the Y-plane and Z-plane
- More than 9 hour run time with integrated rechargeable Li-Ion battery
- Integrated magnetic mounting bracket with 1/4-20 tripod mounting threads
- Rugged body provides IP54 water and dust resistance; hard plastic carrying case included
- Includes Li-Ion battery pack, USB-A to USB-C charging cable, magnetic mounting bracket, protective hard carrying case, and instructions
Technical Information
Type: Laser
Application: Self-Leveling Laser Alignment Instrument
Special Features: Rechargeable Battery, Magnetic Mounting Bracket with 1/4-20 Tripod Mounting Threads; 3 Orthogonal 360° Planar Lines
Material: ABS Housing and Electronic Components
Batteries: Lithium-Ion
Laser Wavelength: 510-530 nm
Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
Number of Beams: 3
Laser Color: Green
Plumb Laser: No
Indoor Range: 91' (28 m)
Outdoor Range: 91' (28 m)
Maximum Distance: 91' (28 m)
Accuracy: +/- 4.5 mm per 10 m
Pulse Mode: No
Receiver: No
Magnet Type: Rare Earth Magnets
Drop Protection: 3.3' (1 m)
Ingress Protection: IP54: Water and Dust Resistant
Transit Locking Mechanism: Yes
Low Battery Indicator: Yes
Standard: EN61326-1:2013, EN60825-1:2014, NOM-001-SCFI-2018 and 21 CFR 1040.1 and 1040.11 Except for Deviations Pursuant to Laser Notice No. 50, Dated June 24, 2007
Bag or Case: Hard Carrying Case
Included: Li-Ion Battery, USB-A to USB-C Cable, Magnetic Mounting Bracket, and Hard Carrying Case
Overall Length: 5.5'' (2.2 cm)
Overall Height: 3.5'' (1.4 cm)
Overall Width: 4.8'' (1.9 cm)
Weight: 1.4 lb (0.6 kg)
