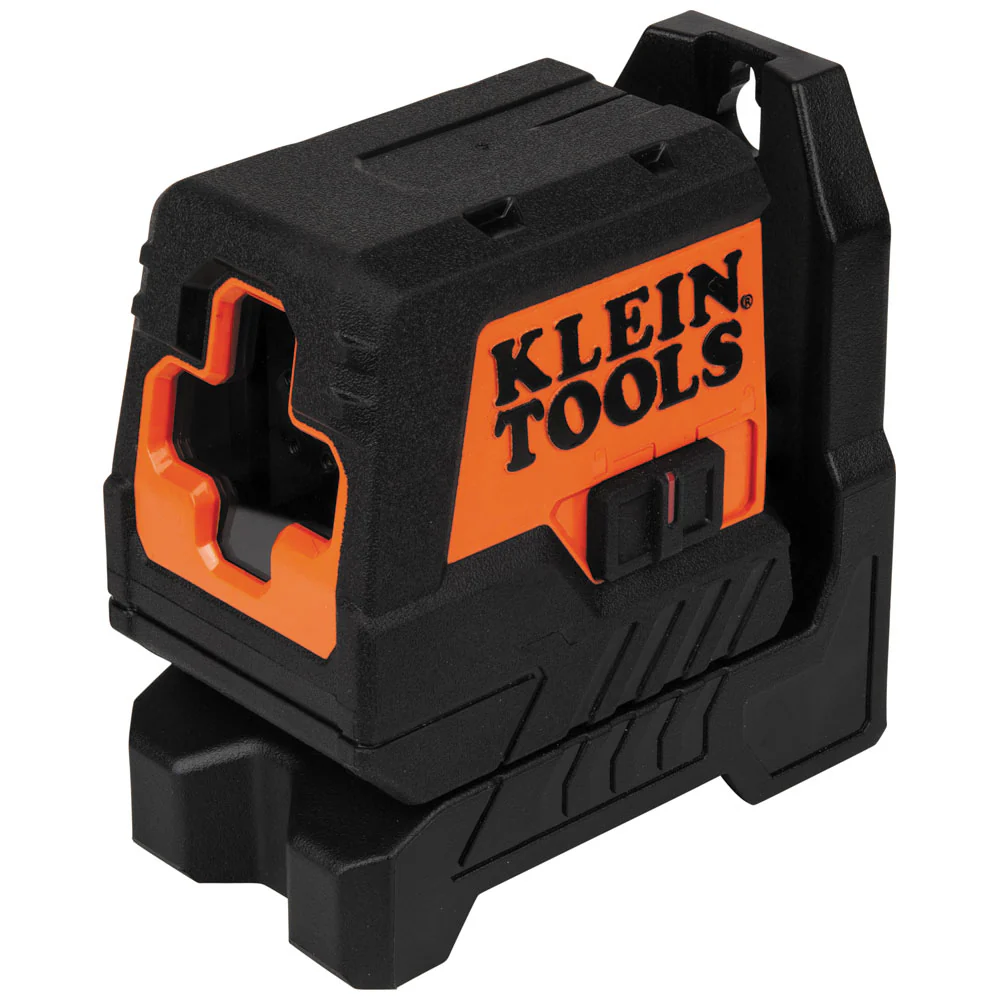

Klein Tools Red Mini Cross-Line Laser Level, Model 93MCLS*
Description
The Klein Tools Mini Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals with over 18 hours of runtime. This level provides a reliable pendulum self-leveling system with red laser level lines. Equipped with a magnetic mounting bracket and overmold design that protects from water and dust, Klein’s Mini Cross-Line Laser Level enables a multitude of alignment and layout applications.
Features

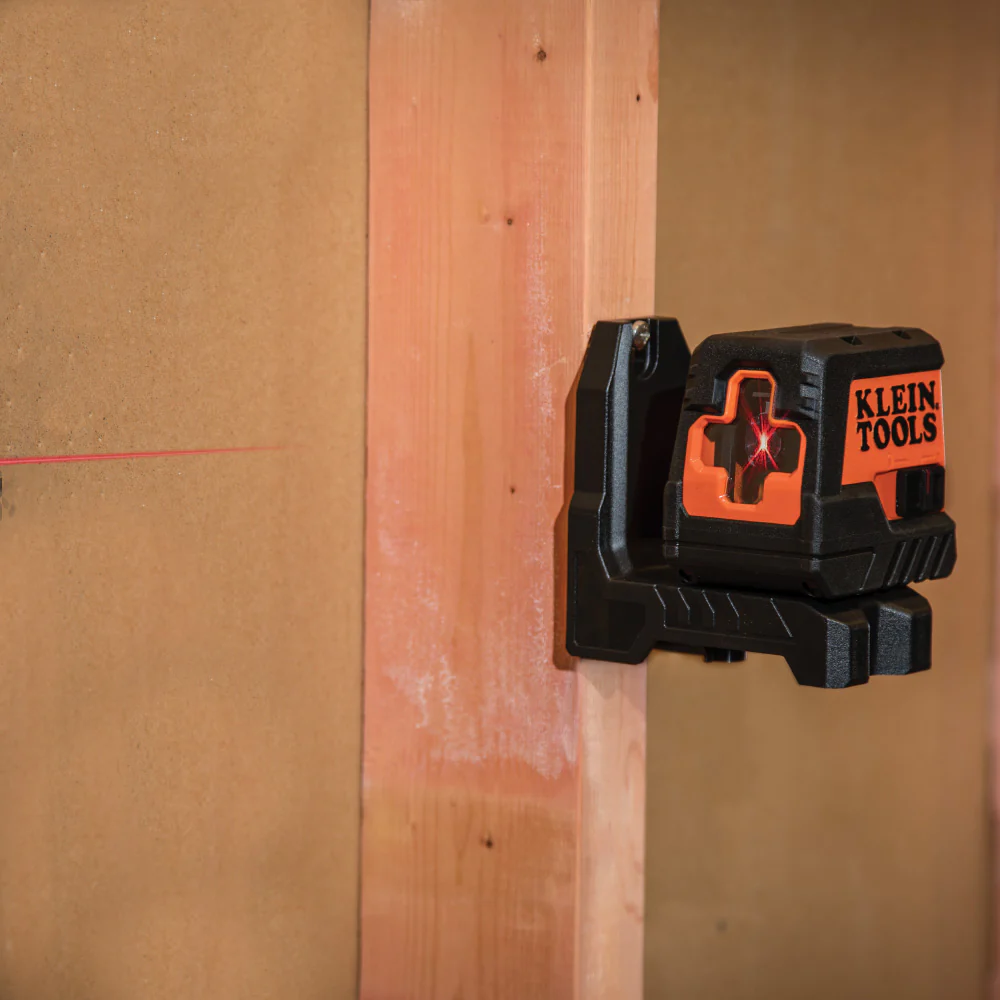

- Self-Leveling Red Laser Level has an easy-to-read bright red horizontal and vertical line with a working range of 35 feet (10.7 m)

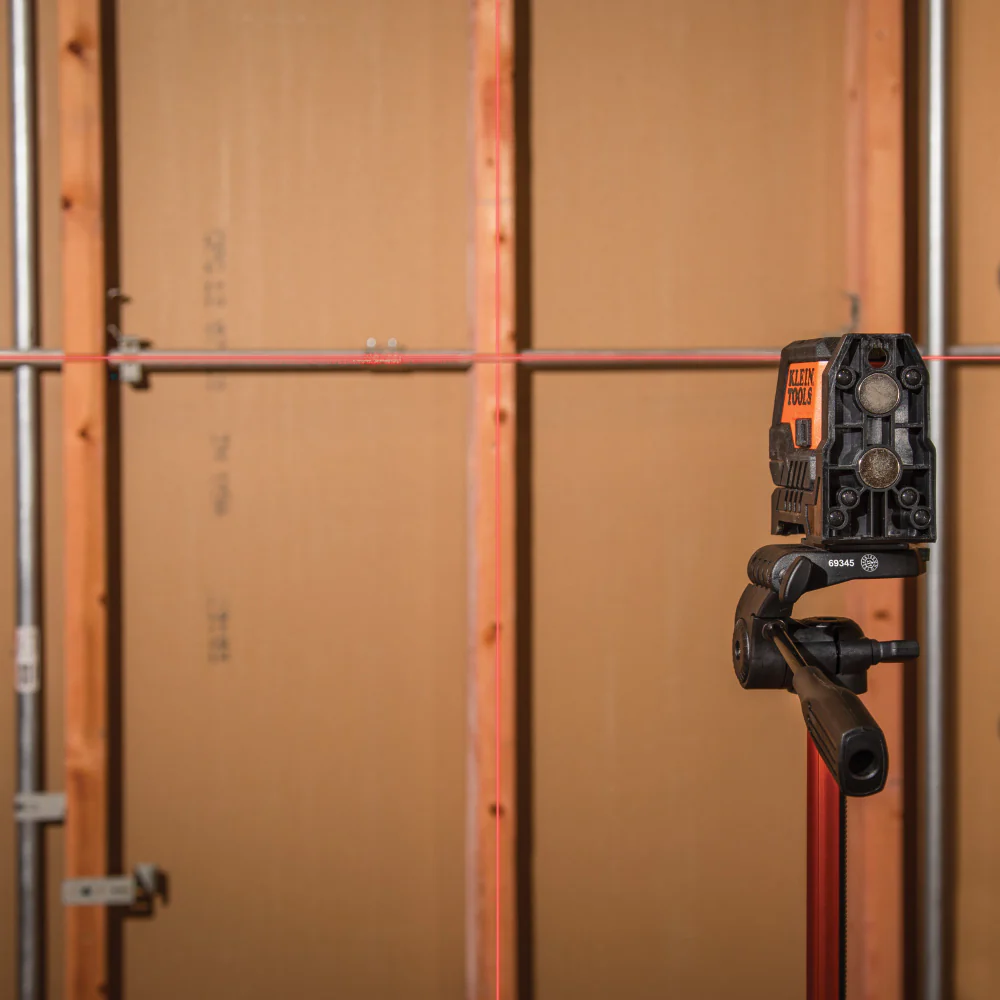

- Projects horizontal and vertical lines to address various alignment tasks
- Compact and lightweight design is easy to use in tight areas and to store when not in use
- High precision laser project clean lines with accuracy of 3/16-Inch at 30 feet (9.1 m); auto out-of-level detection flashes lasers when no longer level

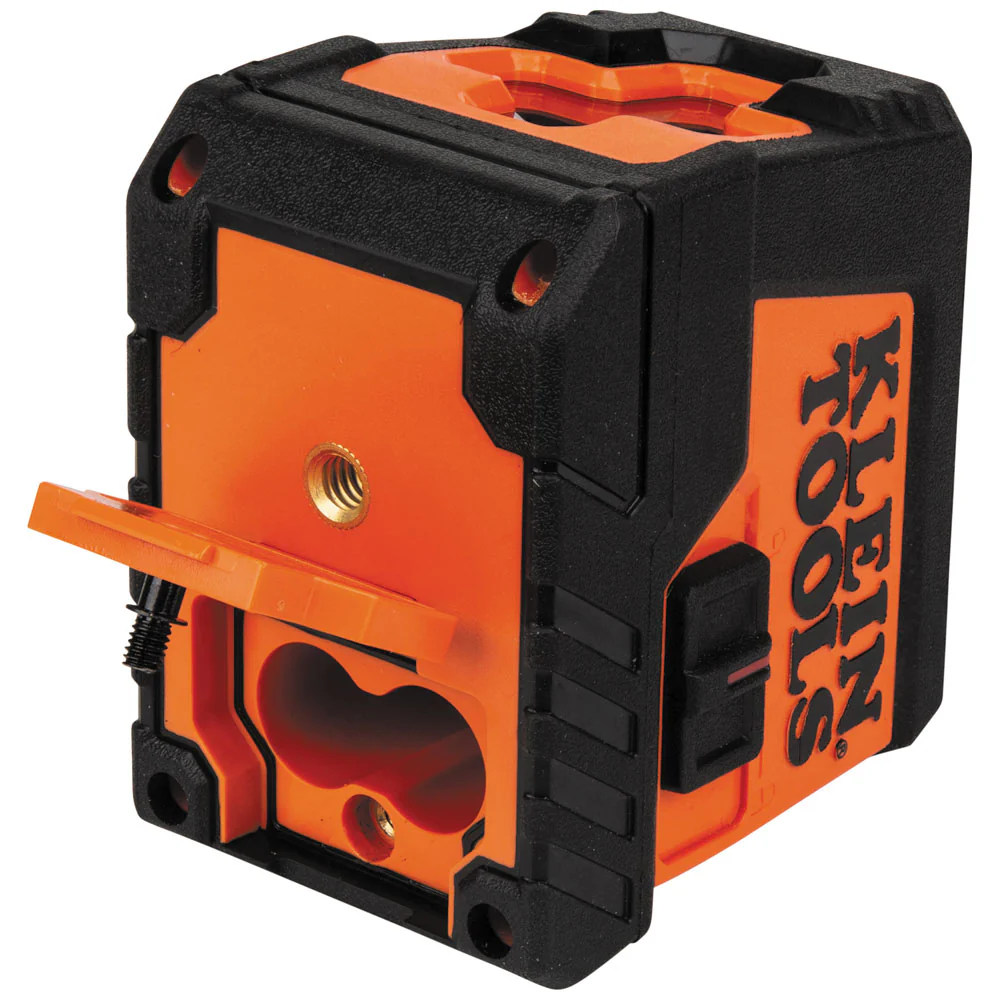

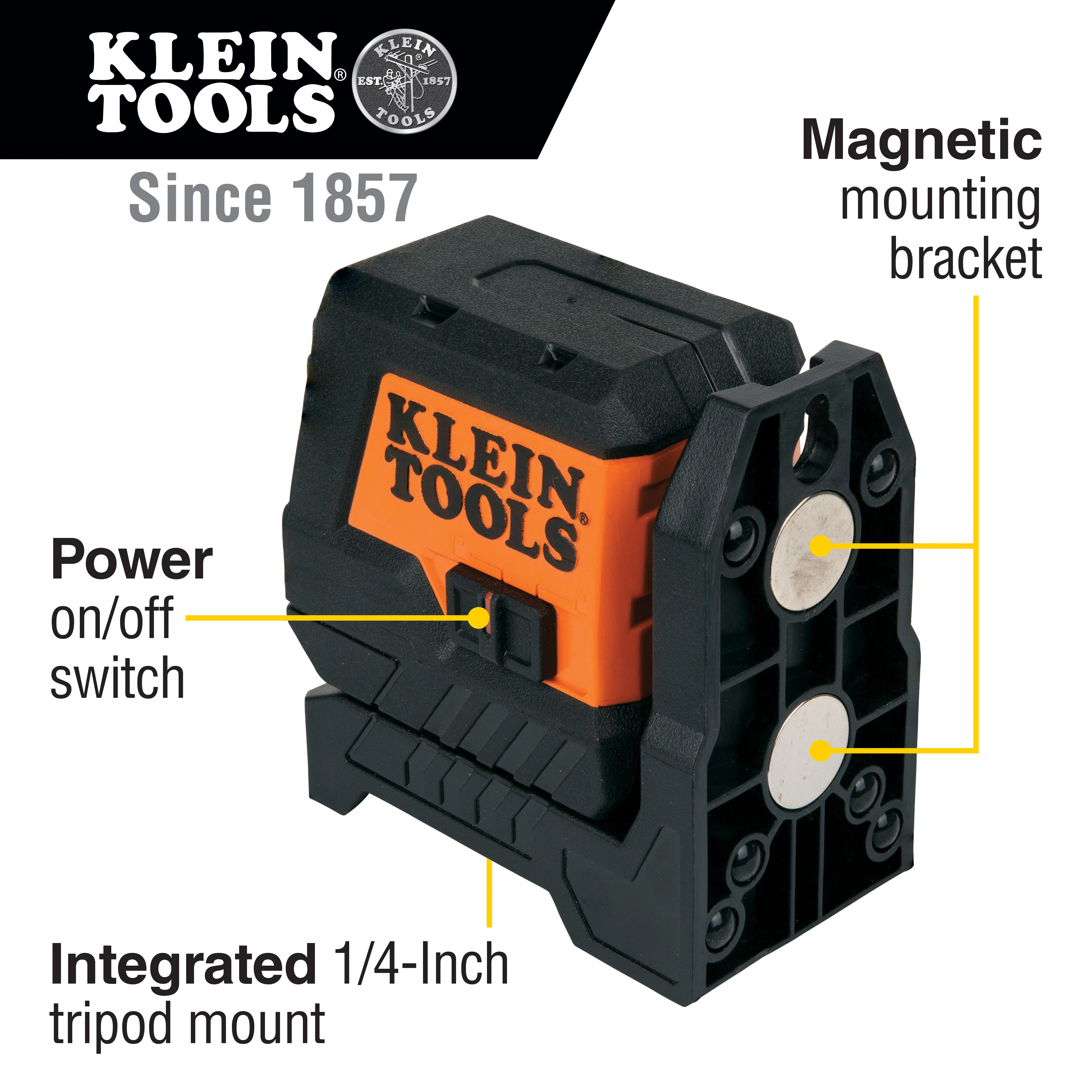

- Magnetic mounting bracket screws into integrated 1/4-Inch tripod mount
- Over 18 hours of runtime provides enough laser power to ensure extended all day use
- Durable overmold design that is IP54 rated protects the laser level from water and dust
Technical Information
Type: Laser
Application: Self-Leveling Laser Alignment Tool
Special Features: Magnetic Mounting Bracket with 1/4'' Tripod Mount; Mounting Clamp Attachment; Out-of-Level Detection, Low Battery Indicator
Material: PC + ABS + TPE
Batteries: 2 x AA
Laser Wavelength: ≤ 1mW 630 - 642 nm

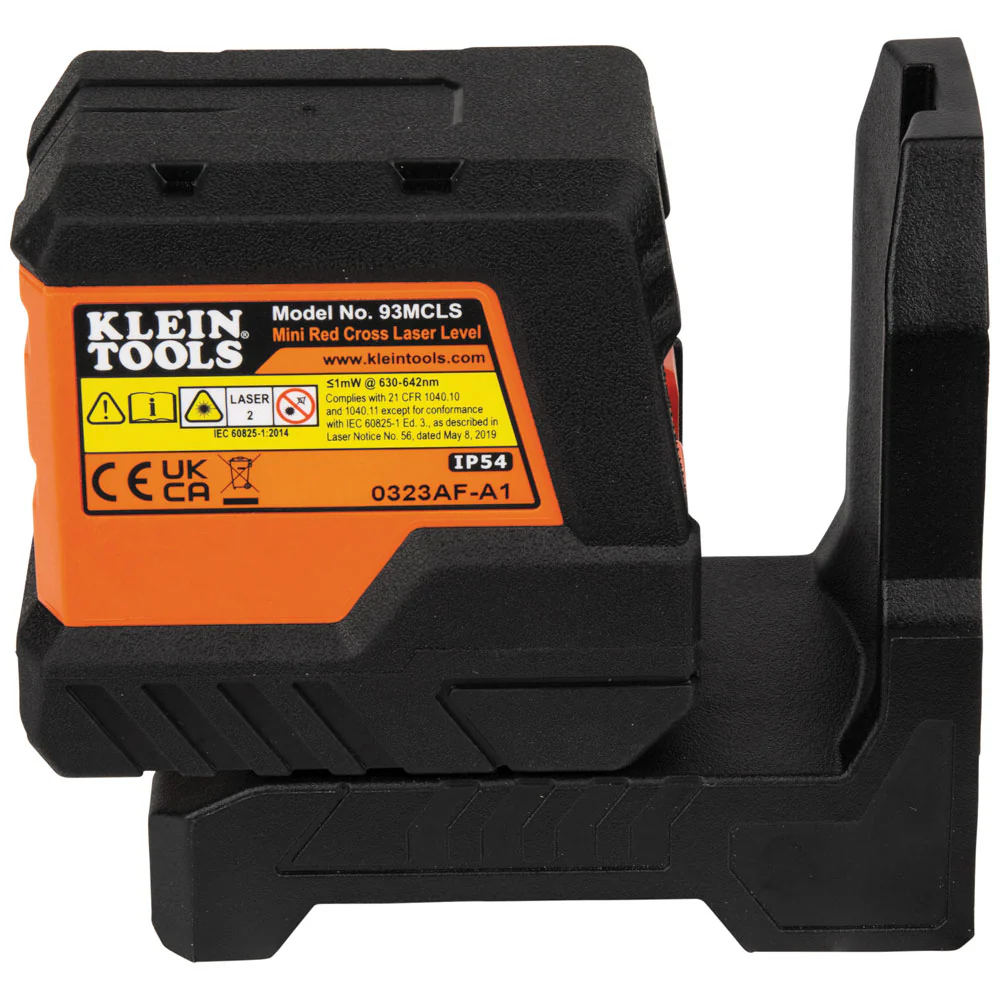

Laser Safety: Complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019
Number of Beams: 2
Laser Color: Red
Plumb Laser: No
Indoor Range: 35' (10.7 m)
Outdoor Range: 35' (10.7 m)
Maximum Distance: 35' (10.7 m)
Display: No
Accuracy: +/- 3/16'' per 33' (10 m)
Pulse Mode: No
Receiver: No
Magnet Type: Rare Earth - Neodymium
Drop Protection: 3' (1 m)
Ingress Protection: IP54: Water and Dust Resistant
Transit Locking Mechanism: Yes
Low Battery Alarm: Yes
Low Battery Indicator: Yes
Out-of-Level Indicator: Yes
Standard: Conforms to EN61326-1:2013, EN60825-1:2014
Mounting Type: Magnetic Bracket, Tripod Mount
Bag or Case: Soft Case
Included: Laser Level, Soft Carrying Case; Instruction Manual; Mounting Clamp; 2 x AA 1.5V Alkaline Batteries
Overall Length: 4.2'' (10.7 cm)
Overall Height: 4'' (10.2 cm)
Overall Width: 3.2'' (8.1 cm)
Weight: 14 oz (397 g)
Battery Life: 18 hr
