Klein Tools Scout Pro 3 Tester with Test + Map Remote Kit, Model VDV501-853*
Description

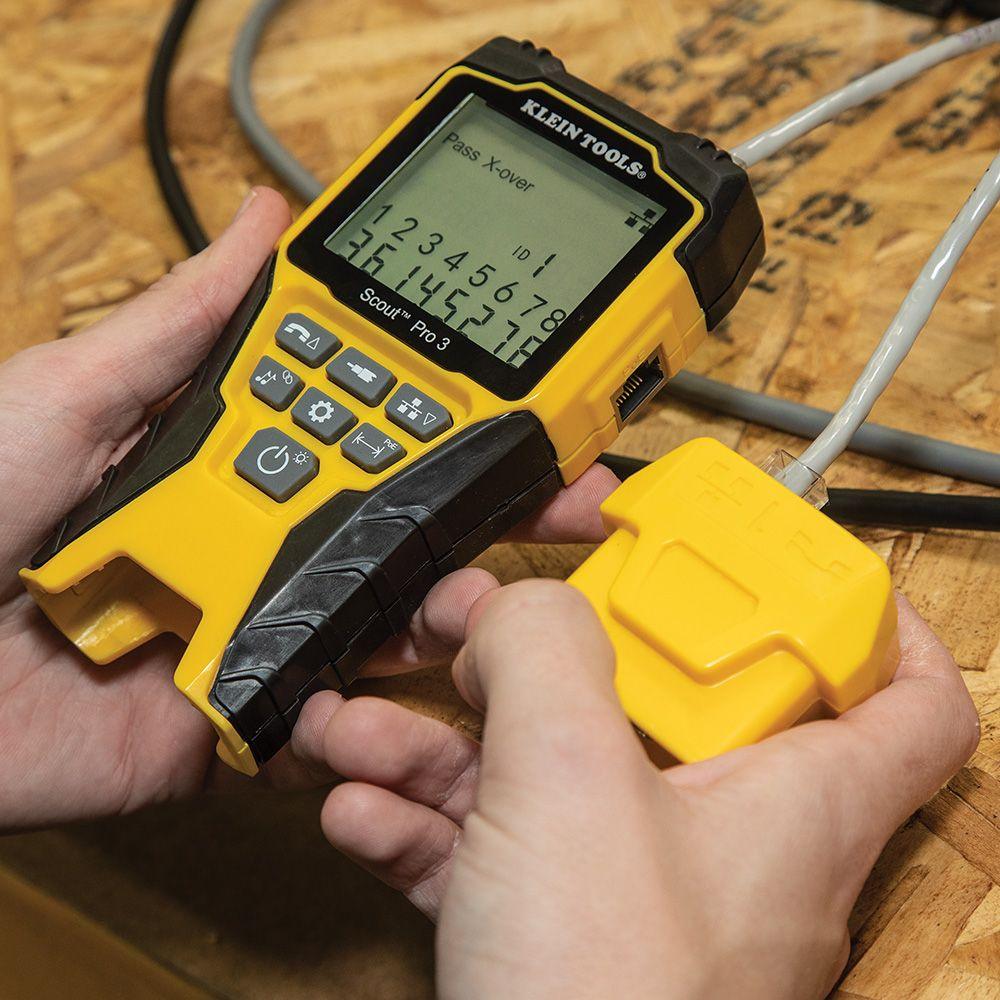

The Scout® Pro 3 Tester with Test + Map™ Remote Kit is a versatile cable tester that locates and tests voice, data and video cables. Use the self-storing remote and Test + Map™ remotes #2 - #6 for fast, accurate identification. Identify POE, POE+, A wiring, B wiring and voltage. This tester also measures cable length. This kit verifies accurate cable installations each time. Backlit display assists in reading results in lower light.
Features
- Tests voice (RJ11/12), data (RJ45) and video (F-connector) coax connections
- Backlit LCD screen displays cable length, wiremap, cable ID and test results
- Wiremap testing, testing for Miswires, Split Pairs, Short Faults, Open Faults, and Shield
- Measures cable length up to 2000 feet
- Trace cables, wire pairs and individual conductor wires with a multi-style tone generator (requires analog probe Cat. No. VDV500-123; sold separately)
- Detect, identify and test Power over Ethernet (PoE)
- Identify multiple cable runs with location-mapping remotes
- Hub blink mode to identify port location on a hub or a switch

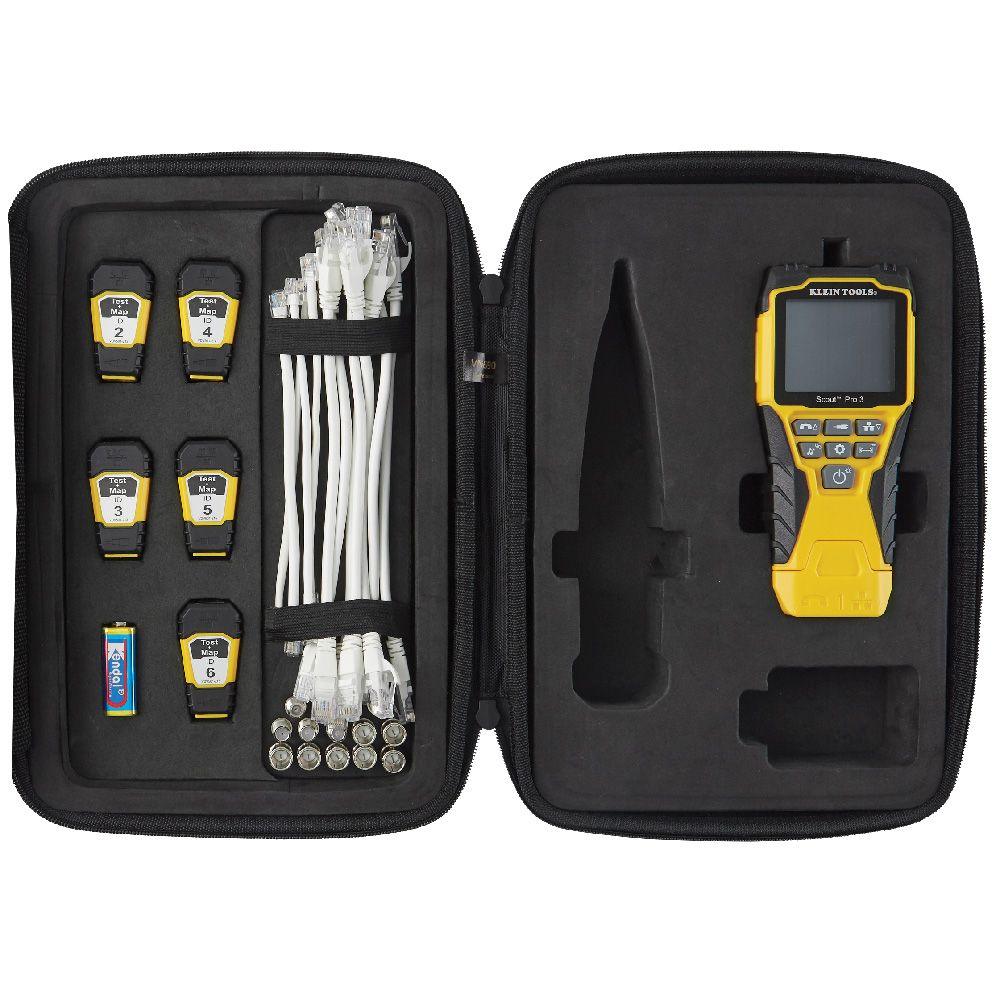

- 1 dockable smart remote, 5 loose smart remotes plus 7 female-to-female and 2 female-to-male coax adapters
- Includes a 9V battery and convenient carrying case
Technical Information
Type: Twisted Pair, DATA, Voice, LAN, and Coaxial
Application: Cable Testing
Special Features: Measures Cable Length; Power over Ethernet; Backlit LCD; Hub Blink
Cable Type: DATA:, Shielded or Unshielded, CAT3, CAT5E, CAT6, CAT6A, CAT7; COAXIAL: RG59, RG6/6Q
Overall Length: 7'' (17.8 cm)
Overall Height: 3.2'' (8 cm)
Overall Width: 1.5'' (3.8 cm)
Material: Plastic and Metal
Test-n-Map ID Remotes: (1) Self-Storing, (5) Test + Map™ Remotes (#2 - #6)
Batteries: 9V Alkaline
Battery Life: 50 Hours Active
Drop Protection: 2 m
Supported Remotes: 18
Connection & Adapter Types: RJ11, RJ12, RJ45, Coax F
Display: Backlit LCD
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-123); Sold Separately
Faults Detected: Open, Short, Miswire
Test & Measure Types: Ethernet, Data, Coaxial
Standard: CE
Document
Original: $265.11
-65%$265.11
$92.79
