Klein Tools Tripod for 93PLL, Model 69345

Description

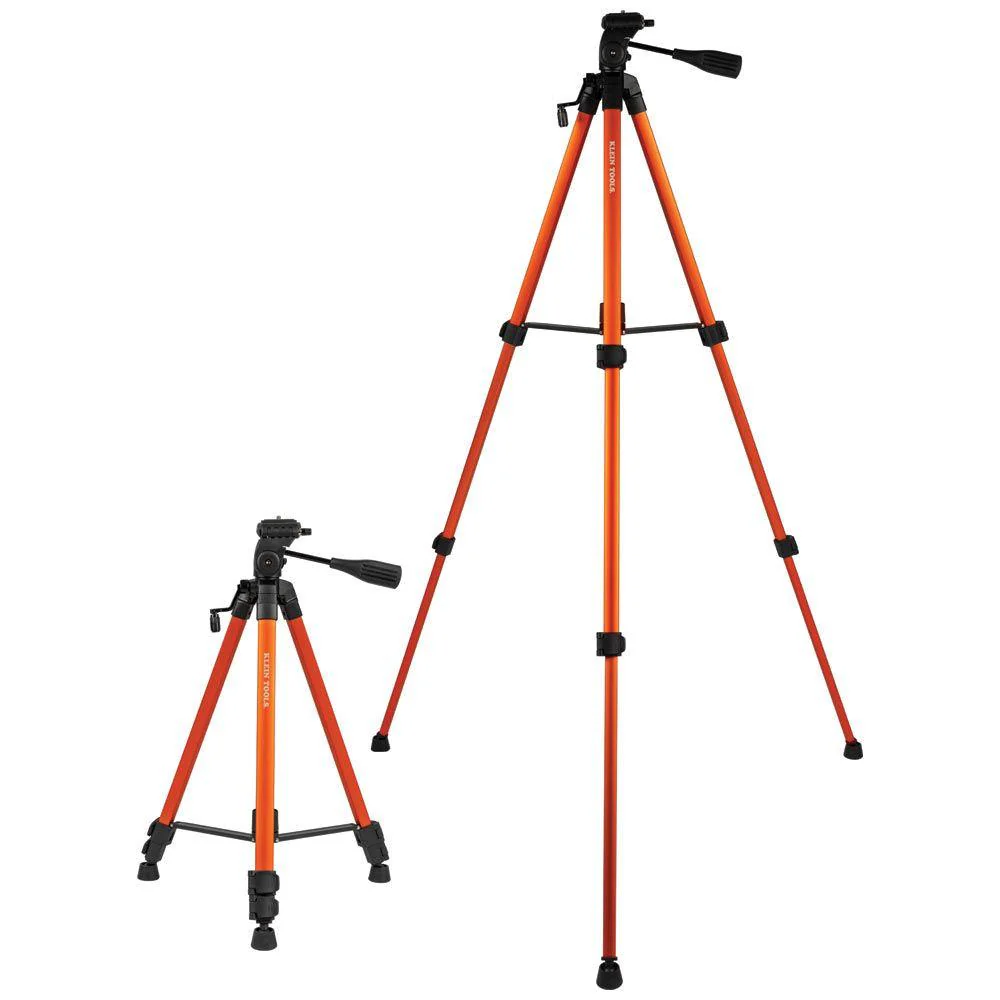

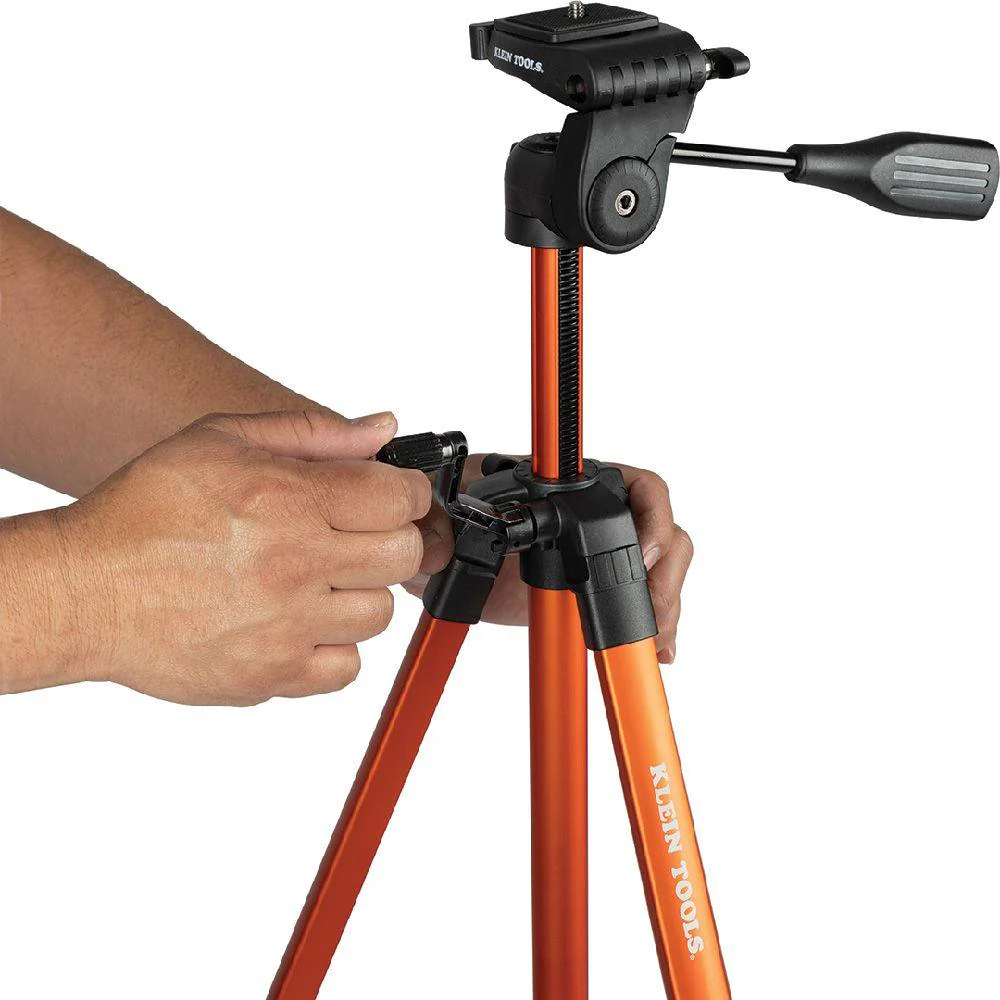

The Klein Tools Tripod is compact and made of a lightweight aluminum to carry on any jobsite. Each leg is adjustable with locks to secure the legs in place, and has non-skid feet to allow for stability on uneven terrain. The tripod reaches a height of 61-Inch once the legs and pedestal are fully extended. Swivel the pedestal 360 degrees with the pan and tilt handle and check the built-in bullseye level to ensure the tripod is on an even plane. Secure a compatible Klein Tools laser level to the tripod by screwing it to the 1/4-20 mounting threads, and when it is time to wrap up a job detach the level easily by removing the quick release plate.

Features

• Tripod is compact and made of lightweight aluminum construction
• Adjustable legs and non-skid feet allow for stability on uneven terrain
• Pan and tilt handle allows for 360-Degree rotation and tilts pedestal to the desired orientation
• Built-in bullseye level helps ensure the tripod is on a level plane

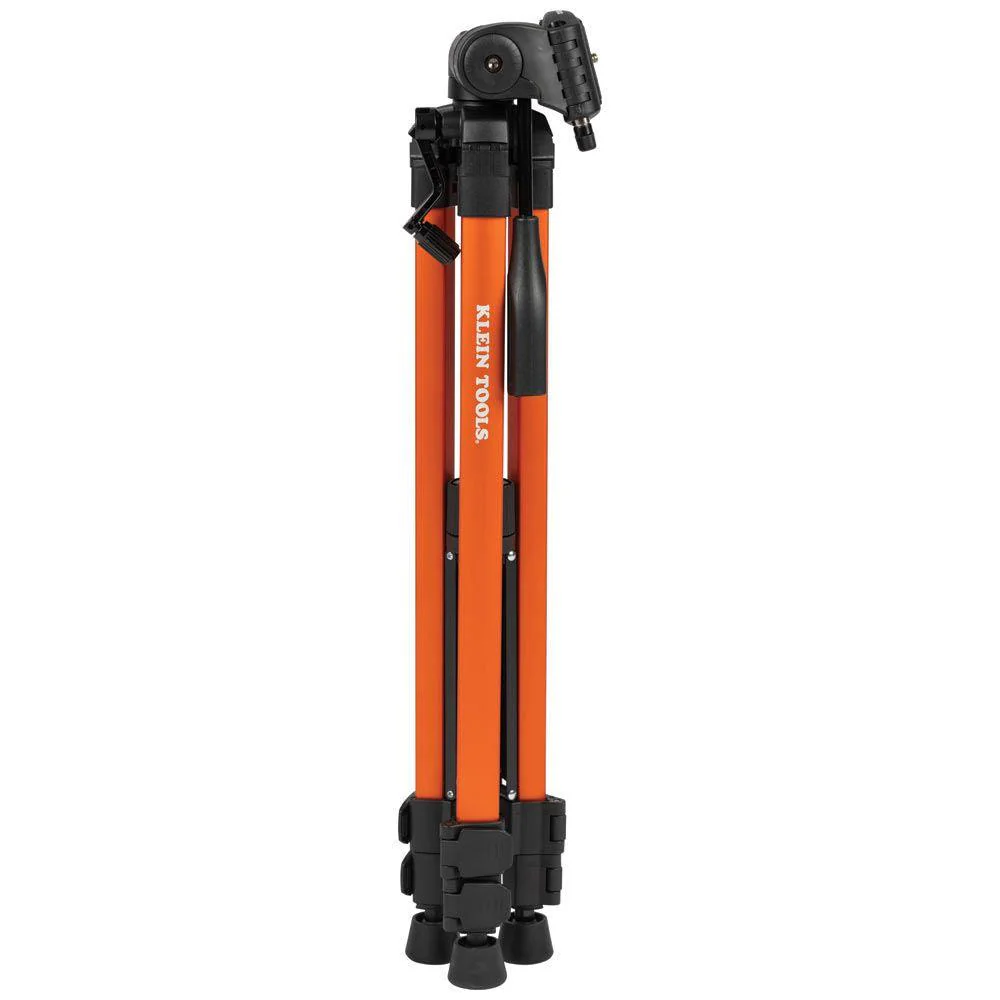

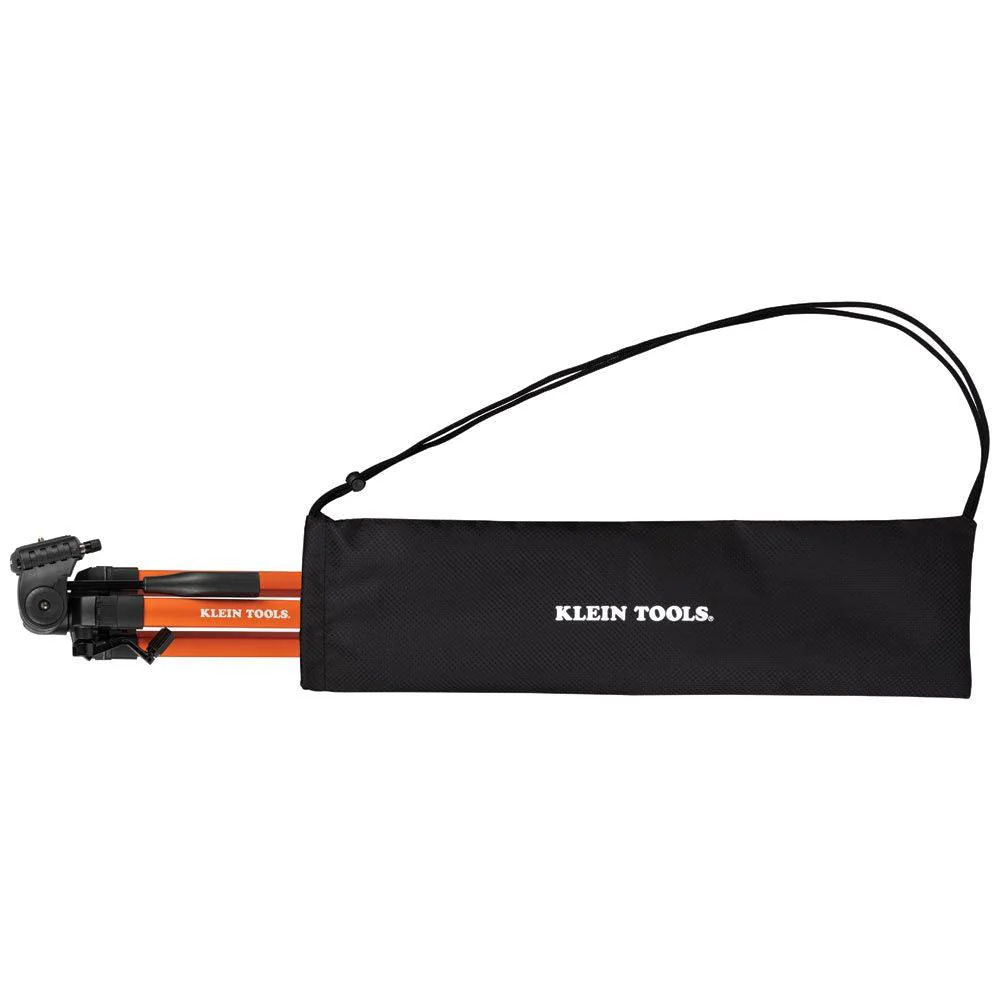

• Tripod collapses and stores easily in the provided pouch
• Quick release plate with a 1/4-20 mounting thread
• Compatible with Klein Tools laser levels and products that attach to a 1/4-20 mounting thread such as cameras and video equipment

Technical Information

Type: Accessory
Application: Laser Levels
Special Features: Quick Release Plate
Material: Aluminum
Pan Range: 360°
Tilt Range: 180°
Lateral Tilt: 90°
Head Type: Quick Release
Mounting Thread Size: 1/4-20
Adjustable Height: 22'' to 61'' (55.9 cm to 154.9 cm)
Overall Length: 23'' (9.1 cm)
Overall Height: 4.5'' (1.8 cm)
Overall Width: 4.5'' (1.8 cm)
Marking: ''Klein Tools'' ''69345''
Leg Sections: 3
Leg Licking Type: Flip Lock
Includes: Tripod, Carrying Bag
Weight: 3.31 lb (1.5 kg)
