Klein Tools Wide Range Distribution Grip, Model 16477*

Description

Versatile, one-handed grip holds a wide range of cable sizes pulling No. 6 Copper to No. 477 ACSR. 20-Percent lighter than Klein's Cat. No. KT4500 grip with easy, one-handed actuation. Made in the USA, this grip has a maximum safe load of 5000-Pound (2268 kg).

Features

• Wide Range Distribution Grip pulls No. 6 Copper to No. 477 ACSR 0.162 to 0.883-Inch (4.11 to 22.42 mm) cable
• 20-Percent lighter than the Cat. No. KT4500 grip
• One-handed design makes for easier actuation
• Spring closes grip on cable to hold the initial position
• Made in the USA
• Large opening in the handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

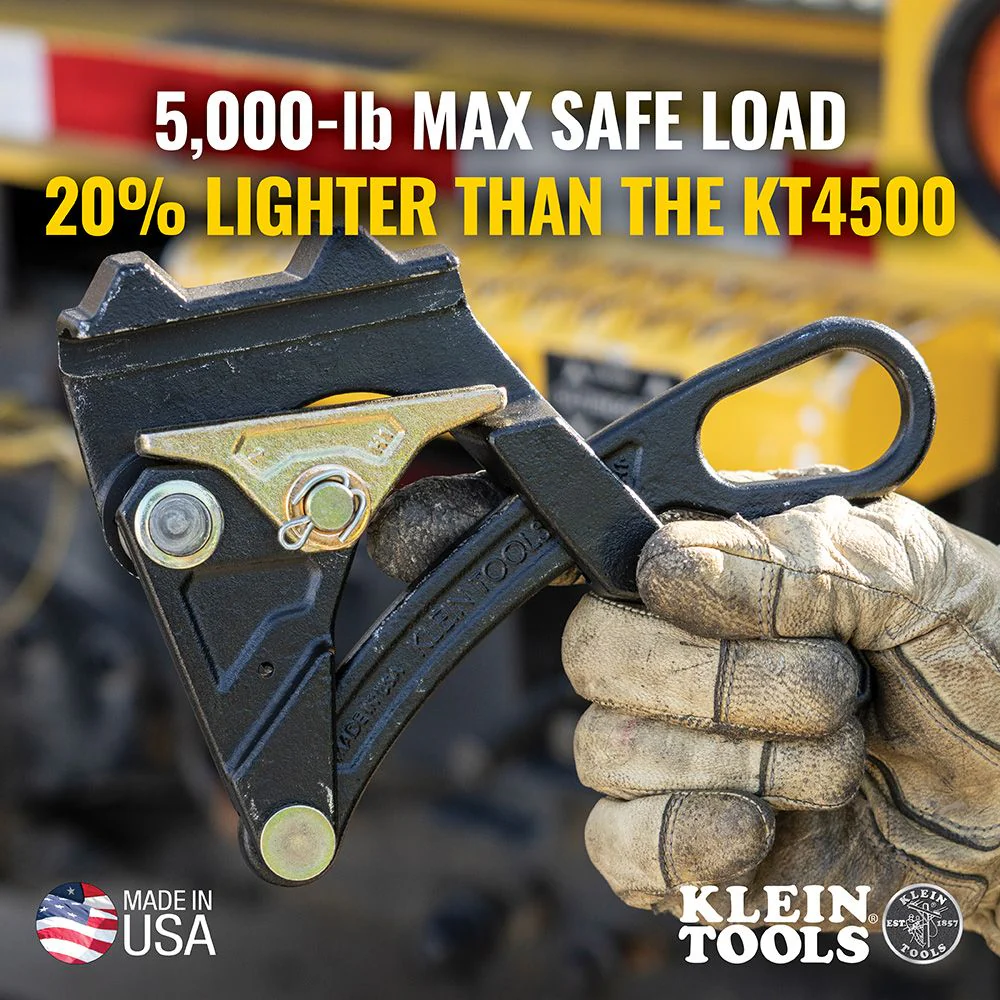

• Max Safe Load of 5000-Pound (2268 kg)
• Patent pending design

Technical Information

Type: Parallel Jaw Grip
Application: Wire Pulling
Special Features: One-Handed Grip
Overall Length: 10'' (25 cm)
Overall Height: 1.25'' (3.2 cm)
Overall Width: 6.5'' (16.5 cm)
Material: Steel
Cable Type: Bare Copper, Aluminum, ACSR
Cable Diameter: 0.162 to 0.883'' (4.11 to 22.42 mm)
Hot Latch: N
Swing Latch: N
Spring: Y
Locking Handle: N
Jaw Type: Round
Jaw Length: 3.31'' (8.4 cm)
Maximum Safe Load: 5000 lb (2268 kg)
Weight: 2.9 lb (1.3 kg)
