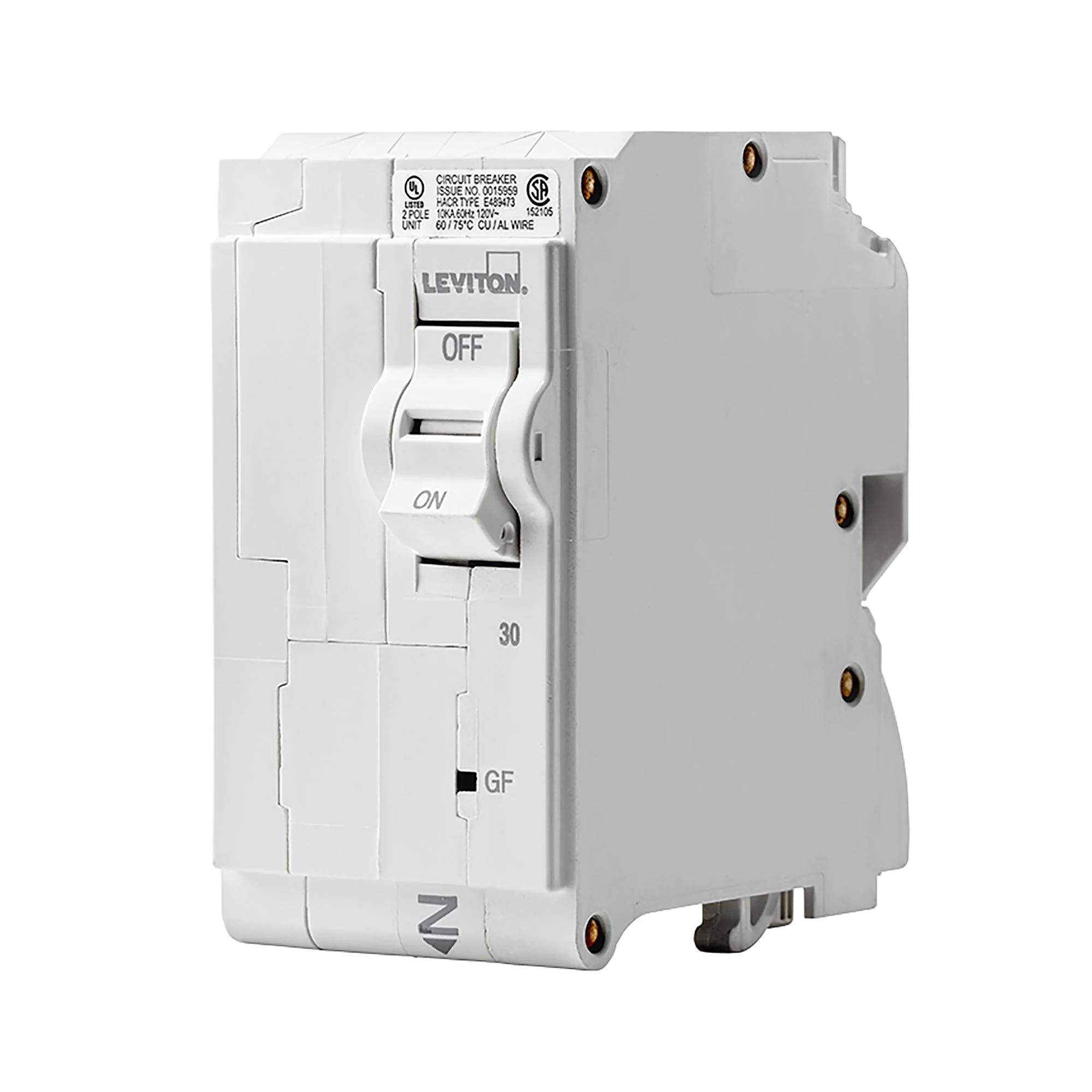

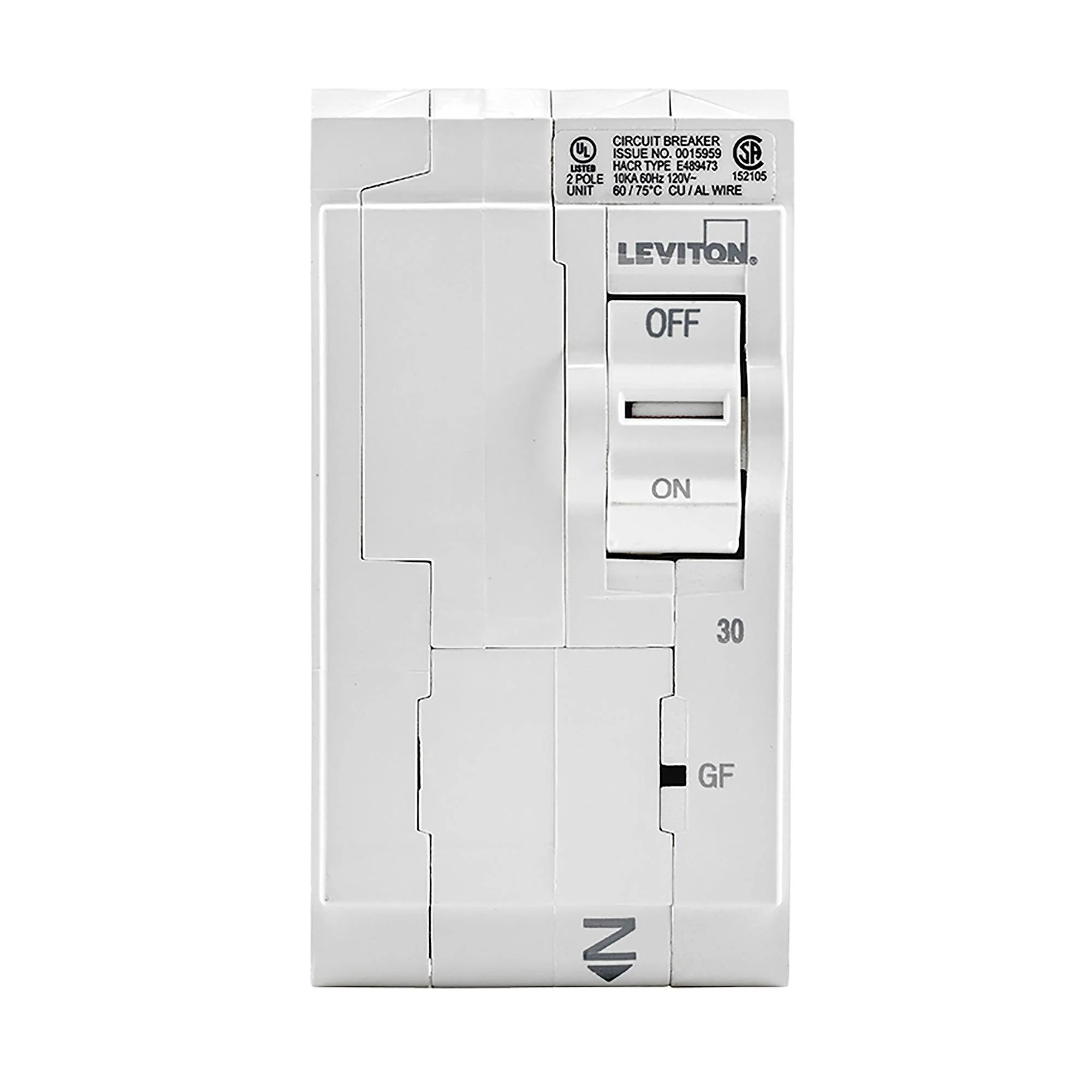

Leviton 2-Pole 30A 120/240V GFCI Plug-On Circuit Breaker, Model LB230-003

Description

Leviton has channeled their patented technology into the development of GFCI Circuit Breakers; resulting in two industry-leading solutions to help protect against shock and electrocution. Leviton GFCI circuit breakers have reset/lockout functionality and prevent reset of the device if it is not wired or operating correctly.

****For security reasons, we cannot accept returns on circuit breakers.

Benefits

• SmartlockPro reset/lockout feature prevents reset of the device if for any reason it is unable to respond to a ground-fault
• LED indicator light incorporated into each individual circuit breaker allows users to easily identify trip condition
• Line-side power ensures that the LED remains lit, even when a circuit breaker has tripped
• Color indicators in the handle make it easy to see operational status at-a-glance
• 10KA Interrupt Rating
• Hydraulic-Magnetic trip technology helps prevent false tripping, even in extreme temperature ranges (-40ºC to 85ºC)
• For applications up to 60A when using copper wire; or 50A when using aluminum wire

VIDEO : The Leviton Load Center - The Most Intelligent Residential Breaker System

Technical Information

Type: GFCI
Operating Temperature: -40°C to 85°C
Ampage: 30 A
Voltage: 120/240 VAC
Pole: 2
Short Circuit Current Rating: 10 KA
