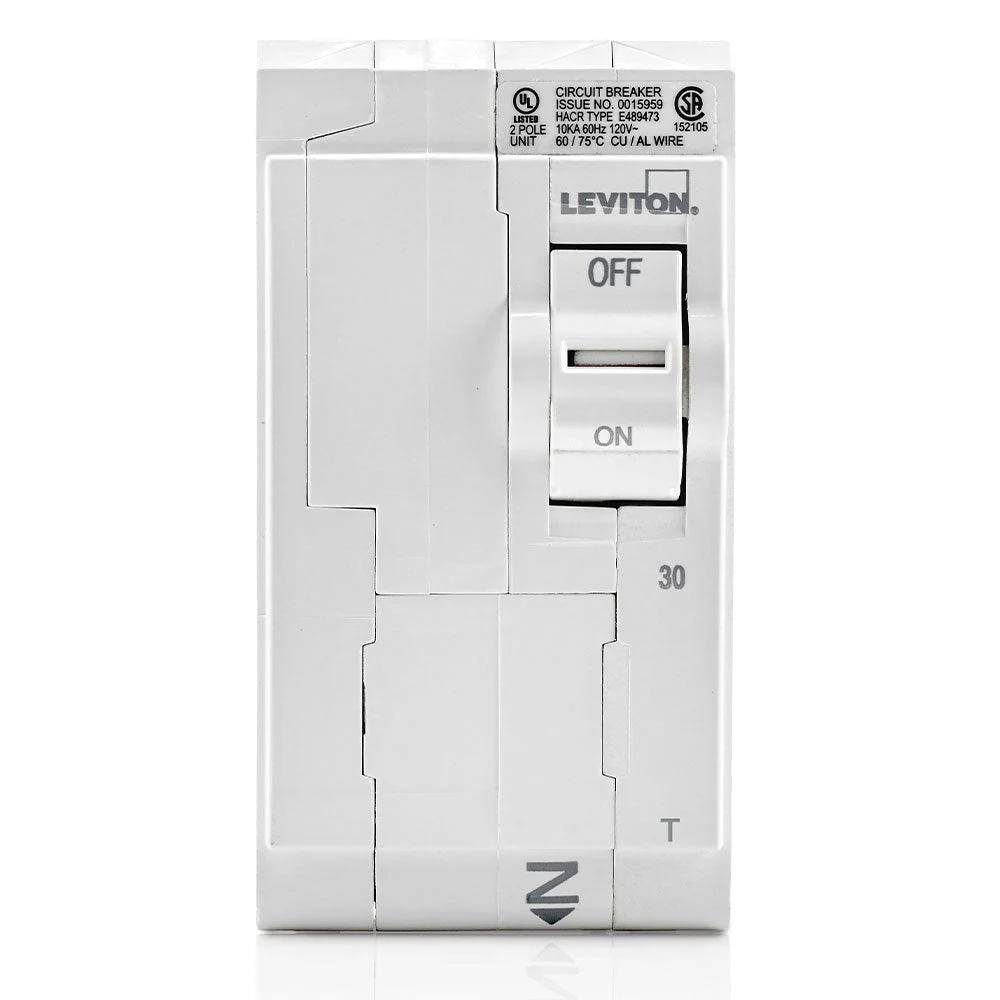

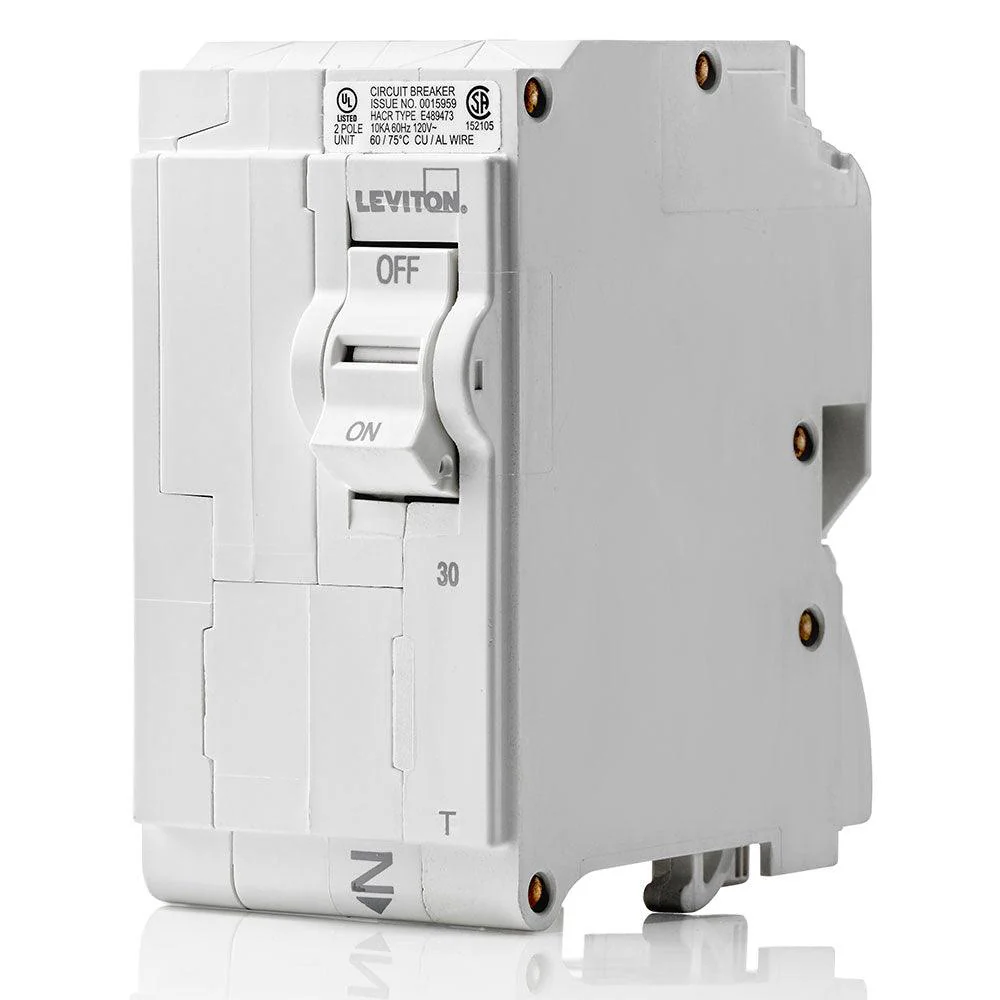

Leviton 2-Pole 30A 120/240V Standard Thermal Magnetic Circuit Breaker, Model LB230-T*

Description

The Leviton Thermal Magnetic breakers are best used for traditional applications where temperatures do not fluctuate far from the reference ambient temperatures for circuit breakers, 25°C to 40°C (77°F to 104°F).The face of each breaker is marked with a ‘T’ indicating Thermal.

****For security reasons, we cannot accept returns on circuit breakers.

Benefits

• Simple: Features an all plug-on design - no wiring to the circuit breaker
• Intuitive: Color indicators in the handle to easily see operational status at-a-glance
• Approachable: Contemporary aesthetic and rocker style handle are more user friendly

Technical Information

Dimensions: 3.9" H x 2.0" W x 3.1" D
Smart: No
Warranty: 10-Year Limited
Weight: 0.85 lbs.
Wiring: All Plug-on
Amperage: 30 A
Breaker Technology: Thermal Magnetic
Pole: 2
Short Circuit Current Rating: 10 KA
Type: Standard
Voltage: 120/240 VAC

Standards & Certifications

CSA-C22.2 No. 5-02: Yes
EMC Compatibility: Yes
FCC: Yes
RoHS: Yes
UL 489: Yes
