Leviton 32A Level 2 Electric Car Charger Wi-Fi, Model EV32W*
Description
Leviton is proud to be a pioneer in the electric vehicle supply equipment (EVSE) industry, providing charging solutions for over a decade while keeping up with the latest technology. My Leviton enabled solutions offer a full portfolio of connected devices so any home, new or old, can be a smart home.
Features
- SMART – Works with the My Leviton App via Wi-Fi, allowing you to take control of your entire home, from load center to lighting to EV charger.
- THE BRAND YOU TRUST – Leviton has been in homes for over a century and electrifying vehicles for over a decade. Charge at ease with UL/Energy Star Certified stations supported by a 24/7 dedicated team
- FOR ANY APPLICATION – featuring a water-resistant enclosure rated NEMA Type 3R and a cable designed to prevent freezing and cracking in extreme weather, you can install both indoors and outdoors

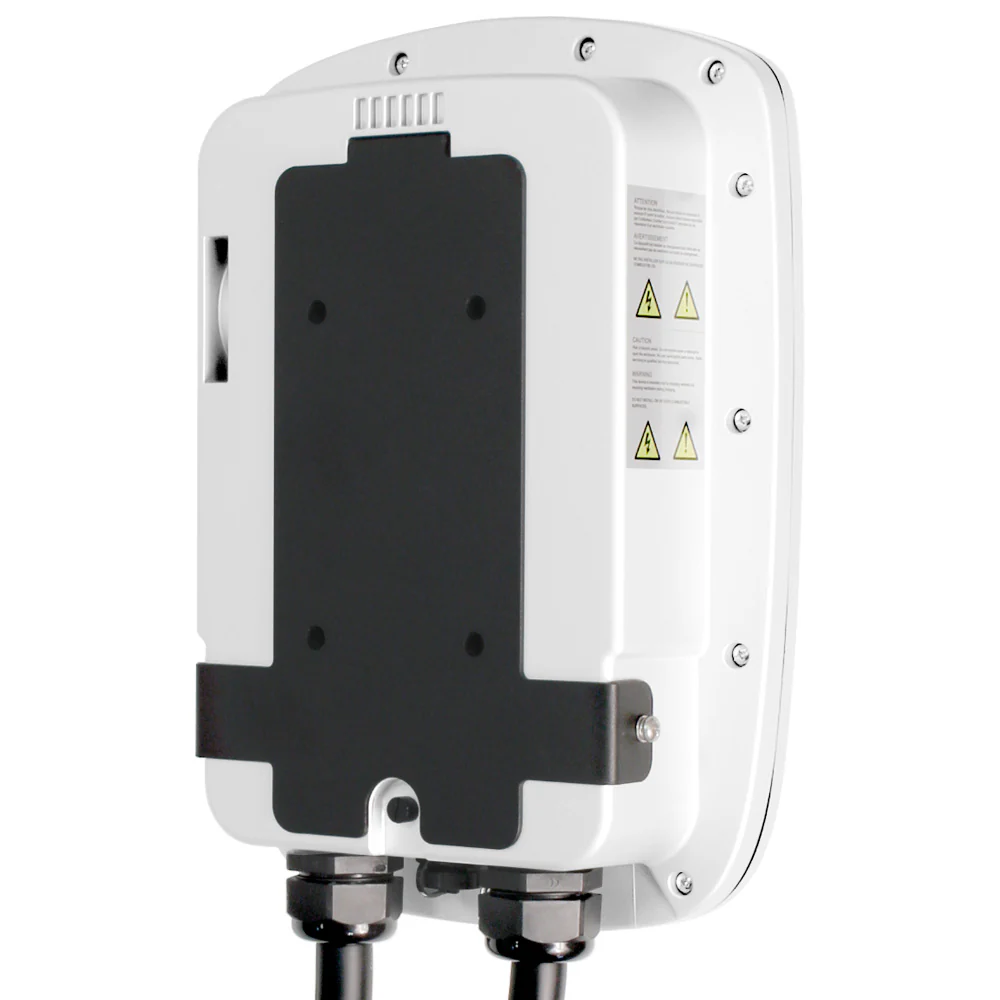

- EASY TO INSTALL – benefit from major times savings with a pre-attached input cable and included mounting hardware. Note this station is hardwired and requires a 40 Amp breaker

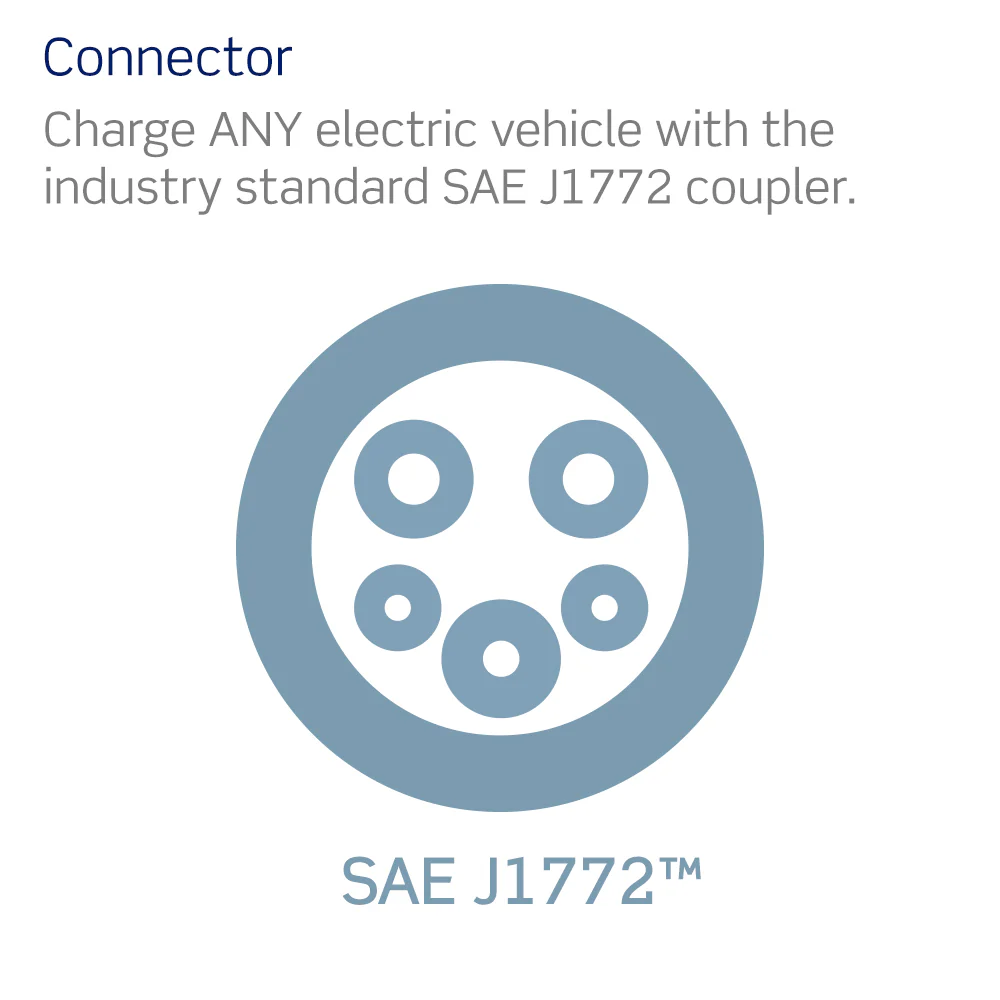

- CHARGE ANY ELECTRIC VEHICLE – with an industry standard SAE J1772™ cable, the EV Series can charge any EV, including Audi, BMW, Ford, Honda, Subaru, and even Tesla with a Tesla-supplied adapter
Technical Information
Electrical Specifications
Amperage: 32 A
Breaker: 40 A
Charge Connector Cord: #7 AWG SAE J1772
Number of Phase / Wire: L1, L2 and Ground, Bottom Feed
Operating Temperature: -30°C to 50°C
Output Power: 7.6kW
Short Circuit Current Rating: 20 mA CCID per UL 2231
Voltage: 208/240 VAC
Environmental Specifications
Altitude: Up to 6,500 ft. (2,000 m)
Charging Cable Operating Temperature: -22°F to +122°F (-30°C to +50°C)
Cooling: Natural Cooling
Operating Humidity: < 95% Relative Humidity, Non-Condensing
Material Specifications
Enclosure Material: Plastic (PC+PBT)
Enclosure Rating: NEMA Type 3R

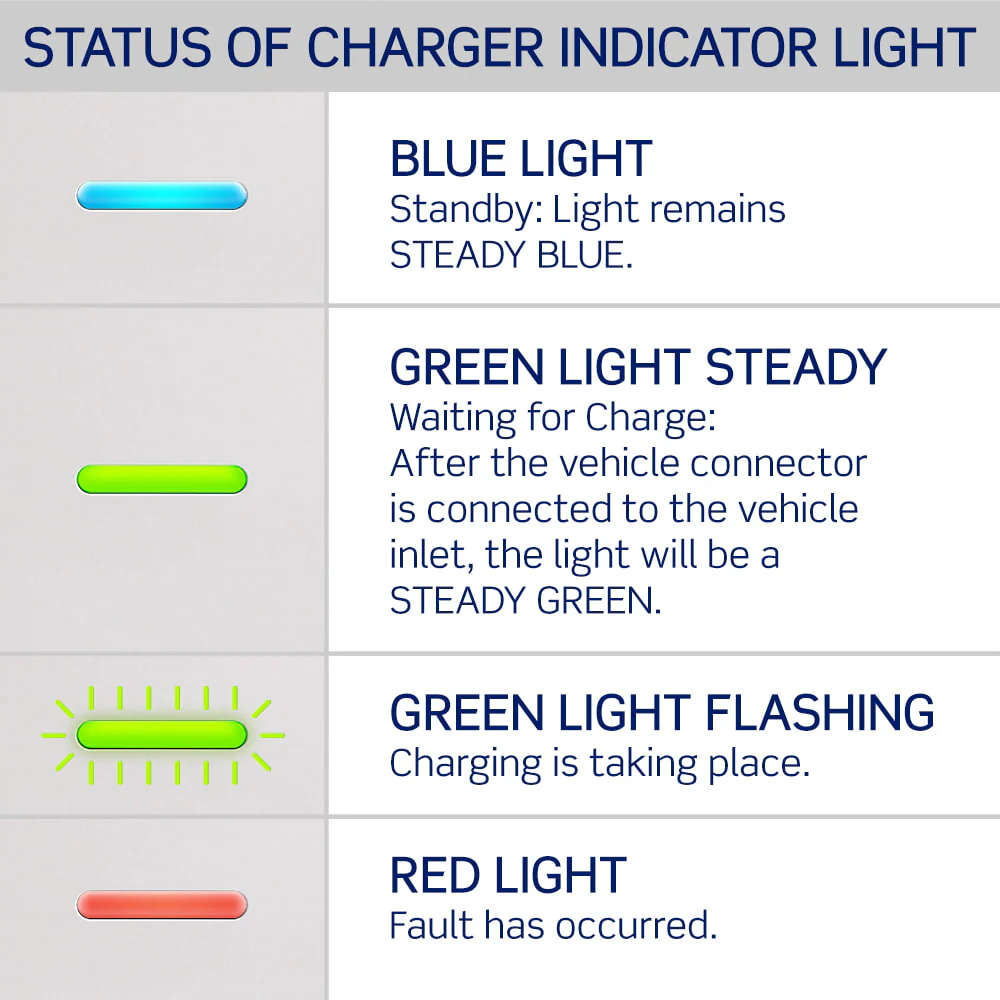

Status Indicator: Power Present, Charging, Fault
Mechanical Specifications
Cable Length: 18 ft. (5.5 m)
Product Features
Application: Home, Commercial
Cover Locking Mechanism: Phillips Head Screws, No Padlock Option
Device Type: Charger
Feature: My Leviton Enabled
Standards and Certifications
Standards and Certifications: UL2594, UL 2231-1, UL 2231-2, UL 2251, UL 62, UL 991, UL 1998, NFPA 70 Article 625, UL840, CSA Std. C22.2#280, OCPP 1.6 Compliant
Warranty
Warranty: 2-Year Limited
